Power Seats Schematics

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

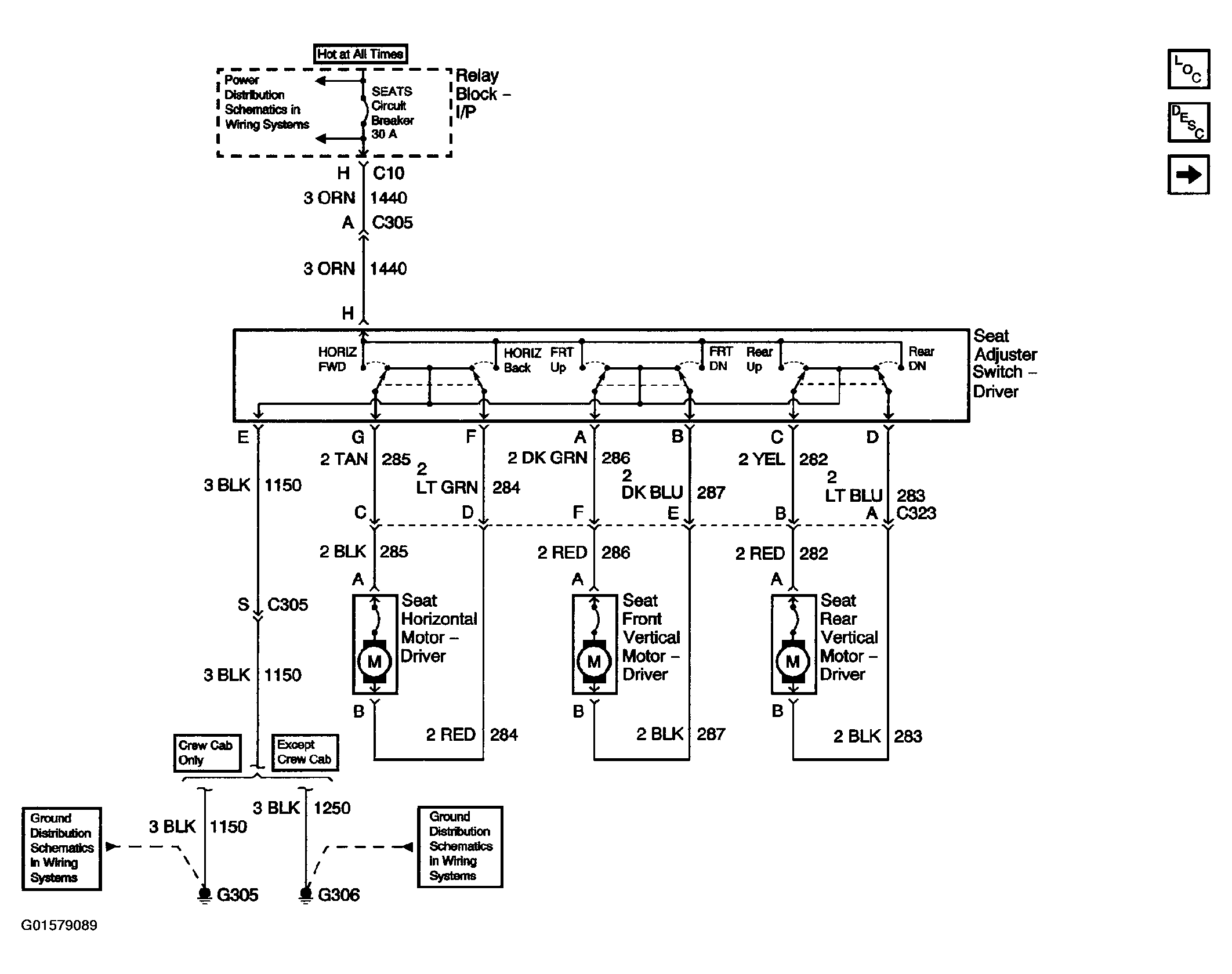

Fig 1: Power Seats Schematics (Driver Seat Controls-W/AG2)

Courtesy of GENERAL MOTORS CORP.

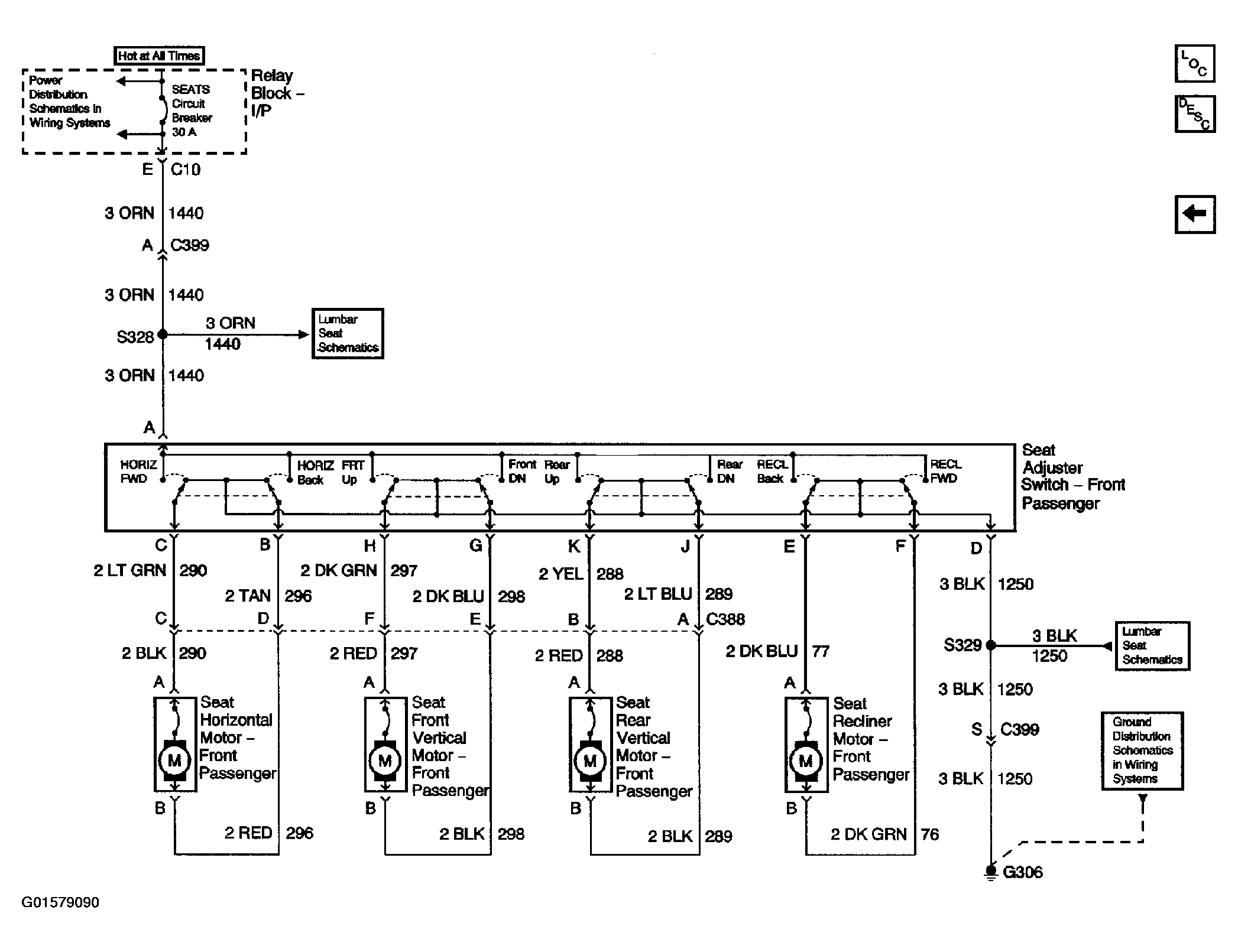

Fig 2: Power Seats Schematics (Front Passenger Seat Controls-W/AN3)

Courtesy of GENERAL MOTORS CORP.
