Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

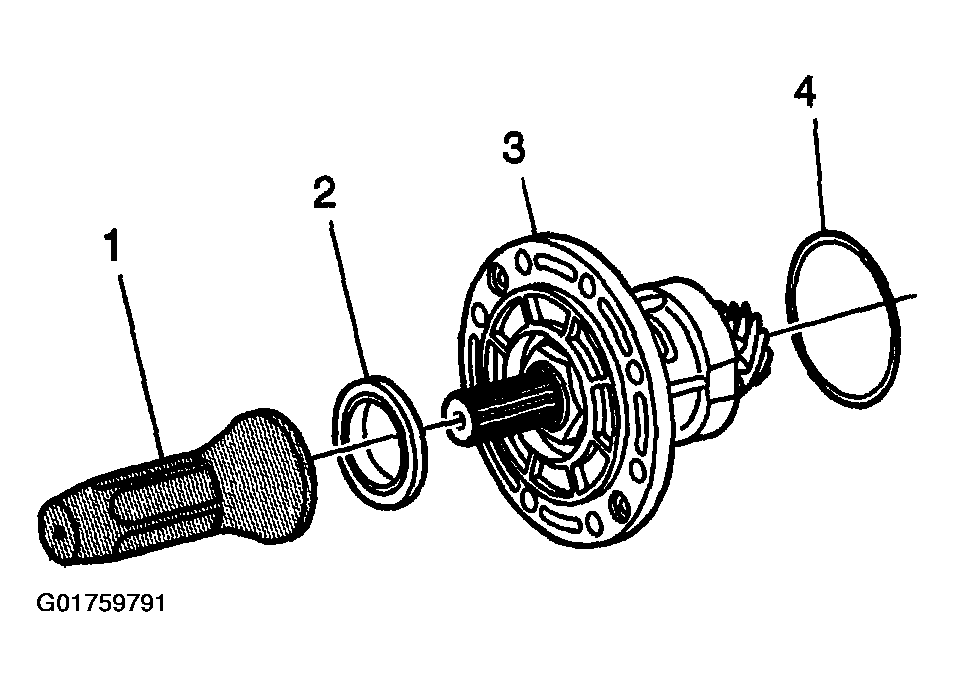

Fig 1: Using J 44915 Installing Oil Seal To Drive Pinion Housing

Courtesy of GENERAL MOTORS CORP.

Using the J 44915 , install a new oil seal (2) to the drive pinion housing.
Align the splines on the torque tube shaft to the differential pinion shaft.

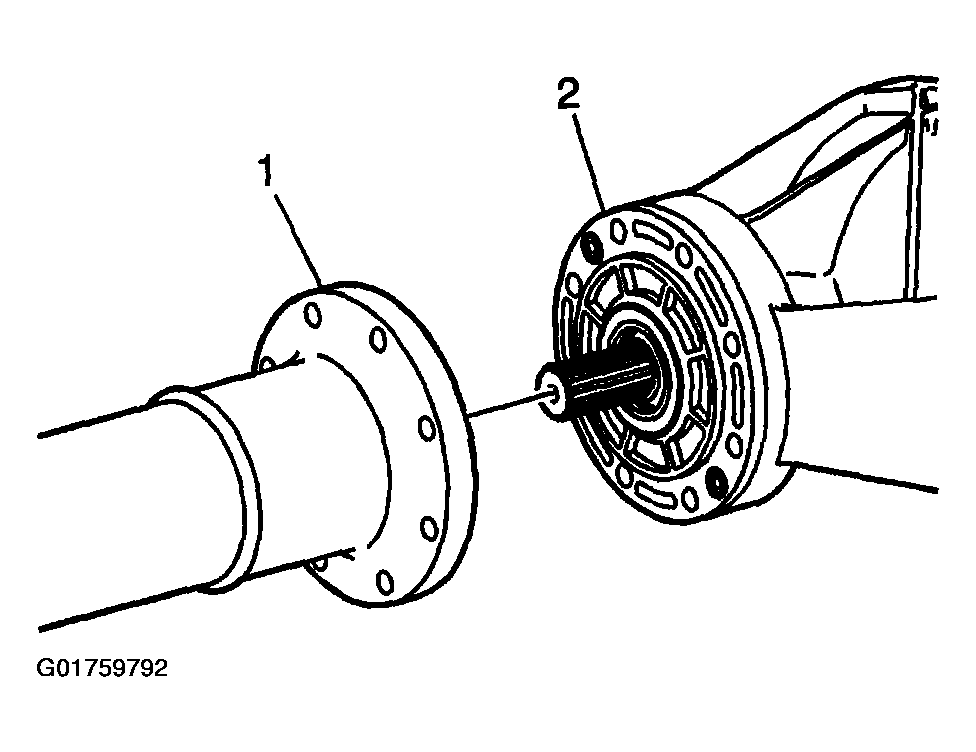

Fig 2: Installing Torque Tube To Differential
Courtesy of GENERAL MOTORS CORP.
Install the torque tube (1) to the differential (2).
NOTE: Refer to FASTENER NOTICE .

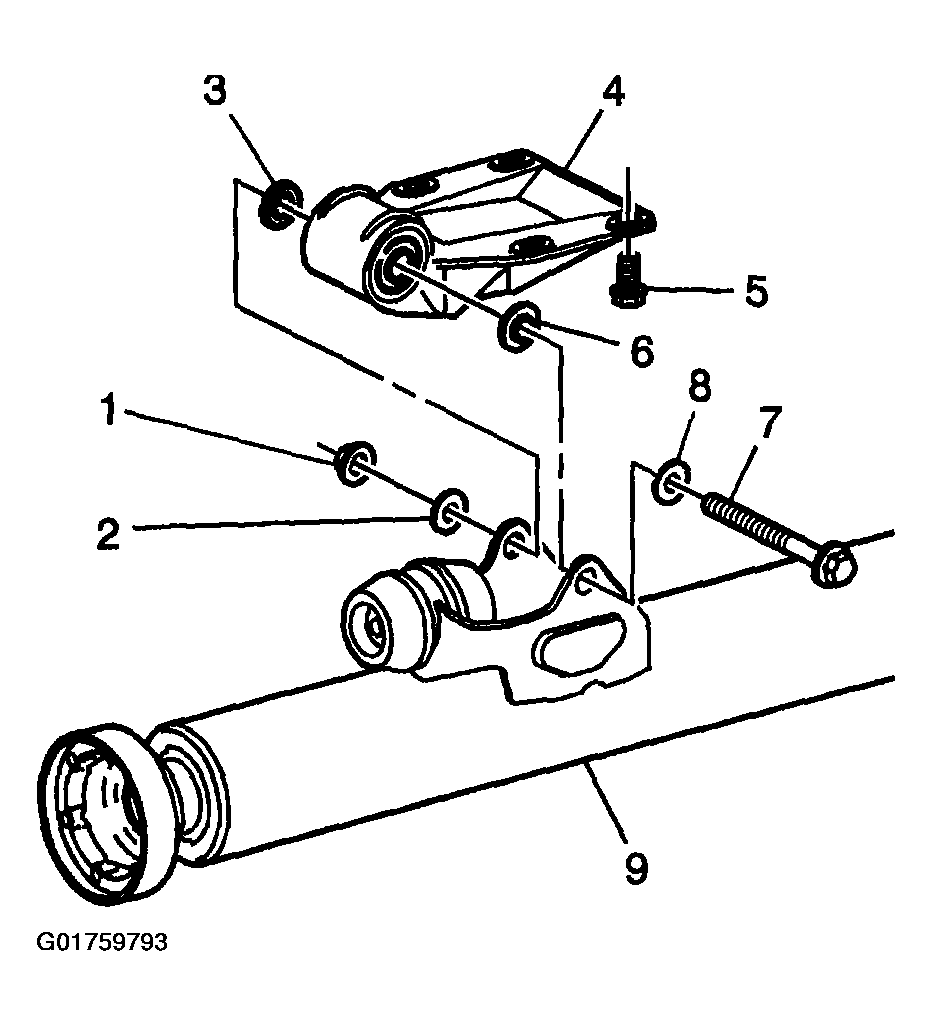

Fig 3: Installing Bolts To Torque Tube Bracket, Tightening Bolt Nut
Courtesy of GENERAL MOTORS CORP.
Install the bolts (5) to the torque tube bracket (4).
Tighten
- Tighten the torque tube bracket bolts to 55 N.m (41 lb ft).
- Tighten the torque tube-to-bracket through bolt nut (1) to 64 N.m (47 lb ft).
Install the torque tube-to-differential carrier bolts (1).

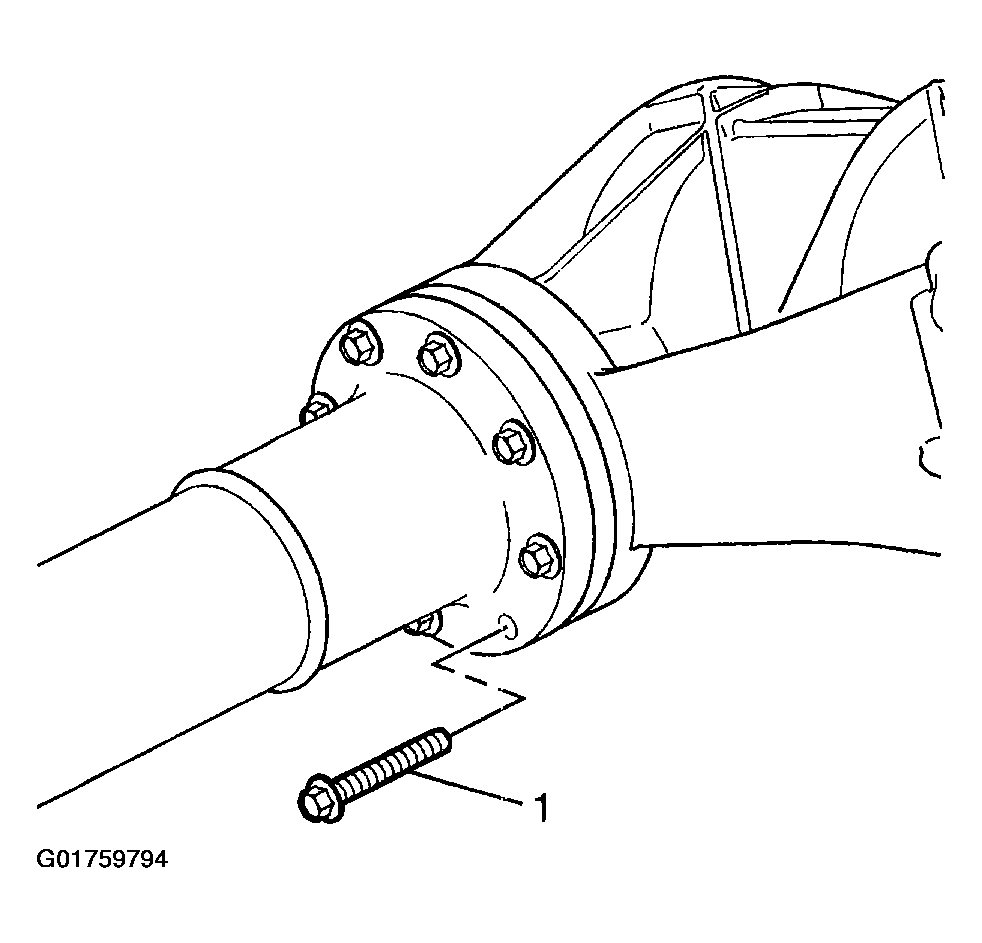

Fig 4: Installing Torque Tube-To-Differential Carrier Bolts
Courtesy of GENERAL MOTORS CORP.

Tighten Tighten the bolts to 25 N.m (18 lb ft).
Install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT .
Remove the jack stand from under the front of the rear differential.
Lower the vehicle.
