DTC P0571 (2.2L): Notes

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

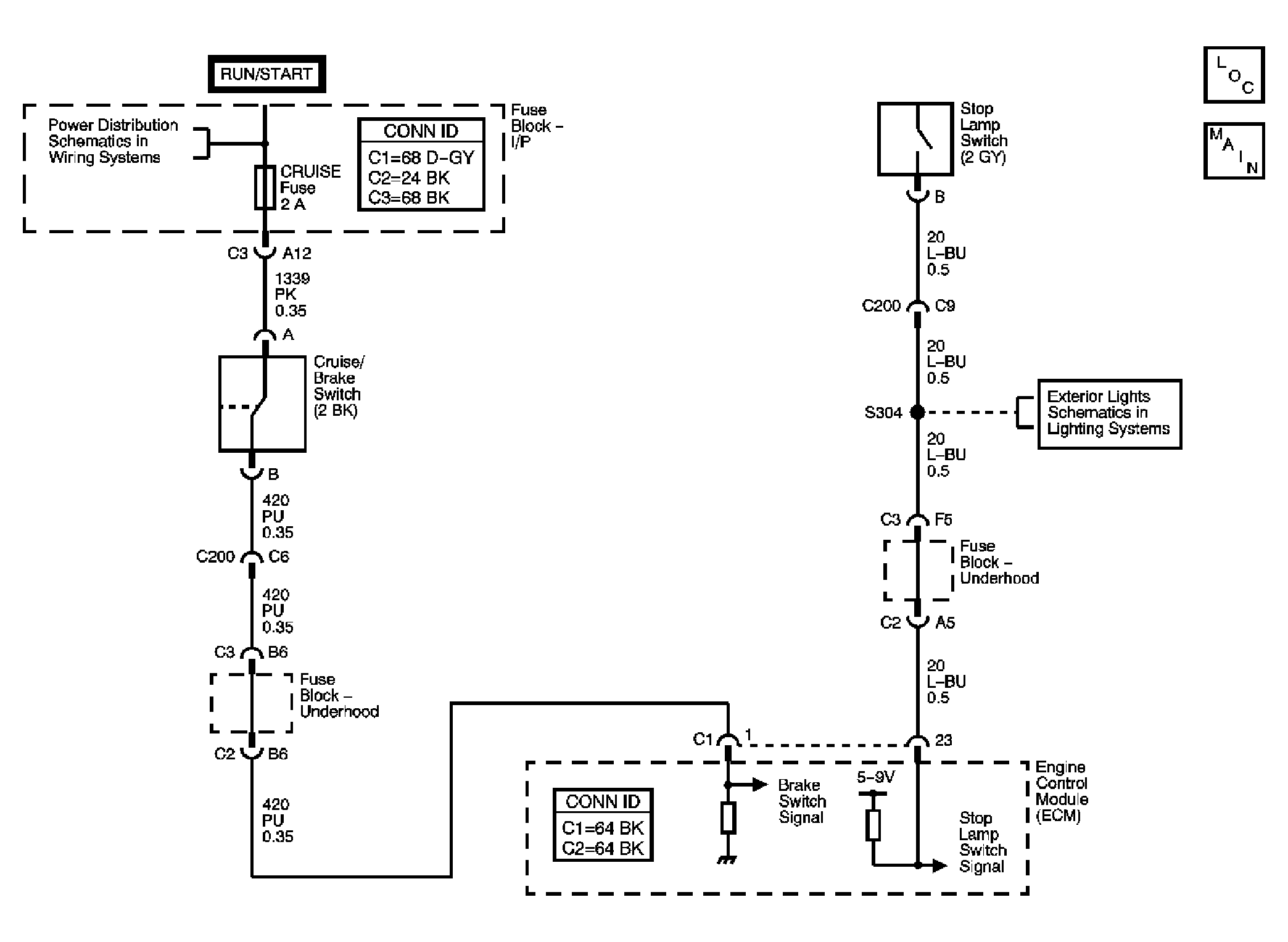

Fig 1: Cruise/Brake Switch Circuit (2.2L)

Courtesy of GENERAL MOTORS CORP.
