Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

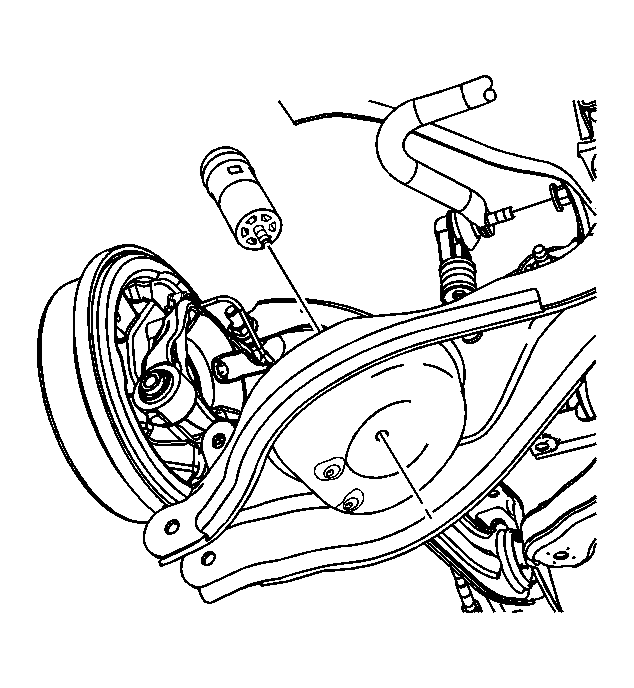

Fig 1: Jounce Bumper

Courtesy of GENERAL MOTORS CORP.

Install the jounce bumper to the lower control arm.
Hand tighten the jounce bumper nut.
Install the coil Spring. Refer to Coil Spring Replacement .

Fig 2: View Of Lower Suspension Jounce Bumper Nut

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Tighten the jounce bumper to lower control arm nut.
Tighten: Tighten the nut to 63 N.m (46 lb ft).
Lower the vehicle.
Check the rear alignment. Refer to Measuring Wheel Alignment .
