Front Door Frame Applique Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

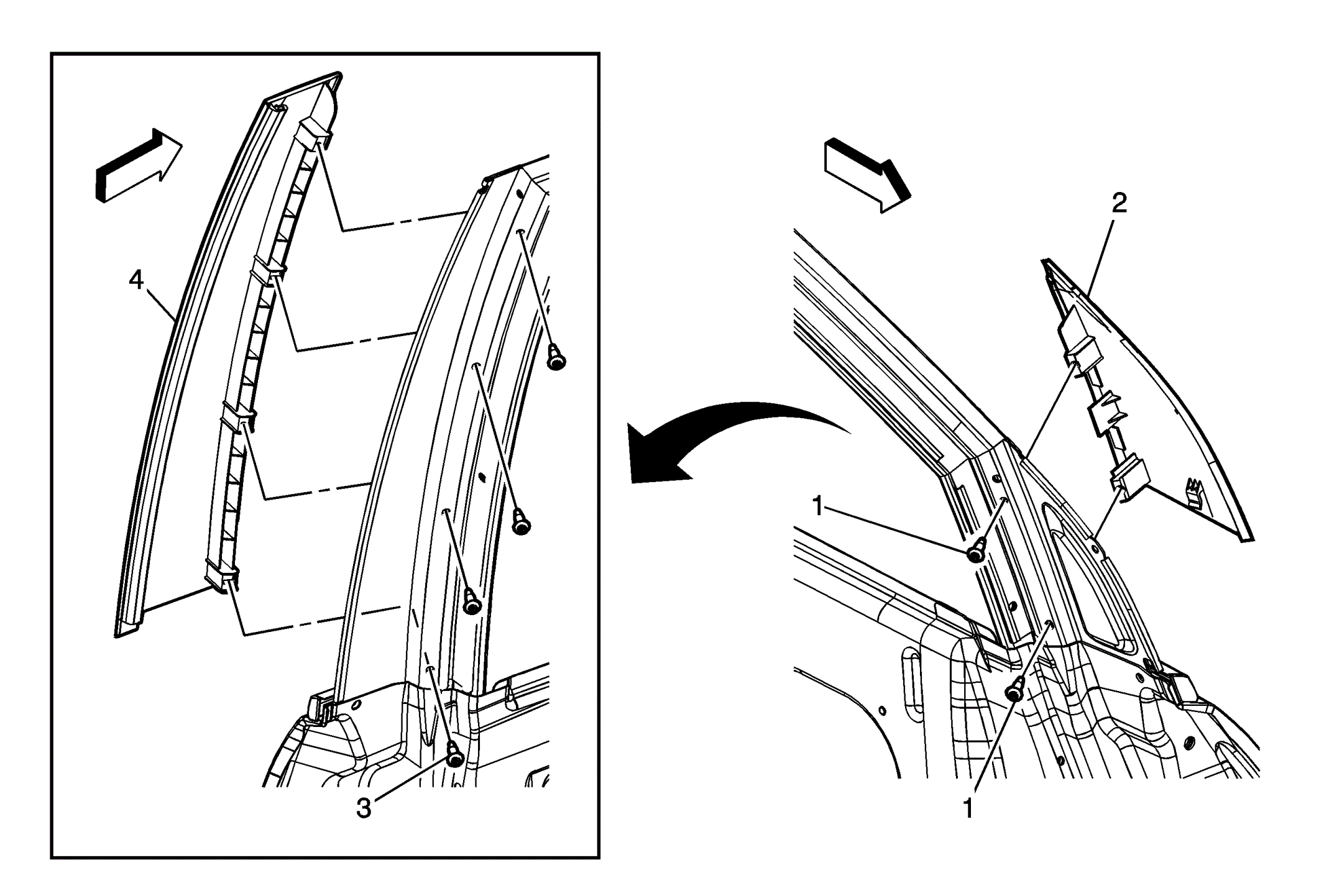

Fig 1: Front Door Frame Applique

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Door Frame Applique Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Apply masking tape to the door frame and applique. Loosen the primary door weatherstrip in the front to expose the front screws. Place the front door window in the full down position. Tighten: 1.5 N.m (13 lb in)
2	Front Door Frame Applique
3	Front Door Rear Frame Applique Screw (Qty: 4) Procedure Apply masking tape to the door frame and applique. Pull the window channel weatherstrip from the applique to expose the screws. Tip: Place the front door window in the full down position. Tighten: 1.5 N.m (13 lb in)
4	Front Door Rear Frame Applique Tip: Pull the applique up and away from the outer seal weatherstrip.
