Liftgate Center Applique Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

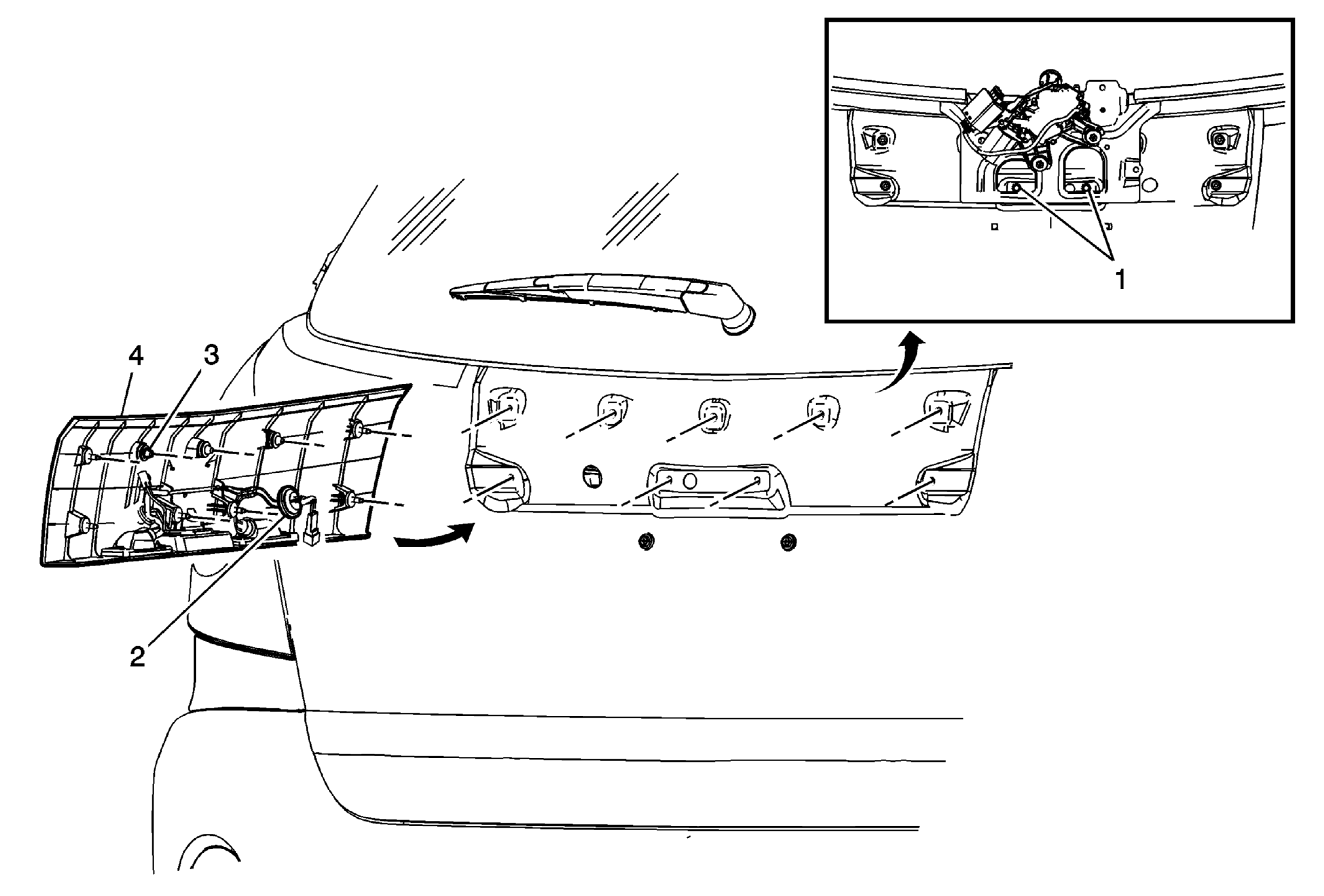

Fig 1: Liftgate Center Applique

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the interior liftgate trim panel. Refer to Liftgate Trim Panel Replacement . Disconnect the electrical connector for the license plate lamps. Disengage the electrical harness grommet from the outer liftgate panel.
1	Rear Liftgate Upper Applique Nut (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 4 N.m (35 lb in)
2	Electrical Harness Grommet
3	Retainer (Qty: 3) Tip: Carefully release the upper retainers, replace as needed.
4	Rear Liftgate Applique Panel Procedure: Transfer parts as needed to the new applique panel.
