Rear Spoiler Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

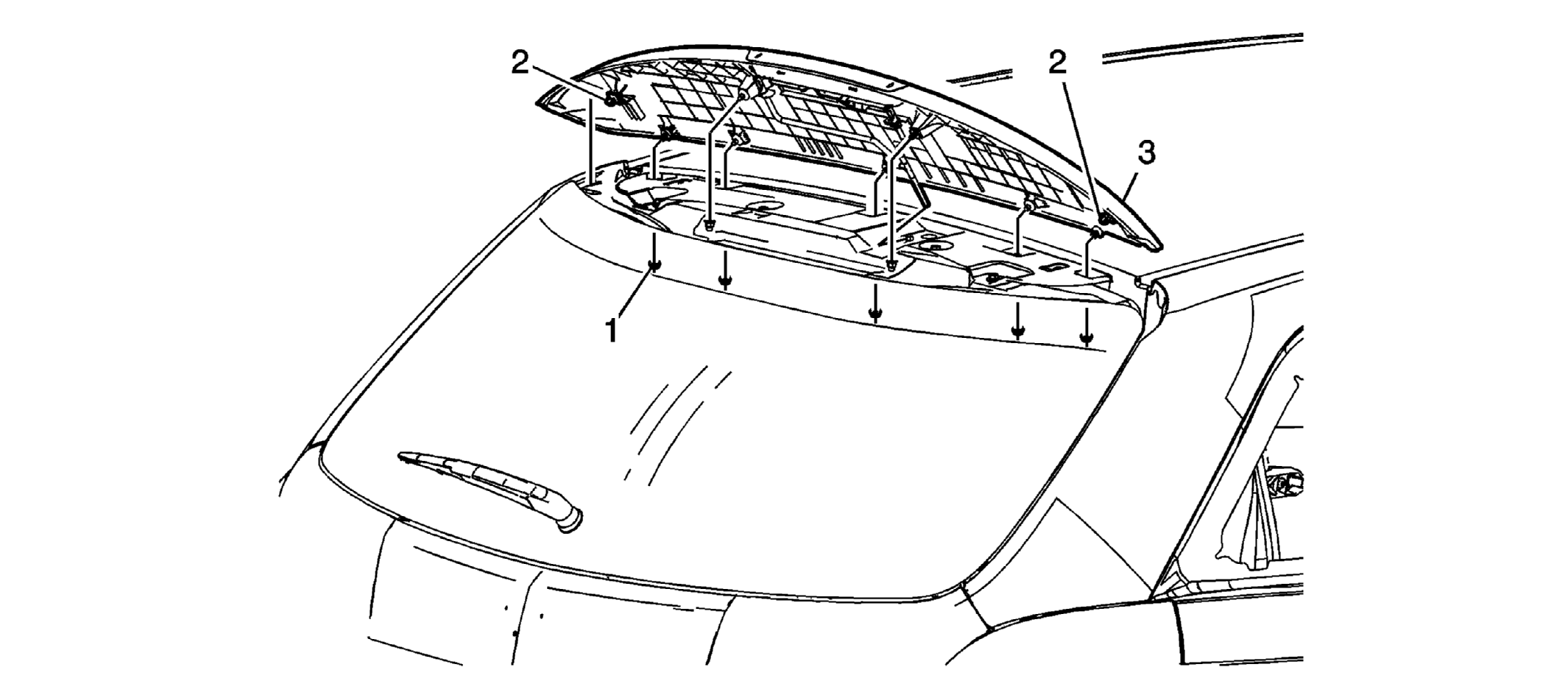

Fig 1: Rear Spoiler

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open and support the rear liftgate assembly. Remove the liftgate window garnish molding. Refer to Liftgate Garnish Molding Replacement .
1	Spoiler Nut (Qty: 7) CAUTION: Refer to Fastener Caution . Tighten: 4 N.m (35 lb in)
2	Button Nose Clip (Qty: 2)
3	Rear Spoiler Procedure Release the button clips from the upper outer liftgate panel. Close the rear liftgate in order to remove the spoiler assembly. Disconnect the rear washer hose. Disconnect the electrical connector for the rear high mounted stop lamp. Remove the rear center high mounted stop lamp. Refer to High Mount Stop Lamp Replacement and transfer. Ensure all the foam gaskets are in place on the button clips and retainer bolts prior to re-assembly of the spoiler onto the liftgate panel.
