Windshield Name Decal Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

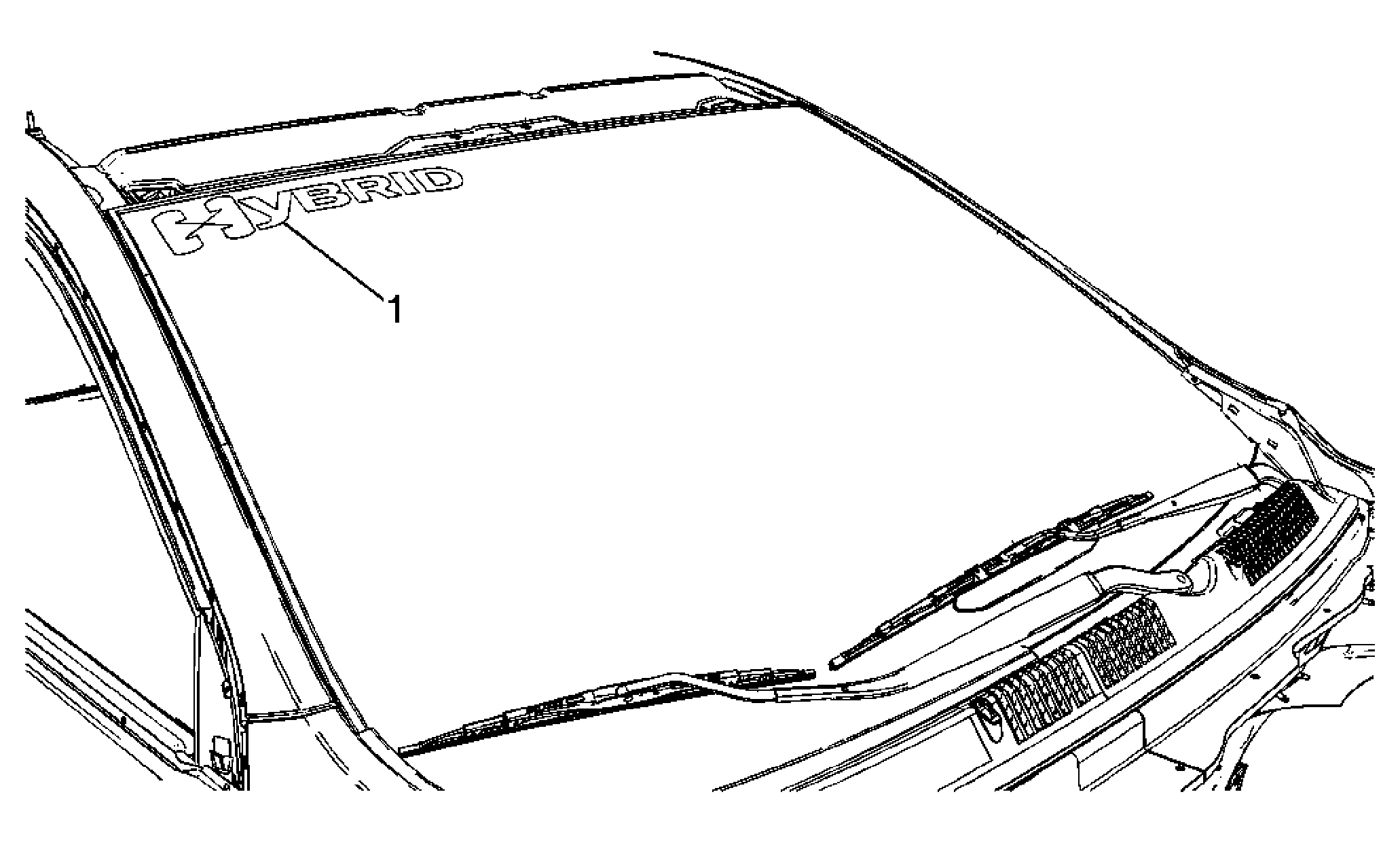

Fig 1: Windshield Name Decal Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Heat the windshield name decal using a J-25070: gun or equivalent, 152 mm (6 in) from the glass surface. Apply the heat using a circular motion, for about 30 seconds. CAUTION: Refer to Exterior Trim Emblem Removal Caution . Remove the decal from the surface using a plastic, flat-bladed tool. Remove all adhesive from the surface using a 3M™ Scotch Brite molding adhesive remover disk, 3M™ P/N 07501, or equivalent. Clean the surface using 3M™ General Purpose Adhesive Cleaner, P/N 08984 or equivalent. Special Tools: J-25070: Heat Gun 500-750°F
1	Windshield Name Decal Tip: The windshield name decal is serviced as one part.

Callout

Component Name

Preliminary Procedures

Heat the windshield name decal using a J-25070: gun or equivalent, 152 mm (6 in) from the glass surface.
Apply the heat using a circular motion, for about 30 seconds.

CAUTION: Refer to Exterior Trim Emblem Removal Caution .

Remove the decal from the surface using a plastic, flat-bladed tool.
Remove all adhesive from the surface using a 3M™ Scotch Brite molding adhesive remover disk, 3M™ P/N 07501, or equivalent.
Clean the surface using 3M™ General Purpose Adhesive Cleaner, P/N 08984 or equivalent.

Special Tools: J-25070: Heat Gun 500-750°F

Windshield Name Decal
Tip: The windshield name decal is serviced as one part.
