Front Floor Console Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

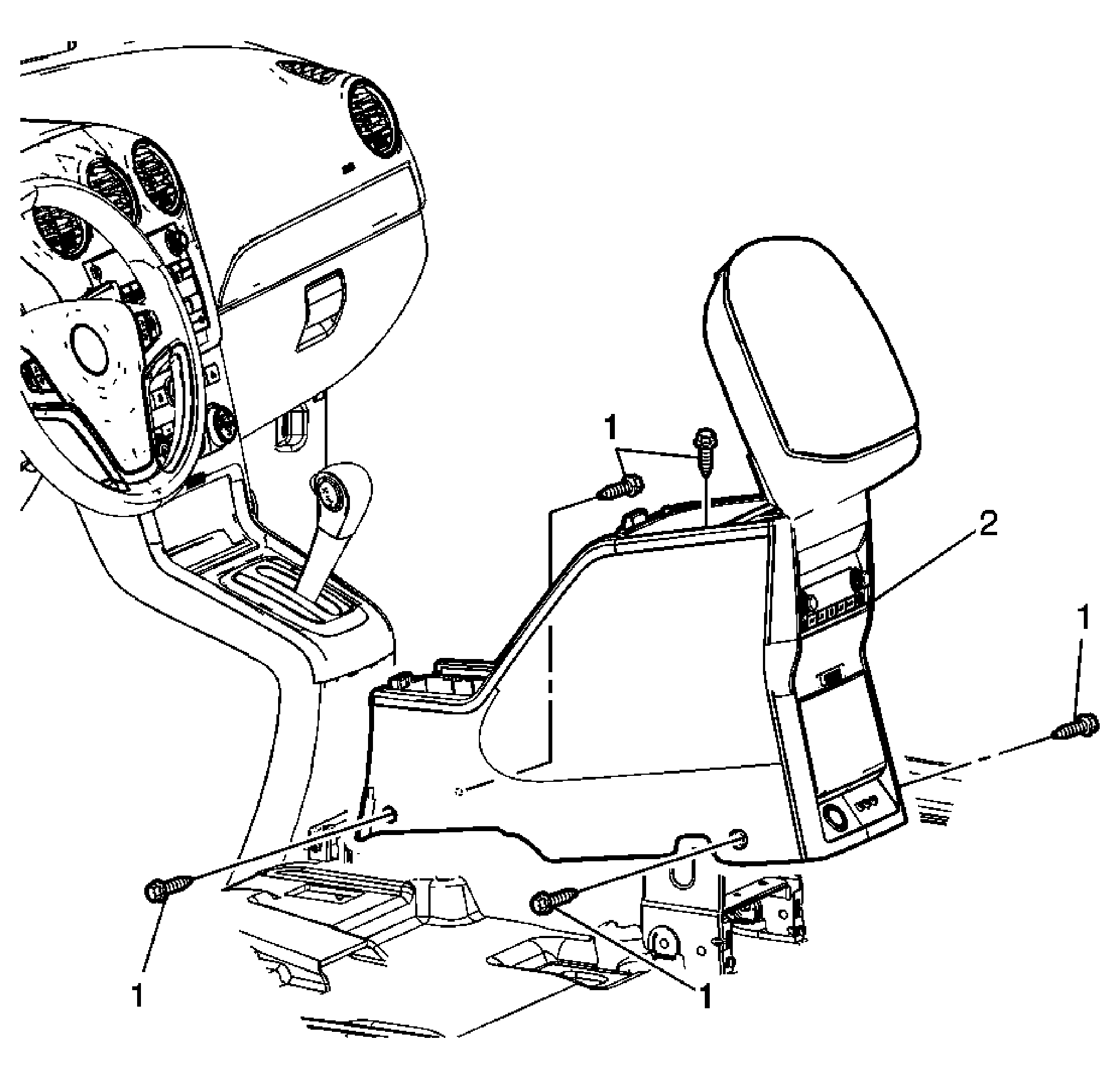

Fig 1: Front Floor Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement . Remove the front floor console front cover replacement. Refer to Front Floor Rear Console Front Cover Replacement . Remove the front seats. Refer to Front Seat Replacement - Bucket .
1	Front Floor Console Bolt (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Front Floor Console Assembly Procedure Disconnect the electrical connections. When replacing the front floor console, transfer all necessary components.

Callout

Component Name

Preliminary Procedures

Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .
Remove the front floor console front cover replacement. Refer to Front Floor Rear Console Front Cover Replacement .
Remove the front seats. Refer to Front Seat Replacement - Bucket .

Front Floor Console Bolt (Qty: 5)

CAUTION: Refer to Fastener Caution .

Tighten: 8 N.m (71 lb in)

Front Floor Console Assembly

Procedure

Disconnect the electrical connections.
When replacing the front floor console, transfer all necessary components.
