Roof Console Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

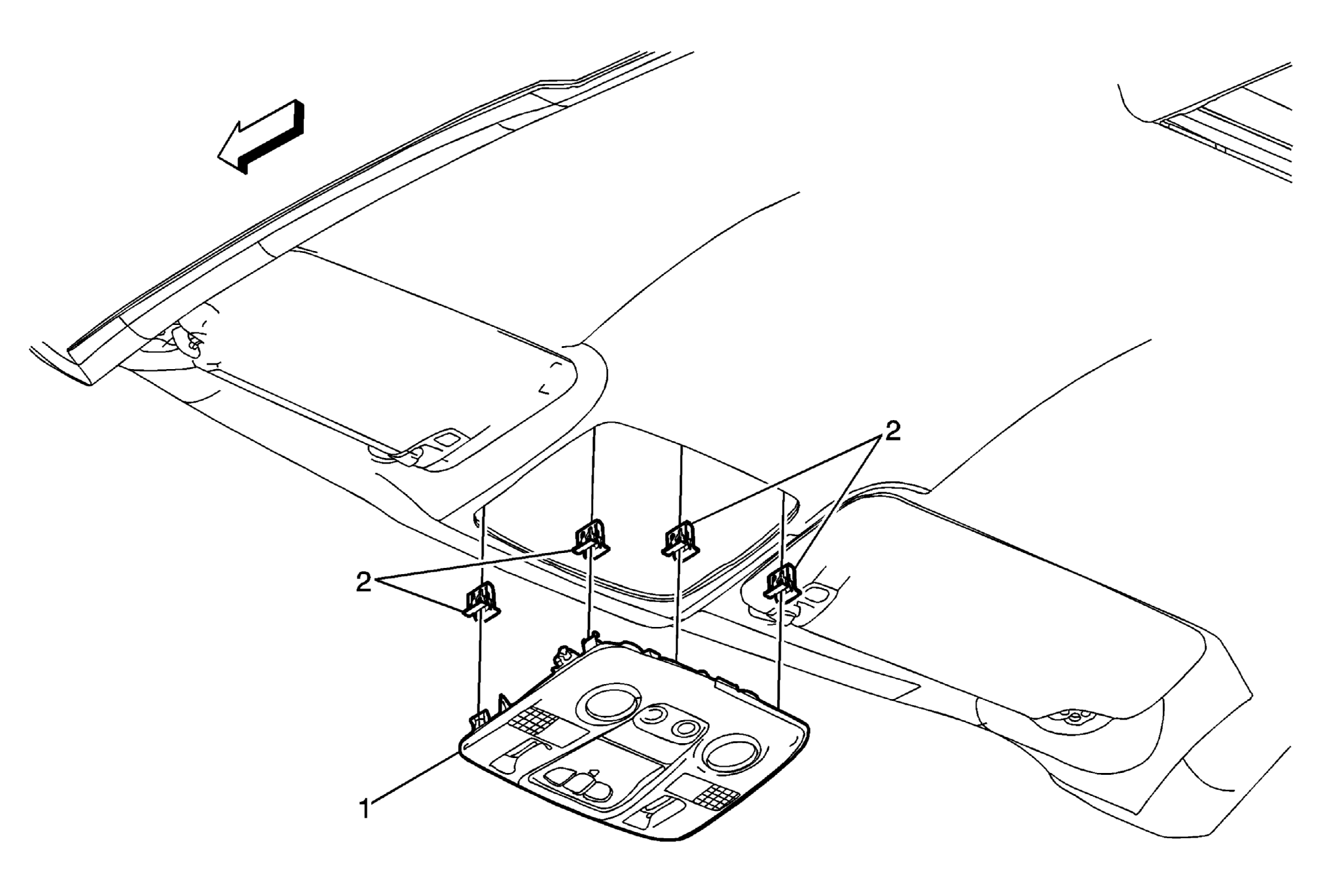

Fig 1: Identifying Roof Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Console Assembly Procedure Use a flat-bladed tool on the bezel to release the tabs and gently pull down to remove the roof console. Disconnect the electrical connectors. If replacing the roof console assembly, transfer all necessary components. Uplevel console shown, all others similar and are removed in the same manner.
2	Roof Console Retainer (Qty: 4)

Callout

Component Name

Roof Console Assembly

Procedure

Use a flat-bladed tool on the bezel to release the tabs and gently pull down to remove the roof console.
Disconnect the electrical connectors.
If replacing the roof console assembly, transfer all necessary components.
Uplevel console shown, all others similar and are removed in the same manner.

Roof Console Retainer (Qty: 4)
