Air Conditioning Refrigerant Temperature Sensor Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

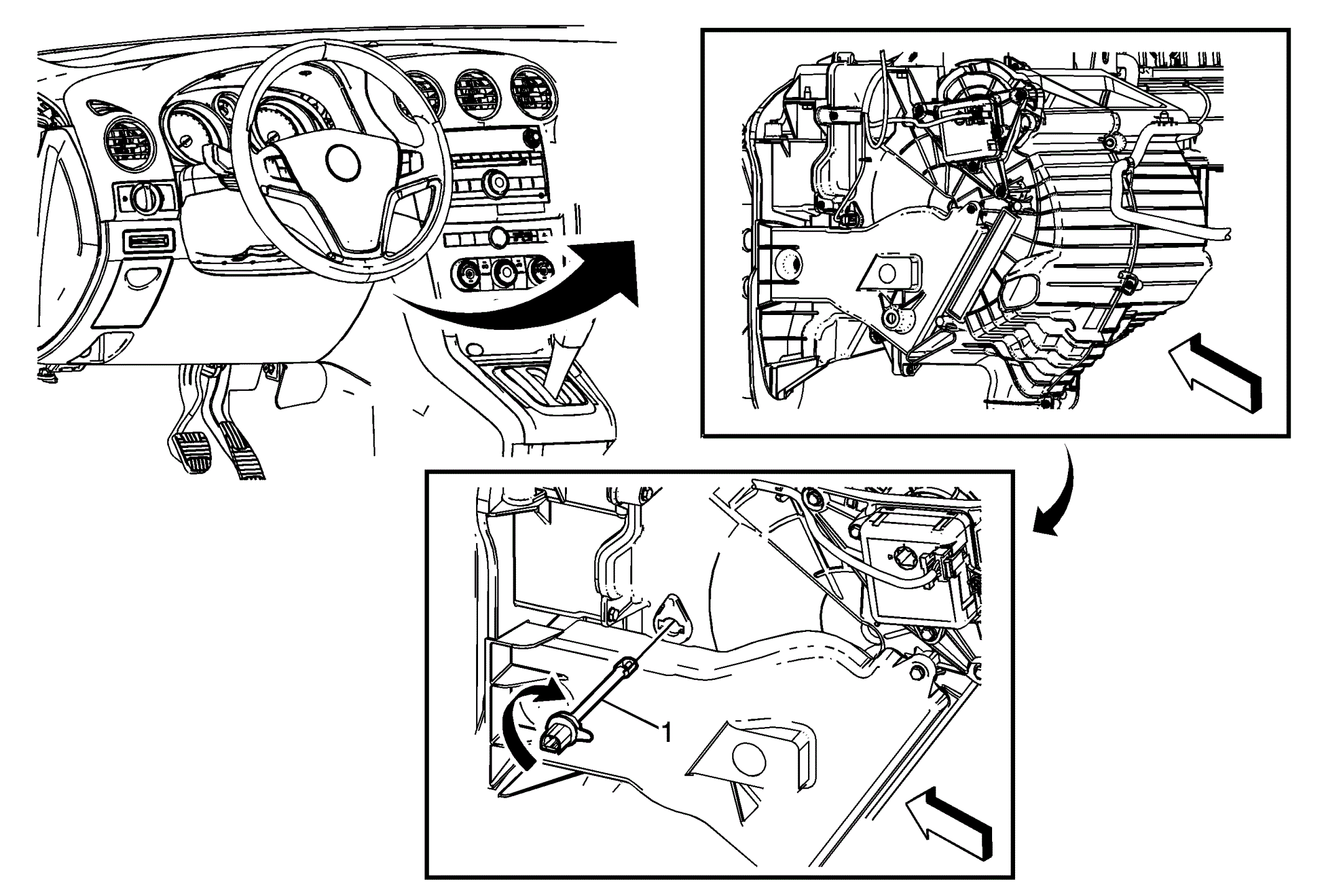

Fig 1: Air Conditioning Refrigerant Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement .
1	A/C Refrigerant Temperature Sensor Procedure Disconnect wiring harness from sensor. Release tab and rotate sensor clockwise to remove.

Callout

Component Name

Preliminary Procedure:
Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement .

A/C Refrigerant Temperature Sensor

Procedure

Disconnect wiring harness from sensor.
Release tab and rotate sensor clockwise to remove.
