Removal & Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Remove passenger side trunk trim. See TRUNK TRIM PANELS .
Remove fasteners securing remote CD changer mounting bracket to rear compartment. Disconnect electrical connector from remote CD changer. See Fig 1.
Remove fasteners securing remote CD changer to mounting bracket. Separate remote CD changer from bracket to remove. See Fig 2.
To install, reverse removal procedure. Tighten remote CD changer mounting bolts to 18 INCH Lbs. (2 N.m). Tighten remote CD changer bracket bolts to 80 INCH Lbs. (9 N.m).

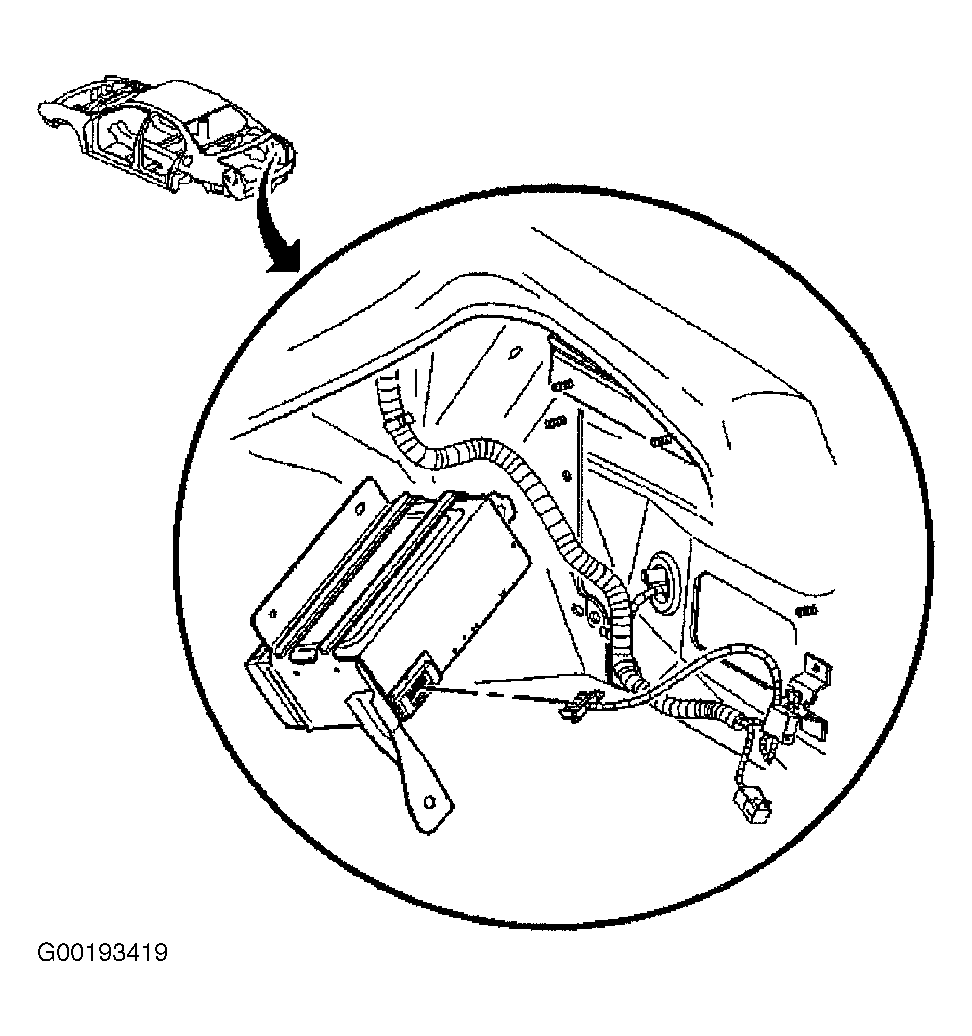

Fig 1: Removing Remote CD Changer Bracket From Trunk

Courtesy of GENERAL MOTORS CORP.

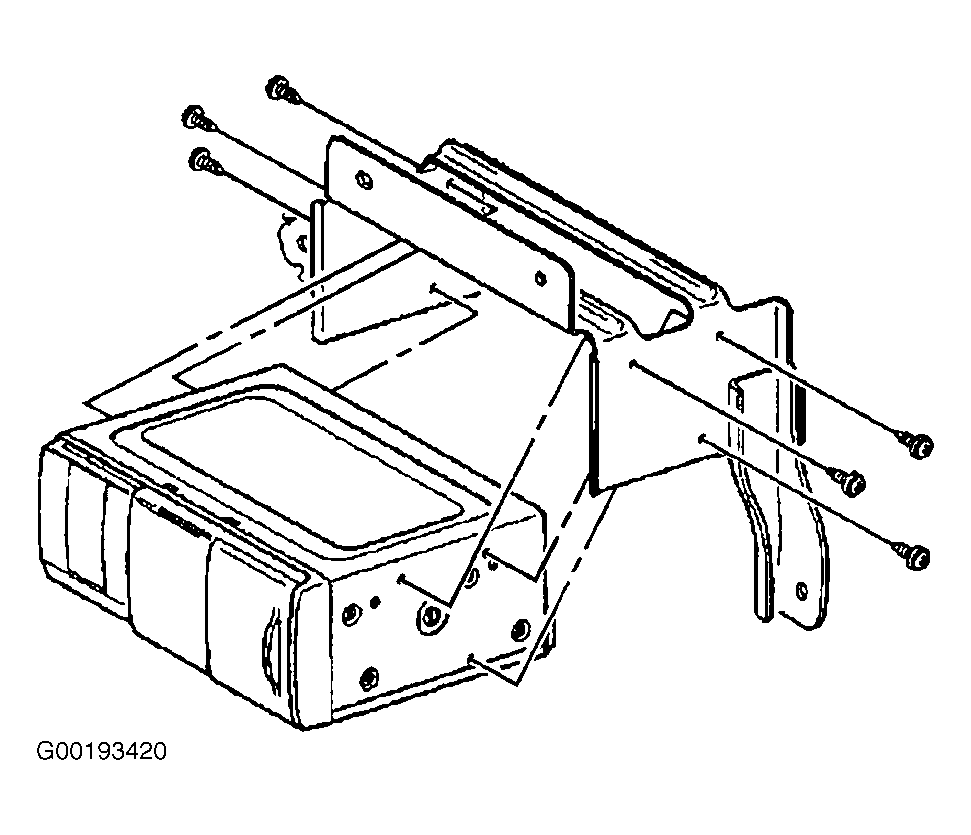

Fig 2: Removing Remote CD Changer From Bracket

Courtesy of GENERAL MOTORS CORP.
