Connector Identification

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Pressure Sensor Harness Connectors Terminals

G00194572

Courtesy of GENERAL MOTORS CORP.

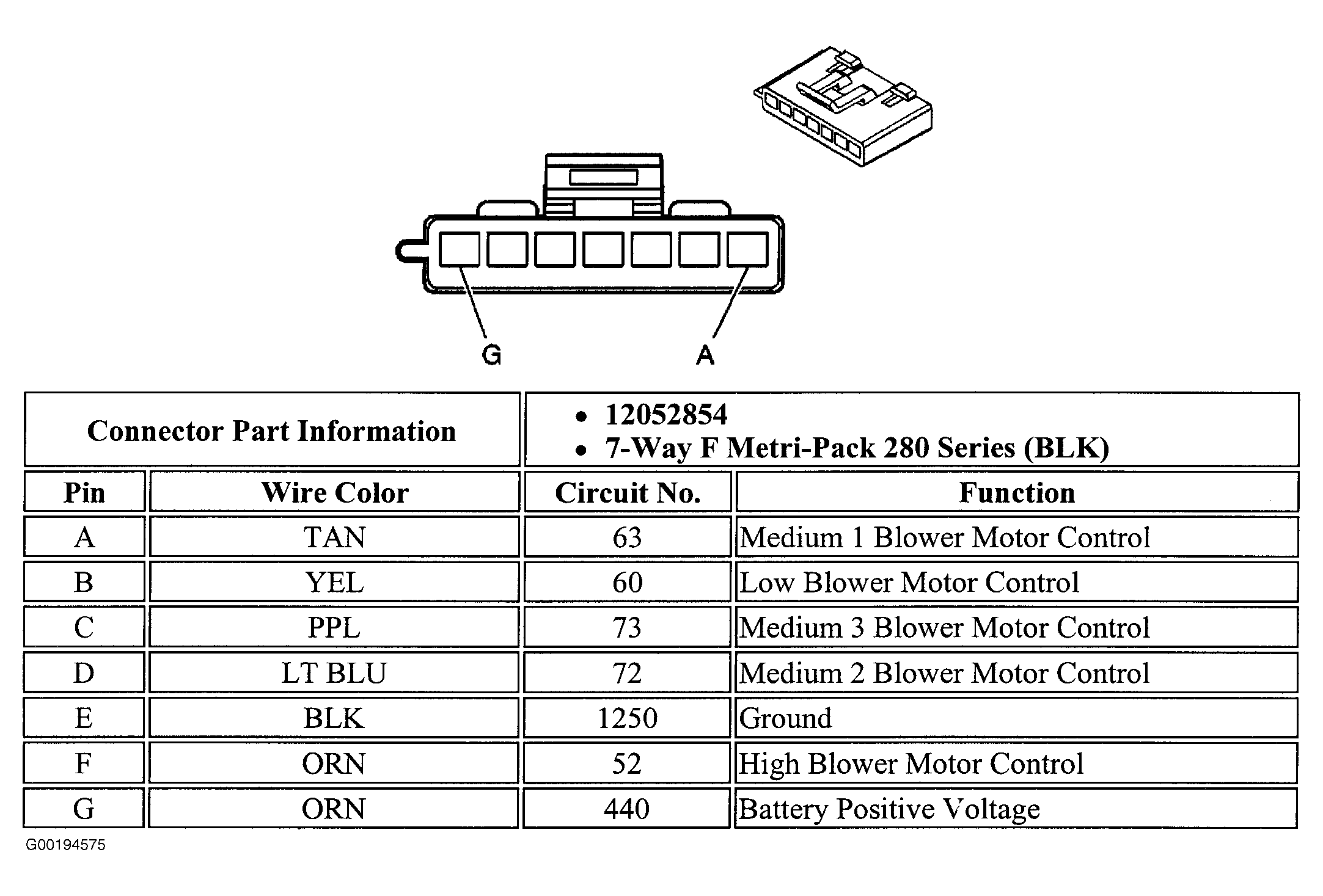

Fig 2: Identifying Blower Motor Resistor Harness Connector Terminals

G00194575

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying HVAC Control Assembly Harness Connector Terminals

G00194576

Courtesy of GENERAL MOTORS CORP.

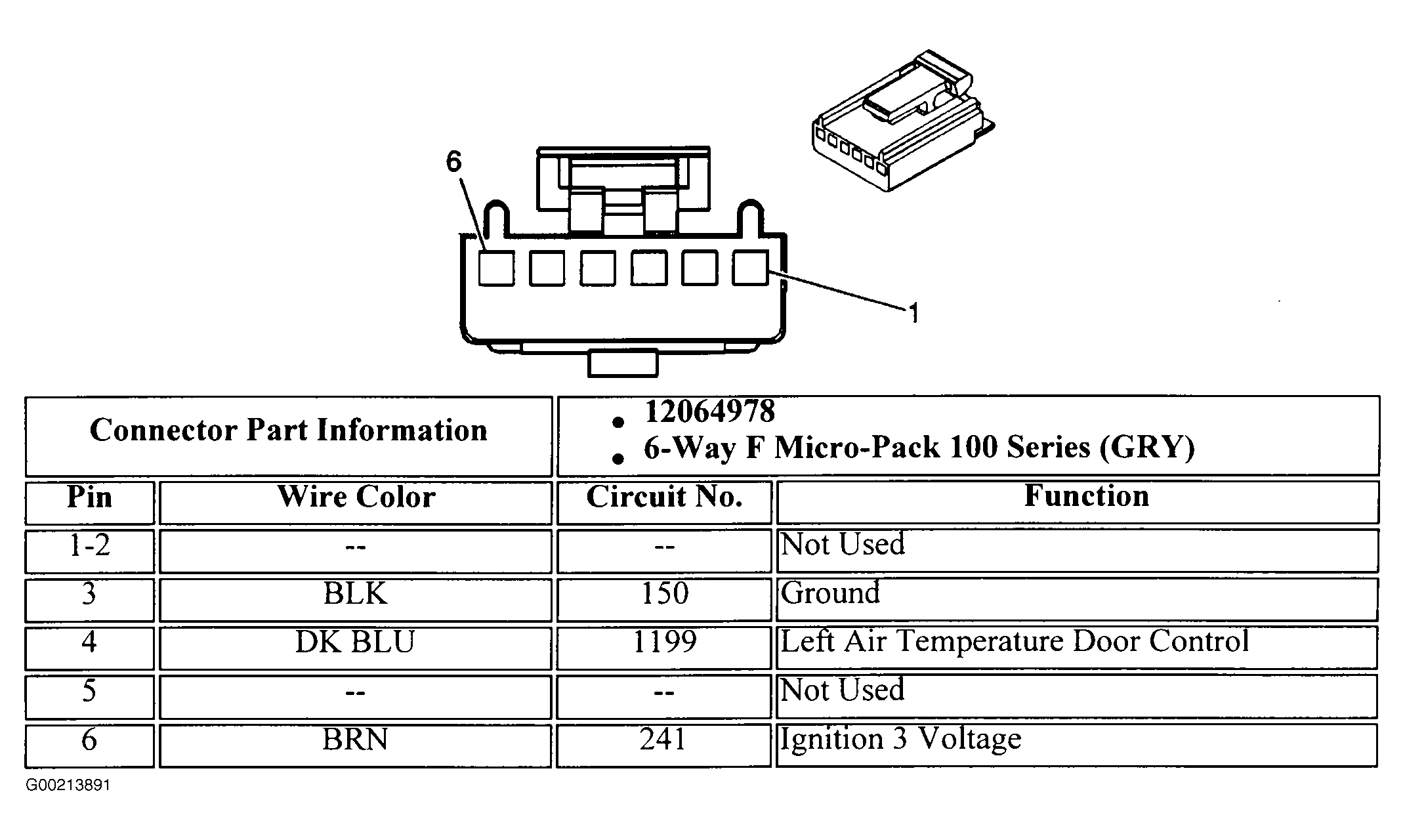

Fig 4: Identifying Left Air Temperature Actuator Electrical Connector Terminals

G00213891

Courtesy of GENERAL MOTORS CORP.

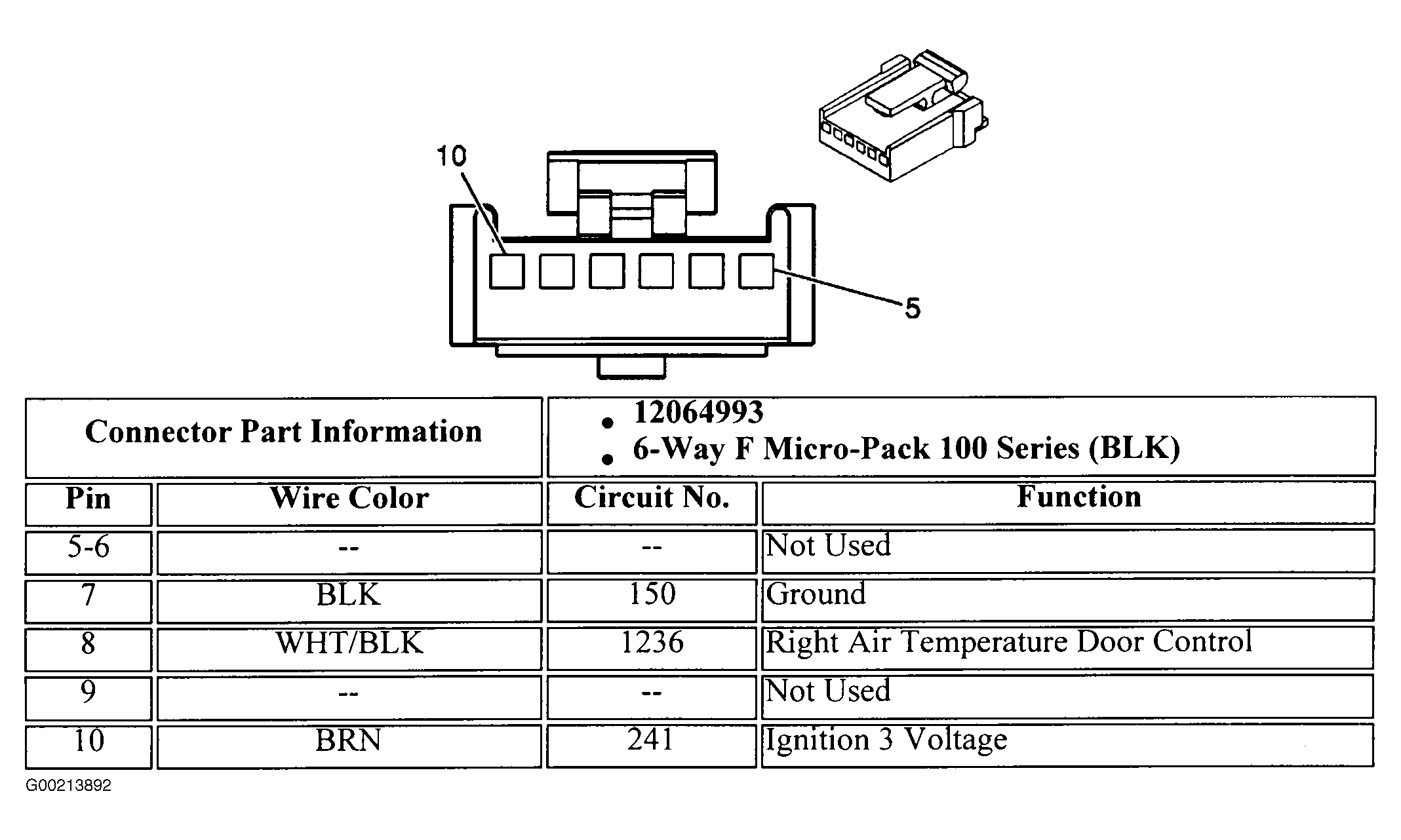

Fig 5: Identifying Right Air Temperature Actuator Harness Connector Terminals

G00213892

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying HVAC Control Module Harness Connector Terminals

G00213893

Courtesy of GENERAL MOTORS CORP.

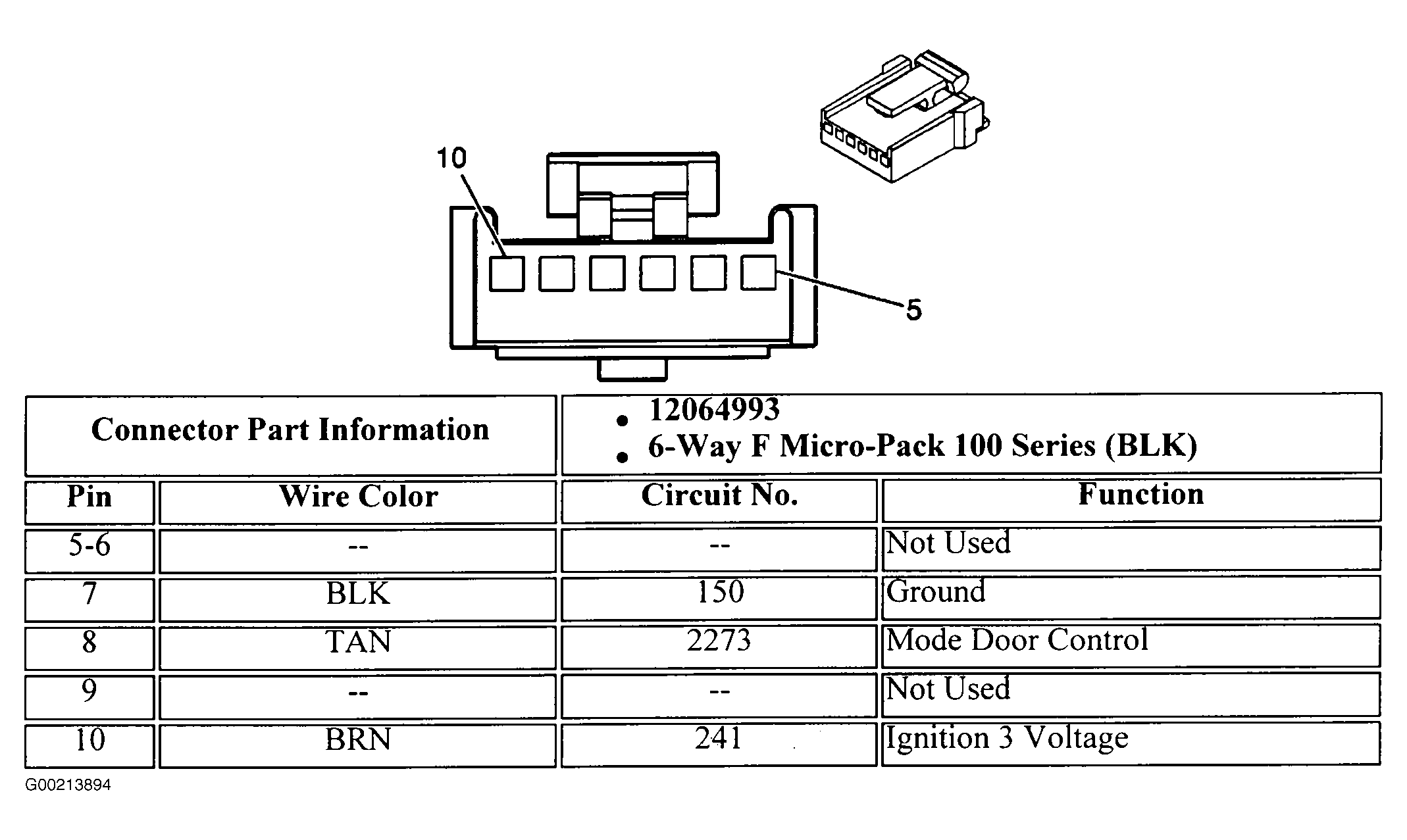

Fig 7: Identifying Mode Actuator Harness Connector (CJ3) Terminals

G00213894

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Recirculation Actuator Harness Connector Terminals

G00213895

Courtesy of GENERAL MOTORS CORP.
