Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front bumper fascia deflector. Refer to Front Bumper Fascia Deflector Replacement - Side .
Disconnect the electrical connector from the front fog lamp assembly.

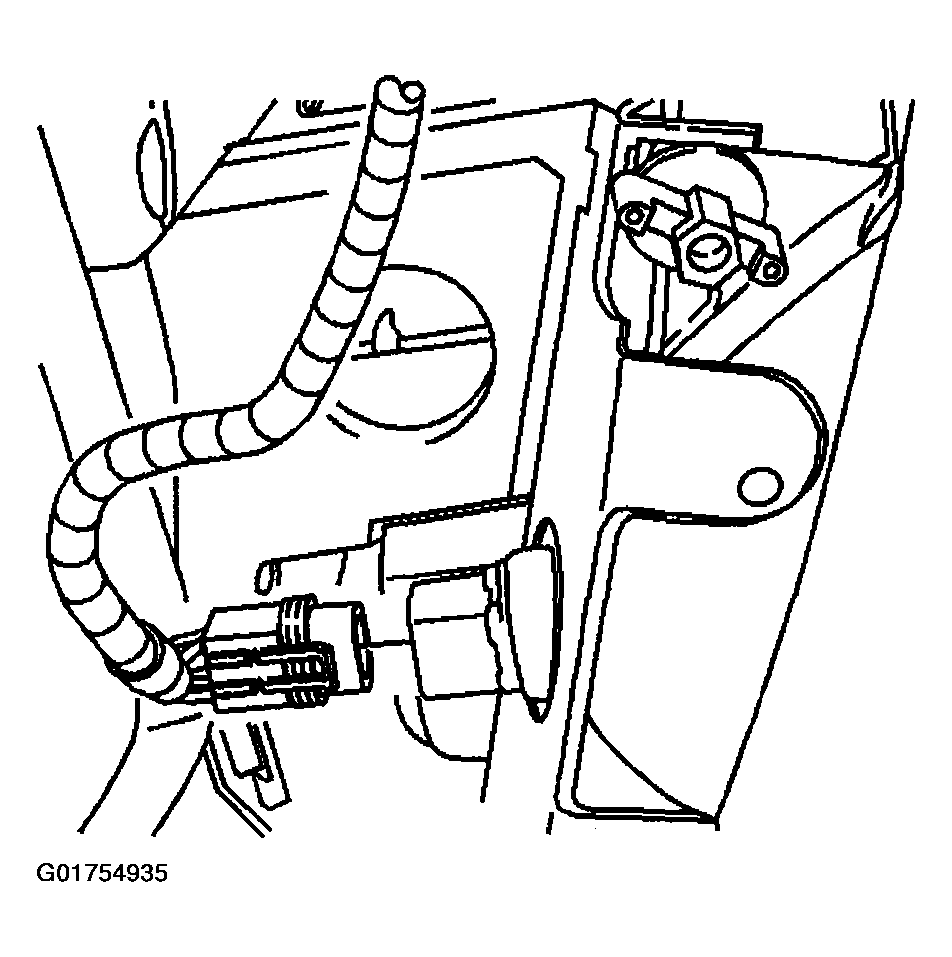

Fig 1: Identifying Front Fog Lamp Assembly Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the fog lamp bulb/socket from the fog lamp by rotating counterclockwise.

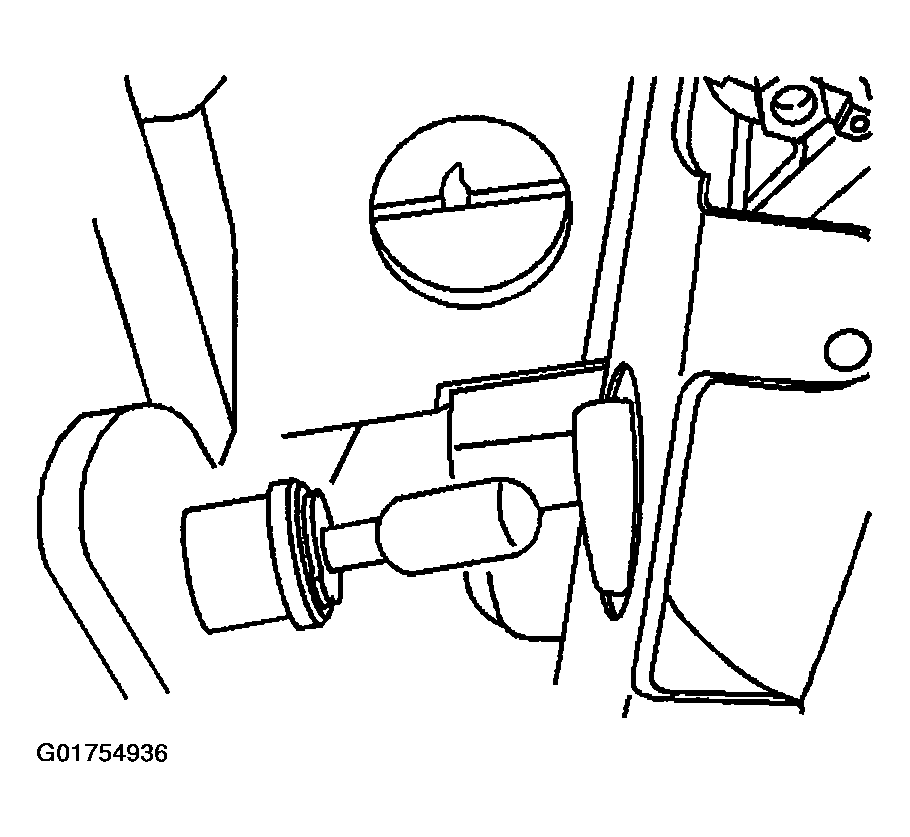

Fig 2: Removing Fog Lamp Bulb/Socket From Fog Lamp
Courtesy of GENERAL MOTORS CORP.
Remove the front fog lamp nuts from the front bumper impact bar.
Remove the front fog lamp assembly from the vehicle.

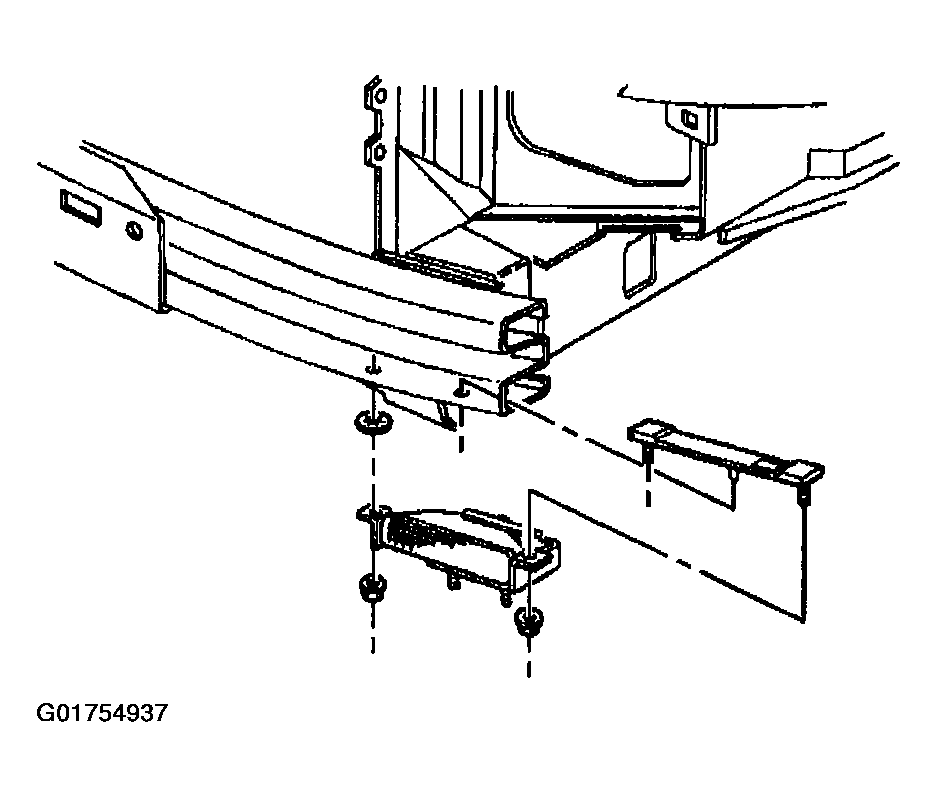

Fig 3: Identifying Front Fog Lamp Assembly
Courtesy of GENERAL MOTORS CORP.
