Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Install the brake pressure modulator valve (BPMV) bracket (1) to the frame (3).
CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
Install the 3 BPMV bracket to frame bolts (2).
Tighten

Tighten the 3 bolts to 9 N.m (80 in lbs).

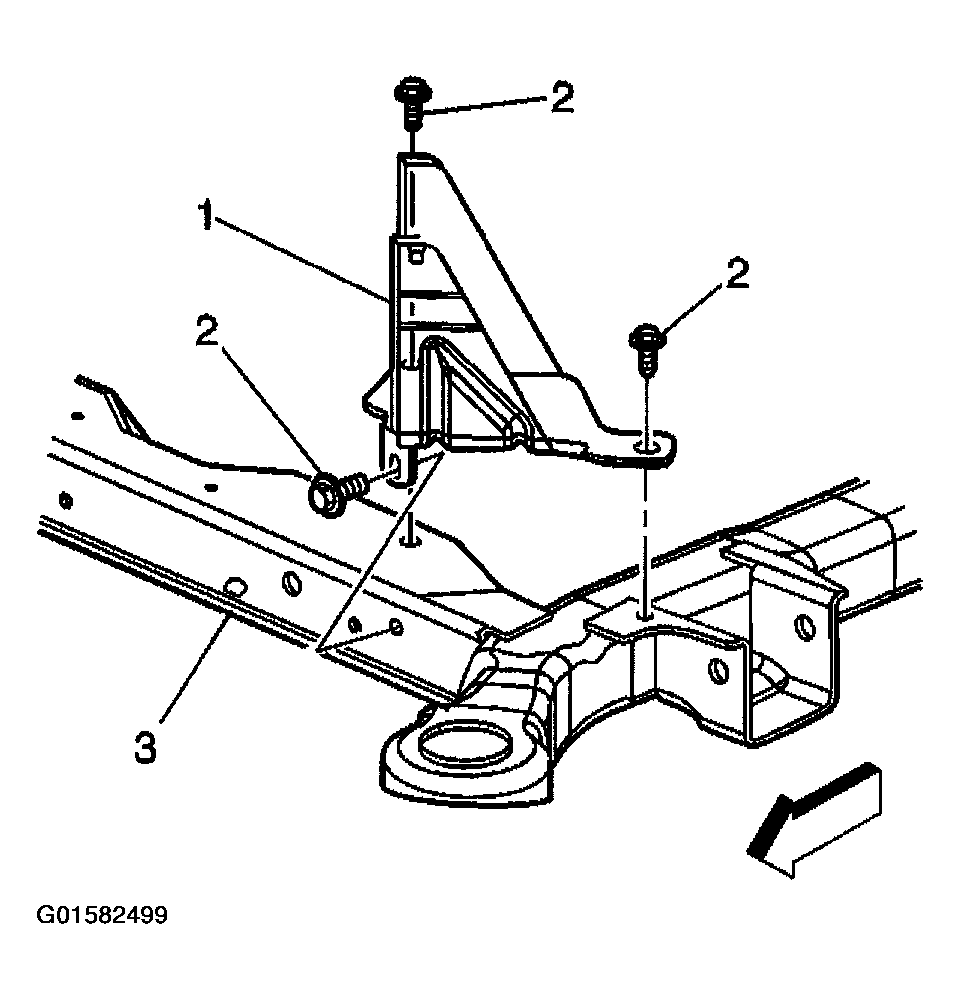

Fig 1: Installing 3 BPMV Bracket To Frame Bolts
Courtesy of GENERAL MOTORS CORP.
Install the electronic brake control module (EBCM)/BPMV assembly (1) to the BPMV bracket (3).
Install the 2 BPMV bracket nuts (2).
Tighten

Tighten the 2 nuts to 10 N.m (89 in lbs).

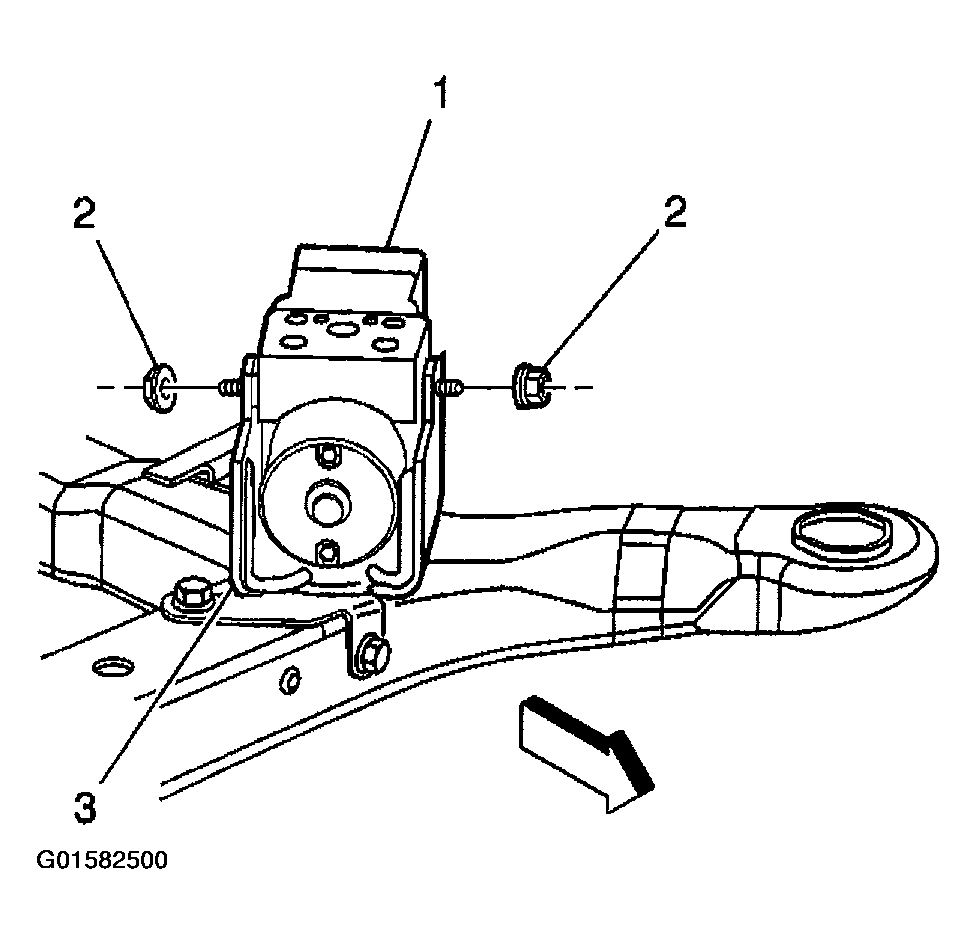

Fig 2: Installing 2 BPMV Bracket Nuts
Courtesy of GENERAL MOTORS CORP.
Install the left front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT -- FRONT in Bumpers.
Install the front air deflector. Refer to AIR DEFLECTOR REPLACEMENT -- FRONT in Body Front End.
Install the left front tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tire and Wheels.
Lower the vehicle.
