Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster trim plate bezel.
  2. Remove the instrument panel storage tray.
  3. Remove the accessory switch assembly from the instrument panel.
  4. Remove the screws from the HVAC control assembly.
  5. Remove the HVAC control assembly, with the following procedure:
    1. 5.1. Release the retaining tabs.
    2. 5.2. Pull the control head out of the instrument panel carrier.
  6. Disconnect the electrical connectors from the HVAC control assembly.

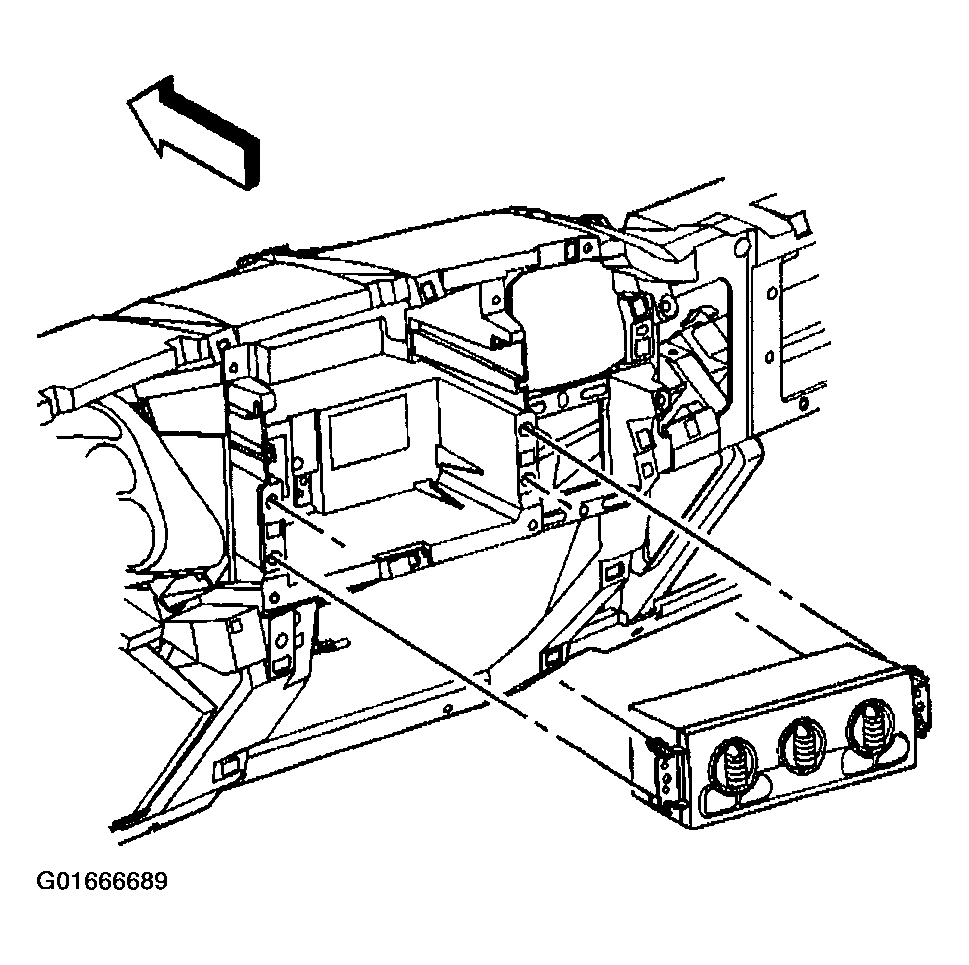

    Fig 1: HVAC Control Assembly
    G01666689Courtesy of GENERAL MOTORS CORP.
