Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radio.
Remove the heater control assembly.
Disconnect the temperature control cable from the heater/ventilation module.
Remove the temperature control cable from the IP carrier.

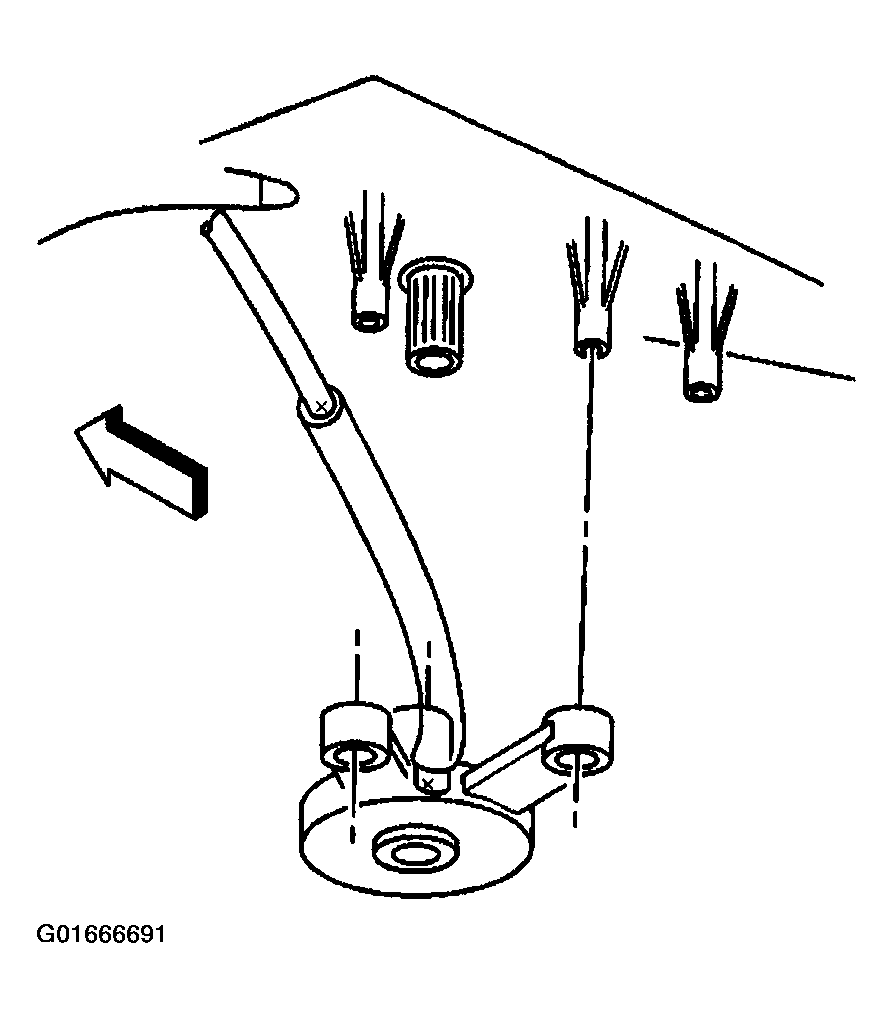

Fig 1: Temperature Control Cable
Courtesy of GENERAL MOTORS CORP.
