Removal Procedure
WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

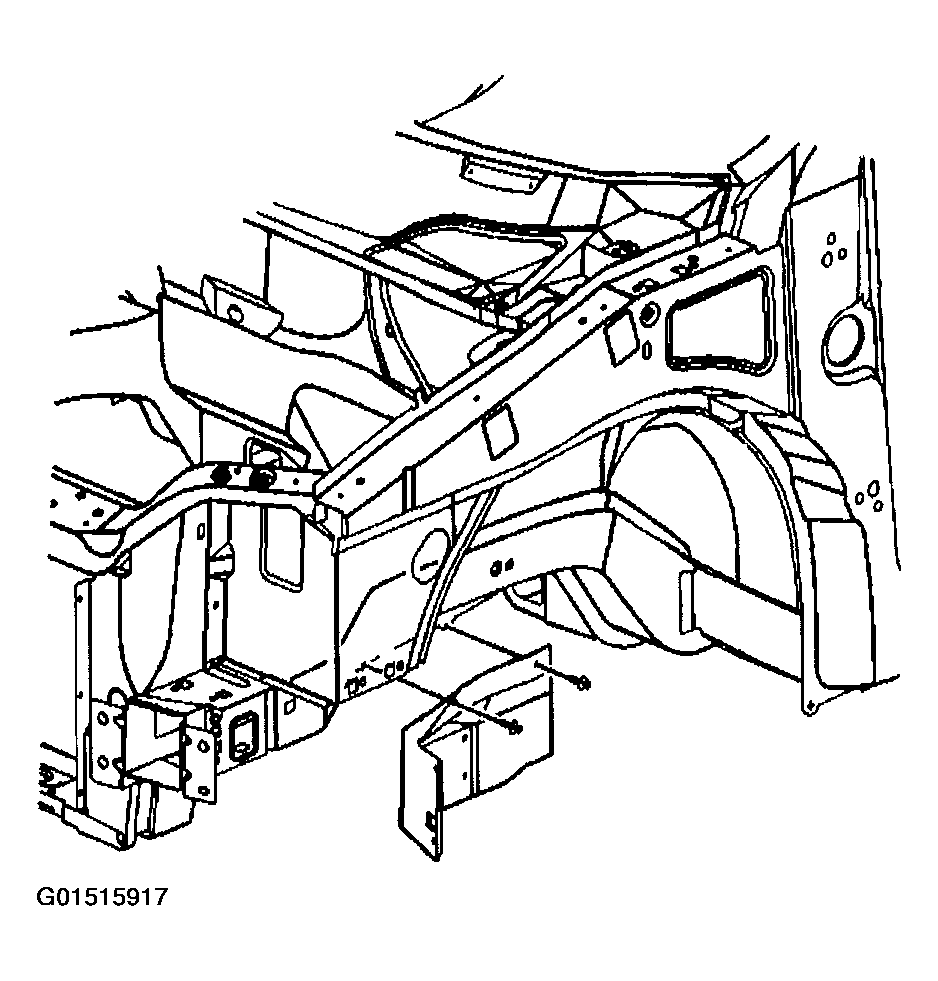

- Remove the push-in retainers holding the engine splash to the lower flange of the engine compartment side rail using J 38778.
- Remove the engine splash shield from the lower flange of the engine compartment side rail.
Courtesy of GENERAL MOTORS CORP.
