Torque Specifications
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |||
|---|---|---|---|---|
| Engine Brace Mounting Bolts | 37 (50) | |||

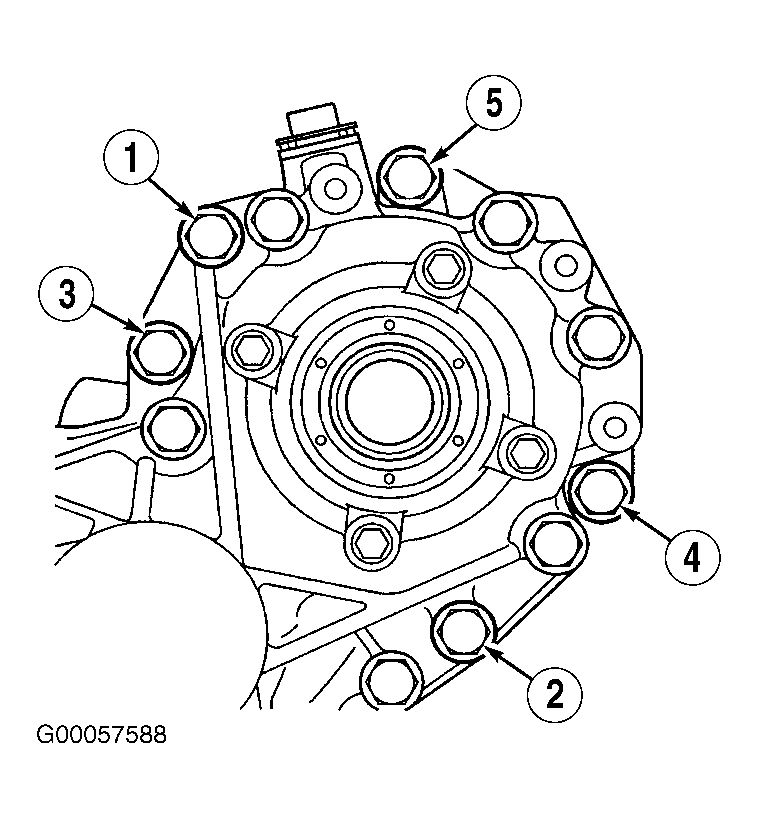

| Transfer Case Bolts (1) | ||||
| (1, 2 & 3) | 26 (35) | |||
| (4 & 5) | 30 (40) | |||
| Transfer Case Drain & Fill Plugs | 24 (32) | |||
| Transfer Case Lower Brace-To-Transaxle Bolts | 35 (47) | |||
| Transfer Case Lower Brace-To-Transfer Case Bolts | 35 (47) | |||
| Transfer Case Retaining Nuts | 37 (50) | |||
| Transfer Case Side Brace Bolts | 35 (47) | |||
| INCH Lbs. (N.m) | ||||
| Extension Housing Vent Hose Clamp Bolt | 106 (10) | |||
|
||||
