Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 -Fig 3 .

COMPONENT LOCATIONS

Component	Location
Headlight Door Control Module	Left Front Engine Compartment
Instrument Panel Fuse Block	Behind Left Side Of Instrument Panel
Underhood Fuse Block	Left Front Corner Of Engine Compartment

Fig 1: Locating Bottom & Top Underhood Fuse Blocks

Courtesy of GENERAL MOTORS CORP.

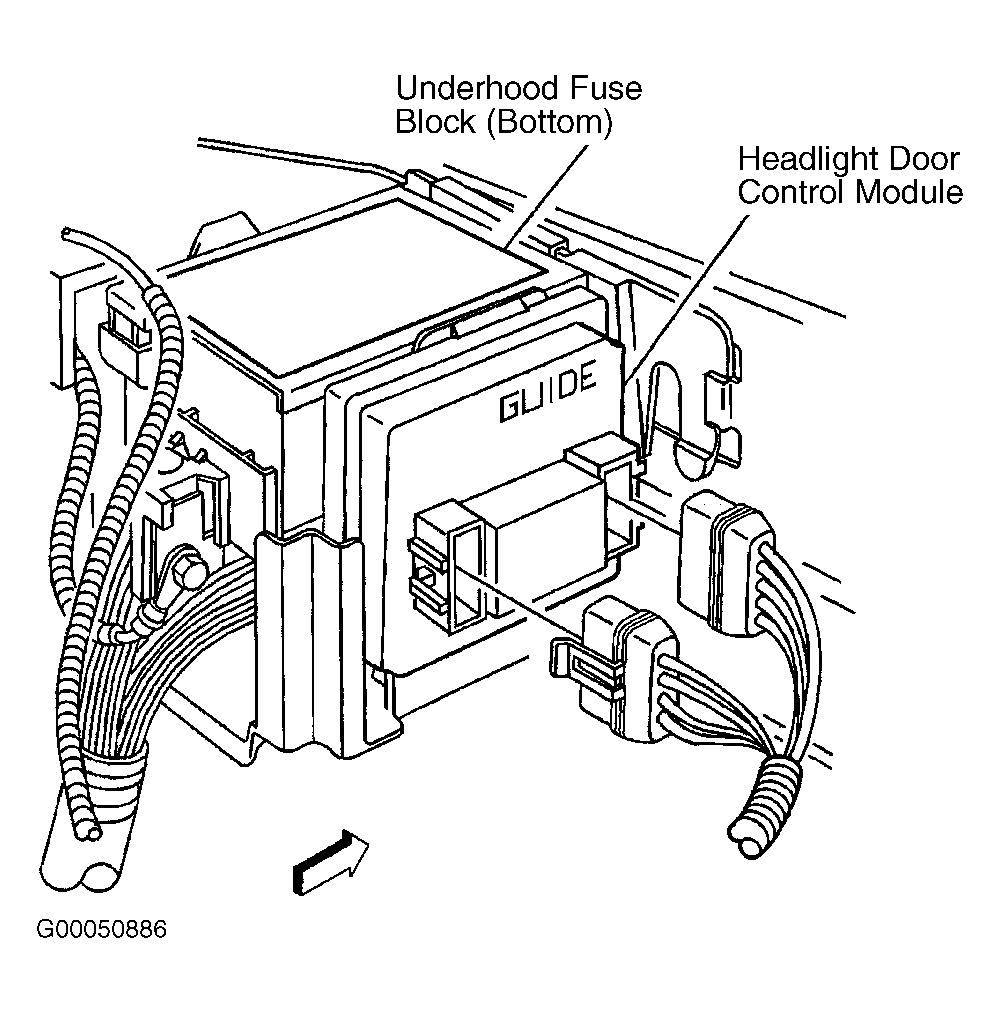

Fig 2: Locating Headlight Door Control Module

Courtesy of GENERAL MOTORS CORP.

Fig 3: Locating Instrument Panel Fuse Block

Courtesy of GENERAL MOTORS CORP.
