Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Antenna Amplifier Module | On right rear pillar, beneath trim. |
| Body Control Module (BCM) | Behind right side of dash. See Figure . |
| Cruise Control Module | In right side of engine compartment. |

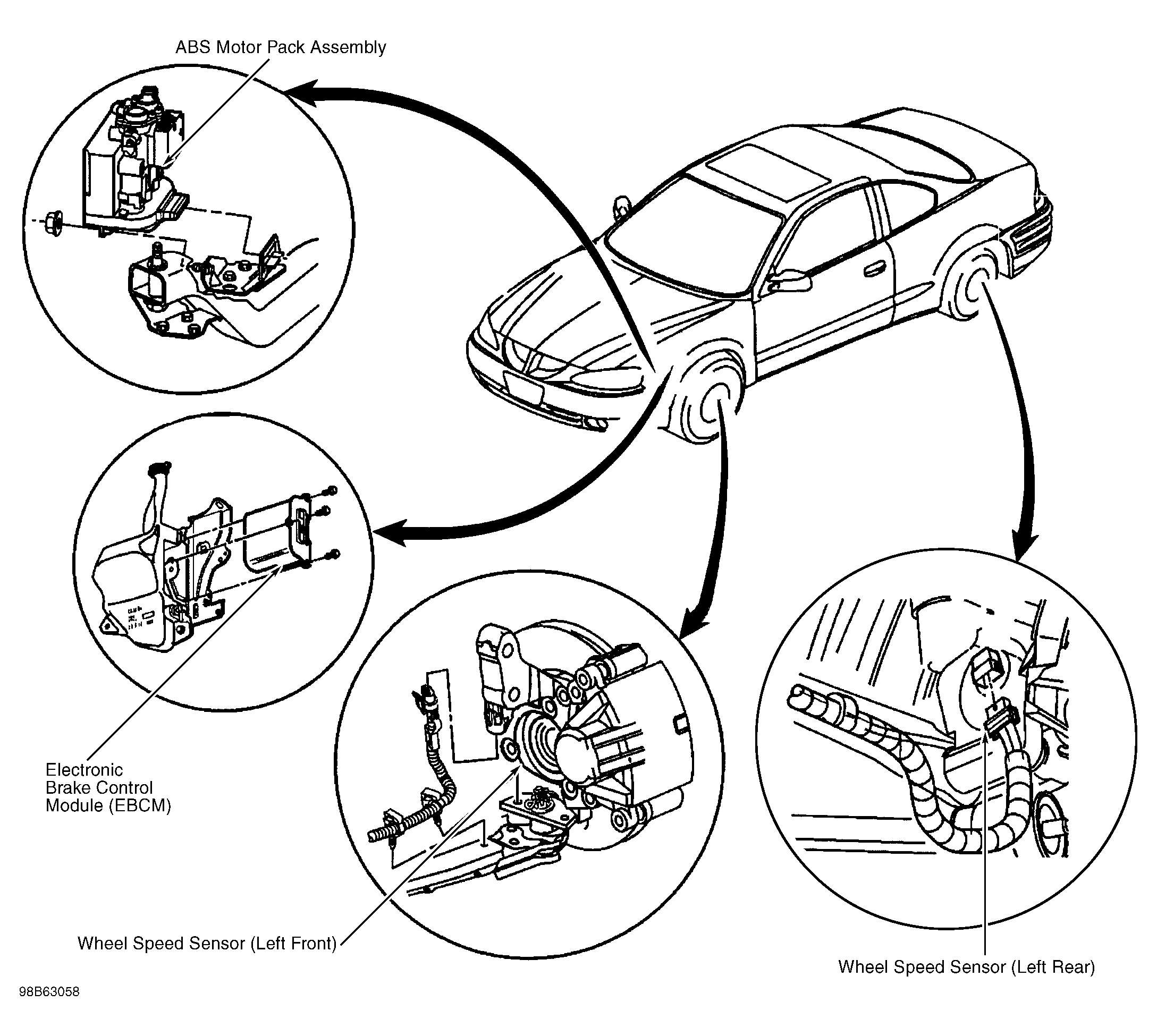

| Electronic Brake Control Module (EBCM) | Inside left front fender. See Figure . |
| Fuel Tank Module | Under rear of vehicle. |

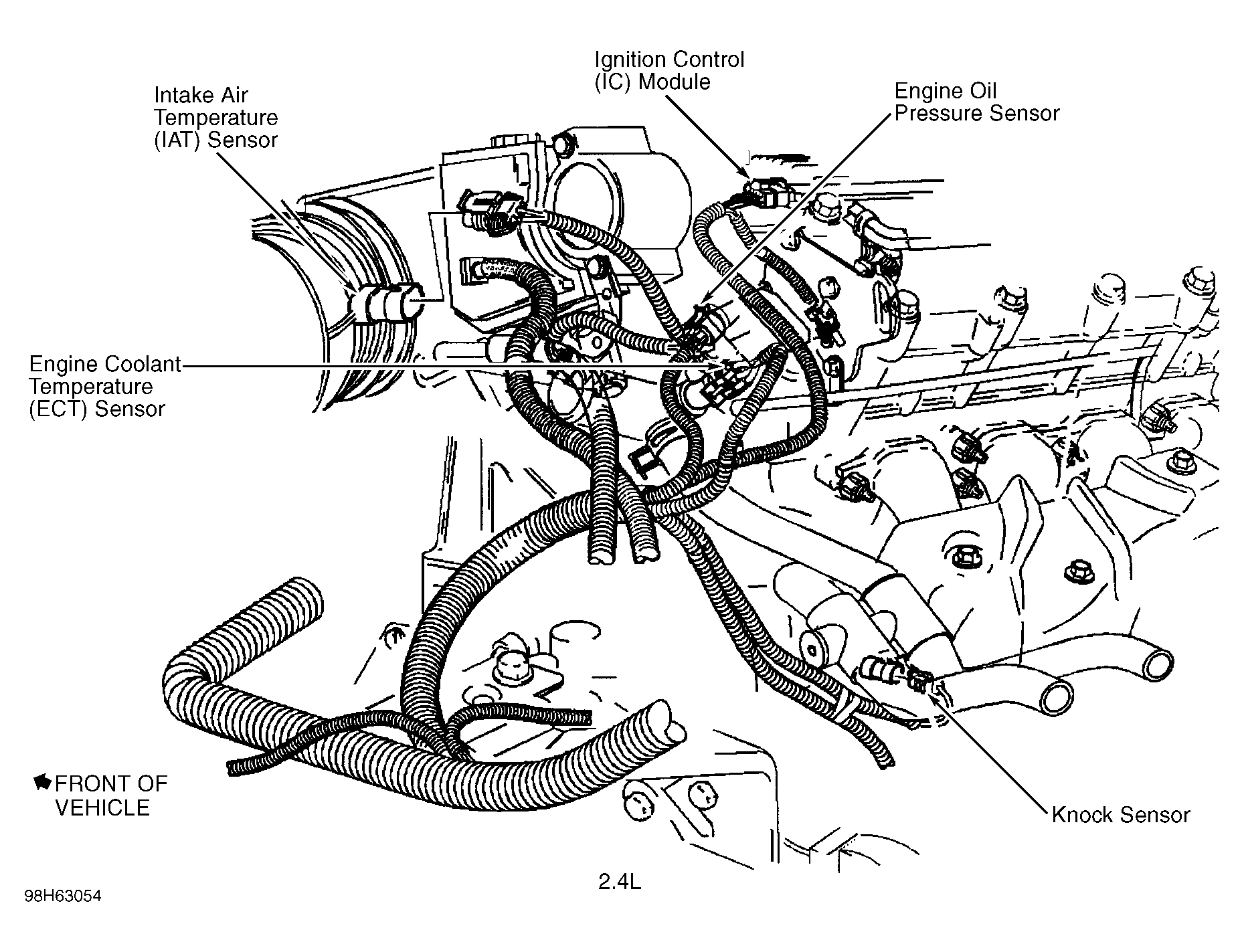

| Ignition Control (IC) Module (2.4L) | Top right rear of engine. See Figure . |

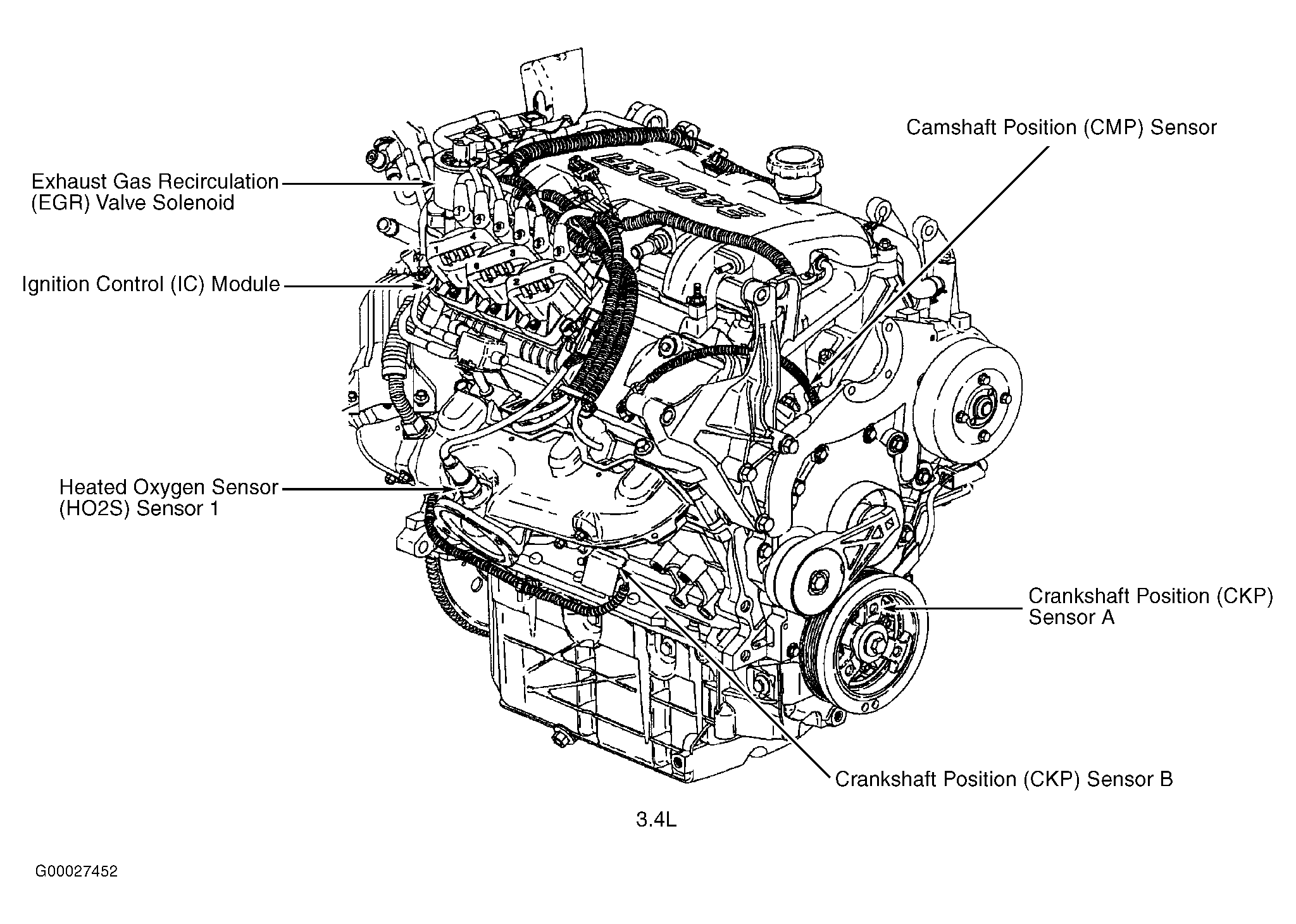

| Ignition Control (IC) Module (3.4L) | Top right rear of engine. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under right front seat, below carpet. |
| Lamp Dimmer Module | Behind left side of dash. |
| Powertrain Control Module (PCM) | Below left side of dash, near steering column. See Figure . |
| Sun Roof Control Module | Above left side sun visor. |
