Console Trim Plate: Installation

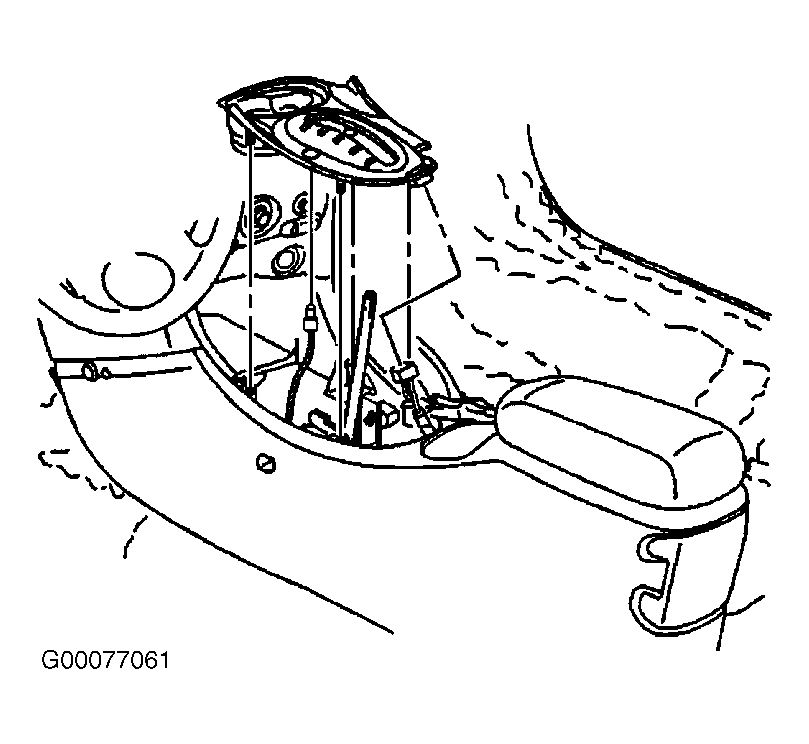

  1. Install the traction control switch to the trim plate. Place the shift indicator lamp socket into the trim plate opening. Rotate the socket clockwise to secure. Connect the traction control switch connector. Align the trim plate retainers to the slots in the front floor console. See Figure .
  2. Install the trim plate. Press the trim plate into place until fully seated. Place the gearshift lever knob to the gearshift lever. Install the shifter knob U-clip (1). Press the clip into place until fully seated. See Figure . Place the gearshift lever in the Park position. Release the parking brake.

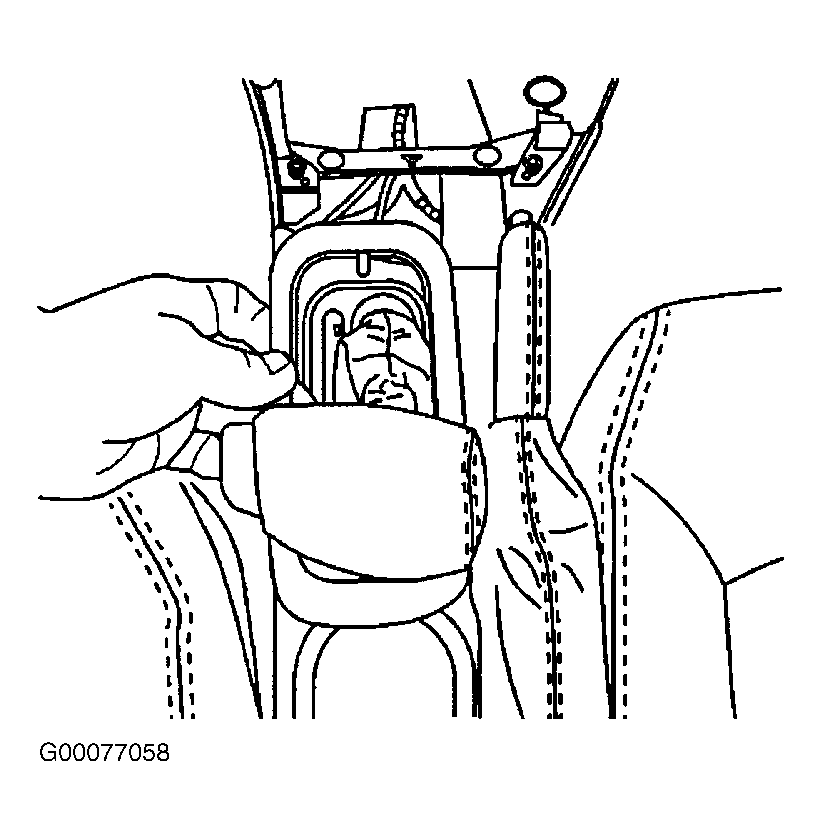

  1. Position the front floor console trim plate seal over the gearshift lever knob by sliding down and rotating 90 degrees. See Figure . Install the front floor console trim plate seal. Ensure the seal is fully seated. See Figure .
  2. Place the gearshift lever in the Park position. Release the parking brake.
