Component Locations

NOTE: For Body Control Module (BCM) and Data Link Connector (DLC) locations, refer to illustrations. See Fig 1 -Fig 4 .

COMPONENT LOCATIONS

Component	Location
Body Control Module	Behind Left Side Of Instrument Panel, To Left Of Steering Column
Data Link Connector	Below Left Side Of Instrument Panel, To Right Of Steering Column
Instrument Panel Fuse Block	Behind Right Side Of Instrument Panel, In Glove Box
Underhood Fuse Block	Mounted To Right Front Strut Tower

Fig 1: Locating Body Control Module & Harness Connectors

Courtesy of GENERAL MOTORS CORP.

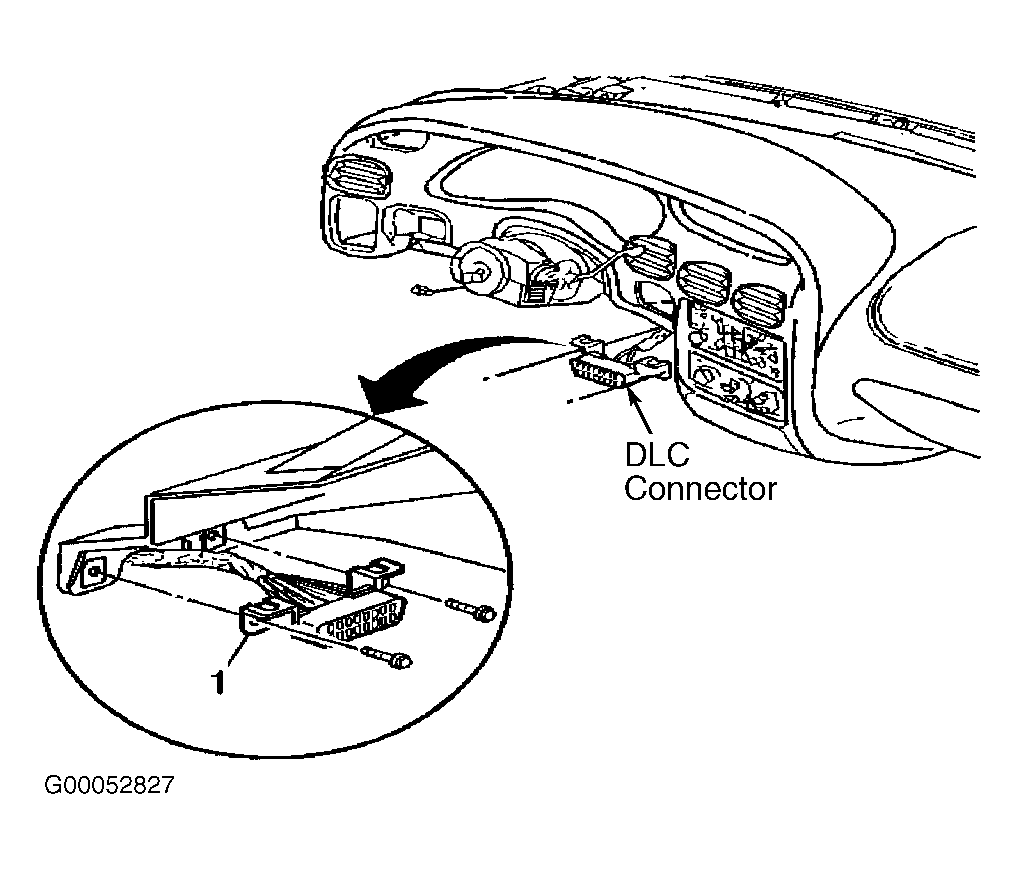

Fig 2: Locating Data Link Connector

Courtesy of GENERAL MOTORS CORP.

Fig 3: Locating Instrument Panel Fuse Block

Courtesy of GENERAL MOTORS CORP.

Fig 4: Locating Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.
