Installation Procedure

  1. Install the upper jumper harness connector from the rear body pass-thru connector.
  2. Install the jumper harness grommet to the retainer.
  3. Install the wheel speed sensor connectors (2,3).

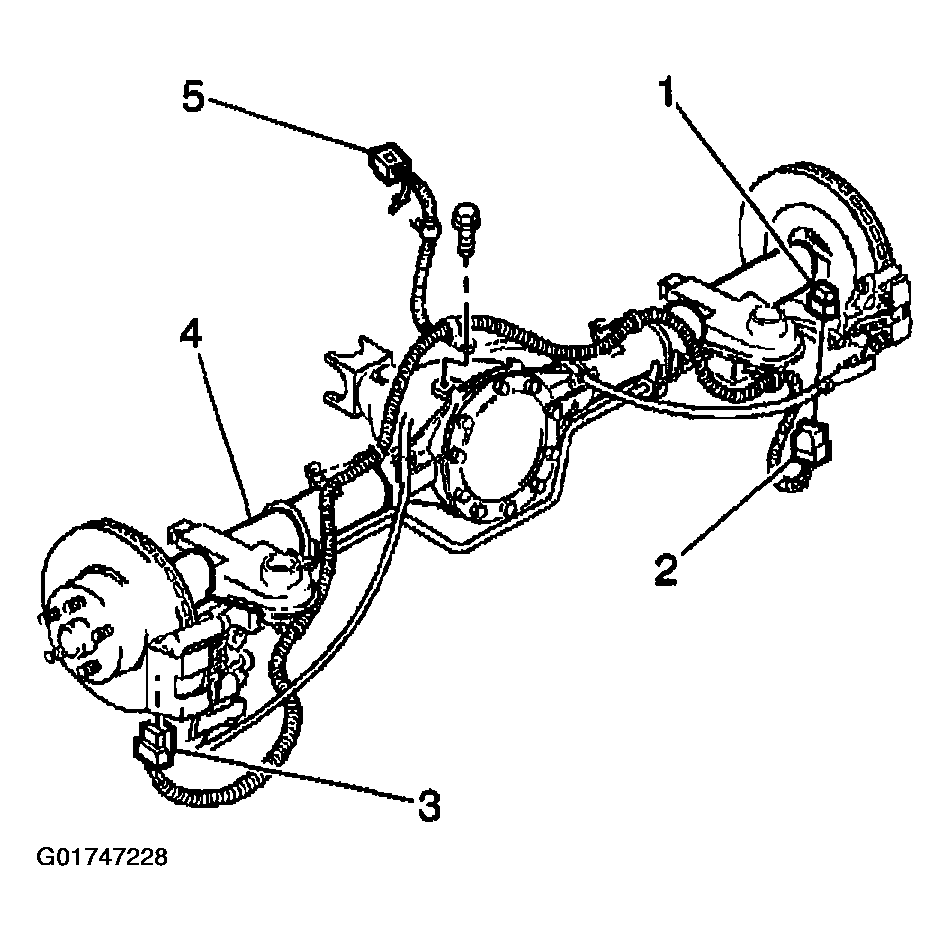

    Fig 1: Installing Wheel Speed Sensor Connectors
    G01747228Courtesy of GENERAL MOTORS CORP.
