Removal Procedure

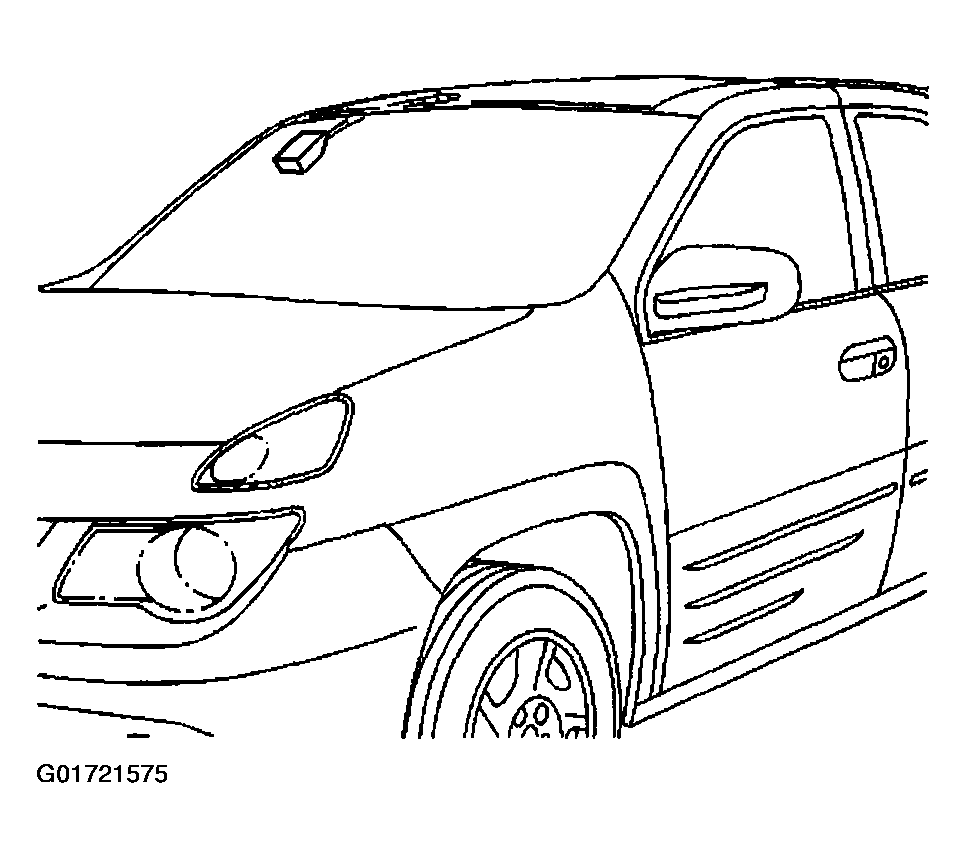

Remove the GPS antenna from the windshield.

Fig 1: Removing GPS Antenna From Windshield
Courtesy of GENERAL MOTORS CORP.

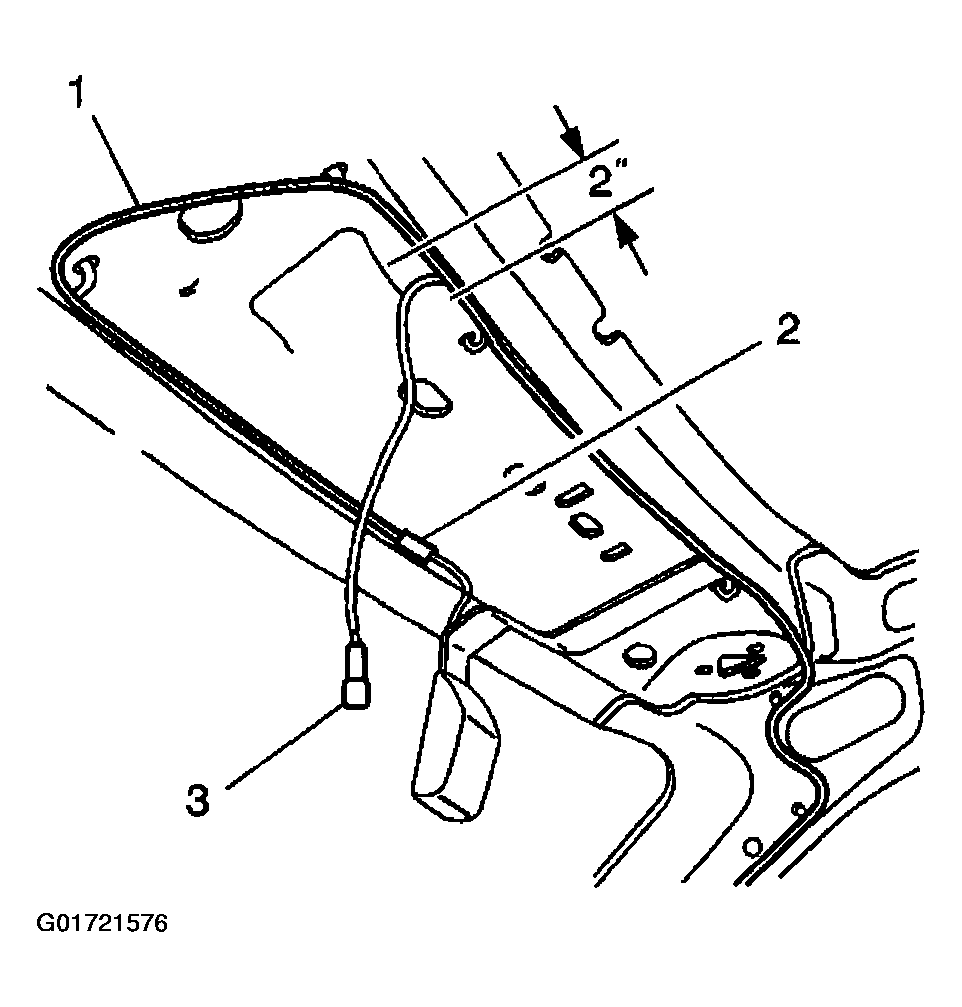

Disconnect the antenna cable (3) from the windshield.

Fig 2: Disconnecting GPS Antenna Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Clean the old residue from the windshield using a razor blade and isopropyl alcohol.

Fig 3: Cleaning Old Residue From Window
Courtesy of GENERAL MOTORS CORP.
