Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Aztek)  or Trim Panel Replacement - Side Front Door (Rendezvous) .
  2. Disconnect the electrical connector from the power mirror switch.

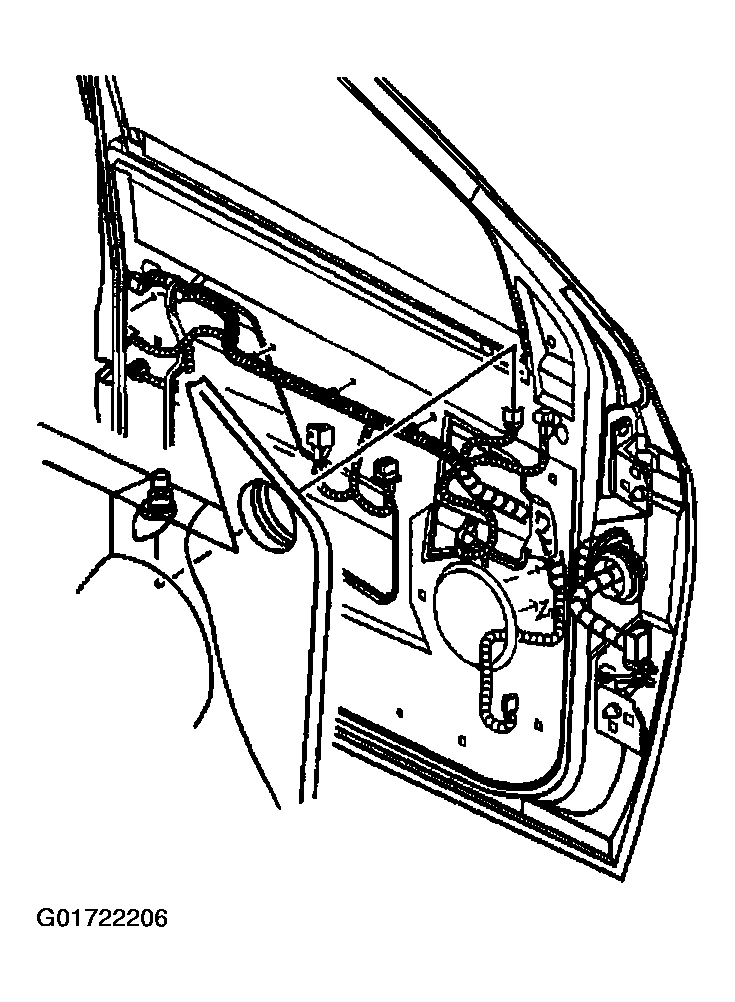

    Fig 1: Removing Front Door Panel
    G01722206Courtesy of GENERAL MOTORS CORP.
  3. Remove the power mirror switch from the front door inner trim panel.

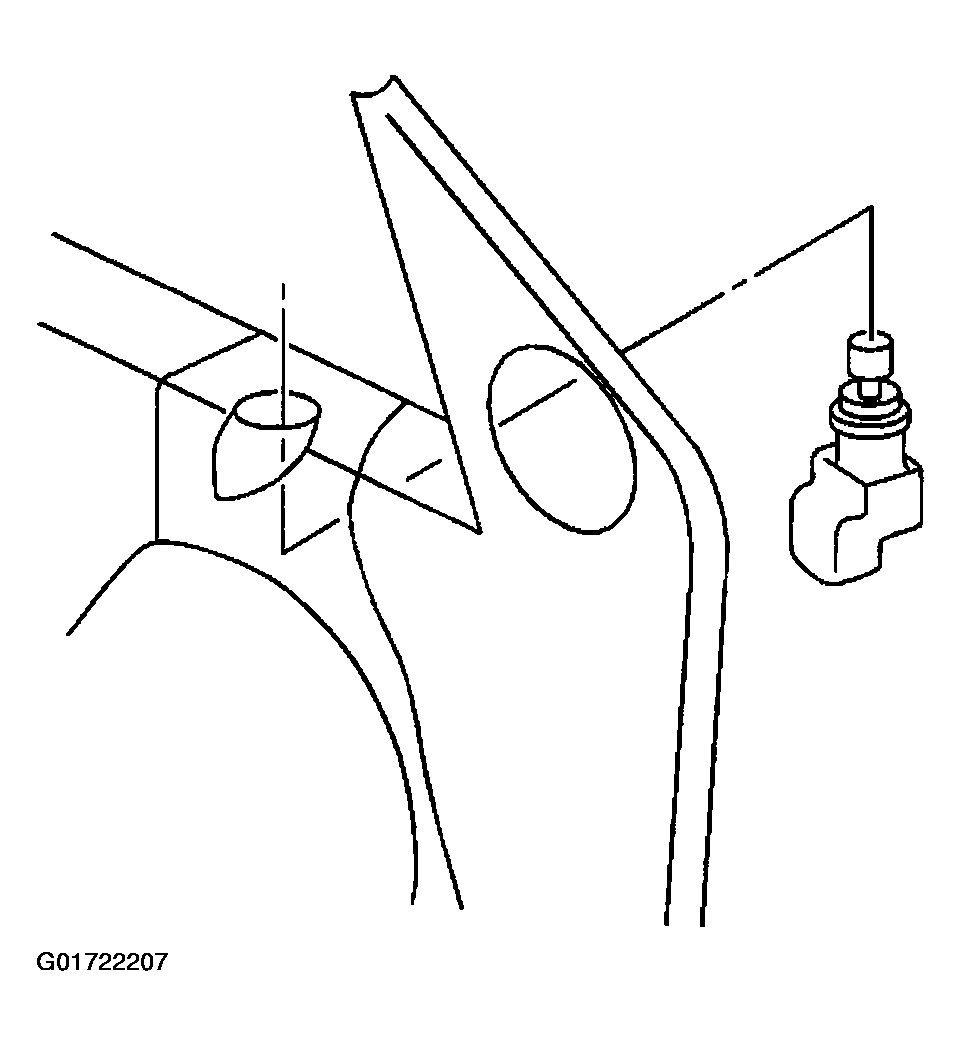

    Fig 2: Removing Power Window Switch (Aztek)
    G01722207Courtesy of GENERAL MOTORS CORP.
