Installation Procedure

  1. Install the front seat adjuster to the seat cushion frame.

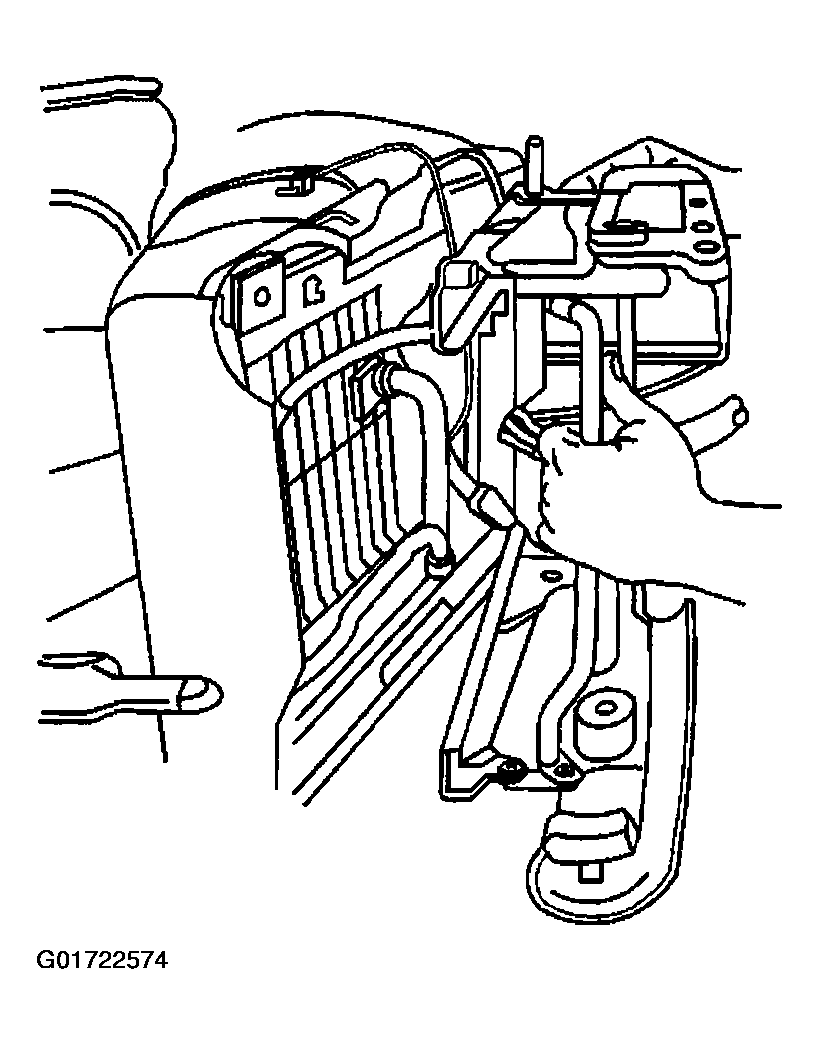

    Fig 1: Installing Front Seat Adjuster
    G01722574Courtesy of GENERAL MOTORS CORP.
  2. Install the seat back recliner cable to the recessed space on the right and on the left sides of the seat cushion frame.

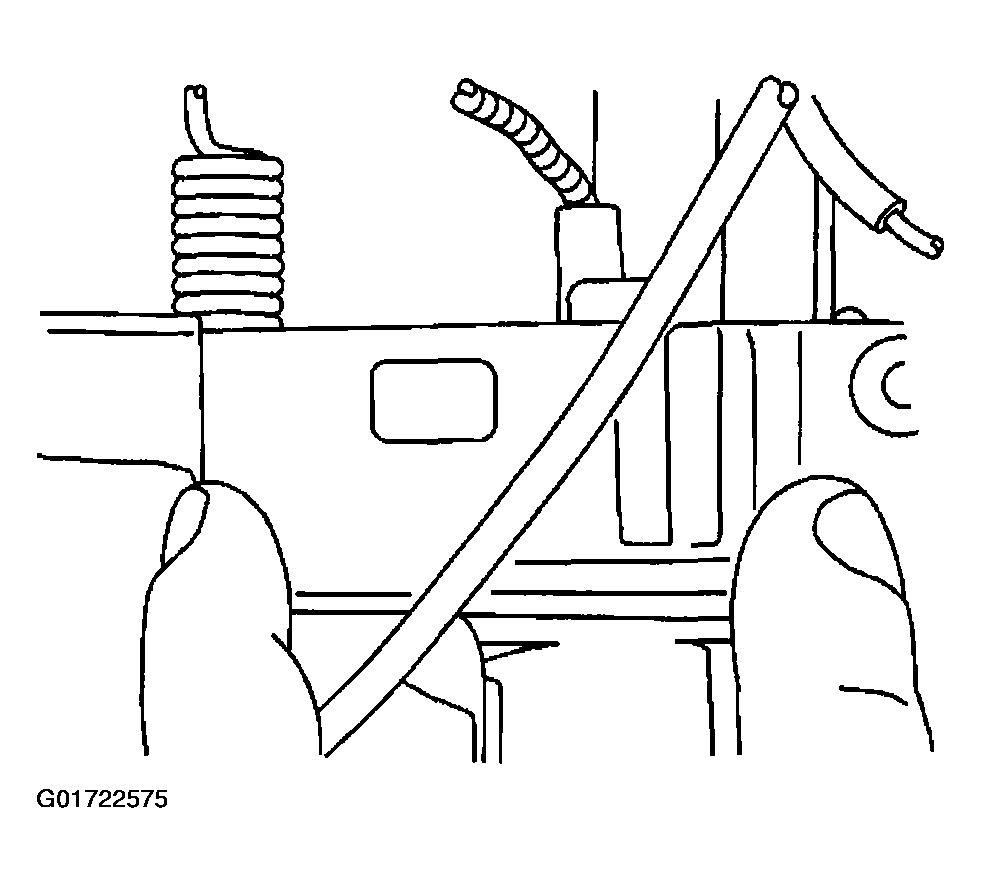

    Fig 2: Installing Seat Back Recliner Cable
    G01722575Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolts to the front seat adjuster.

    Tighten

    Tighten the bolts to 43 N.m (32 lb ft).

  4. Install the handle to the front seat adjuster.

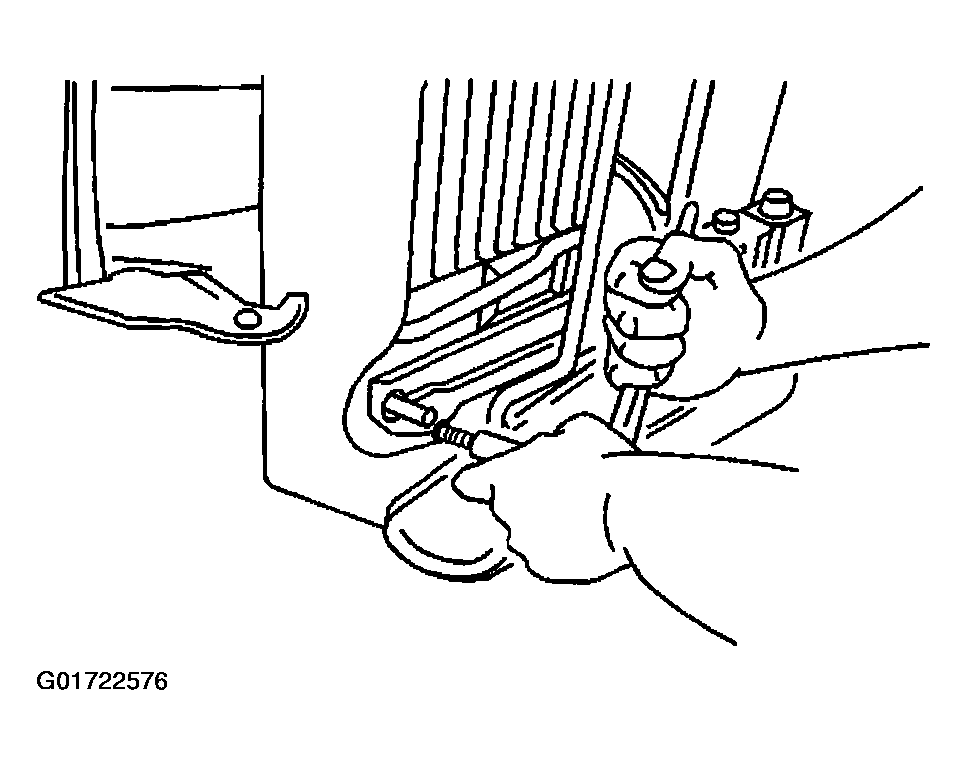

    Fig 3: Installing Handle And Bolts To Front Seat Adjuster
    G01722576Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connectors to the front seat adjuster motors.
  6. Install the front seat belt buckle. Refer to the following procedures in Seat Belts:
  7. Install the inner cushion trim cover. Refer to Seat Cushion Inner Trim Panel Replacement - Front .
  8. Install the outer cushion trim cover. Refer to Seat Cushion Outer Trim Panel Replacement - Front Seat .
  9. Install the bucket seat. Refer to Seat Replacement - Bucket .

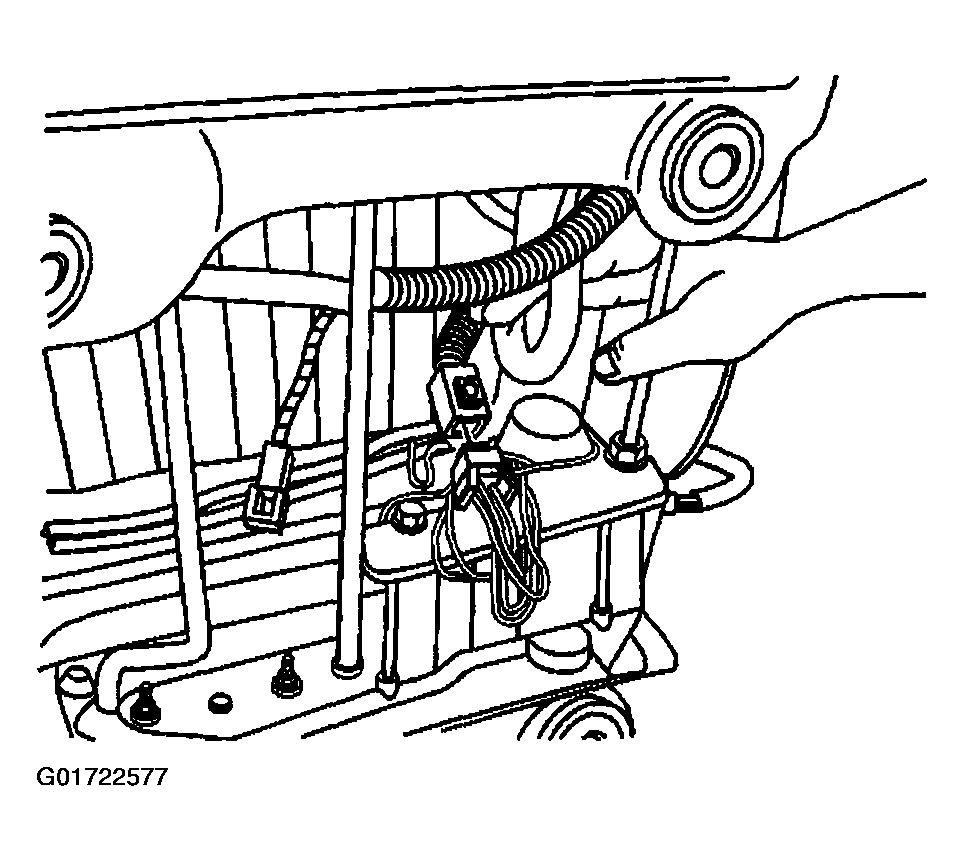

    Fig 4: Connecting Front Seat Adjuster Motors Electrical Connectors
    G01722577Courtesy of GENERAL MOTORS CORP.
