Scan Tool Data List

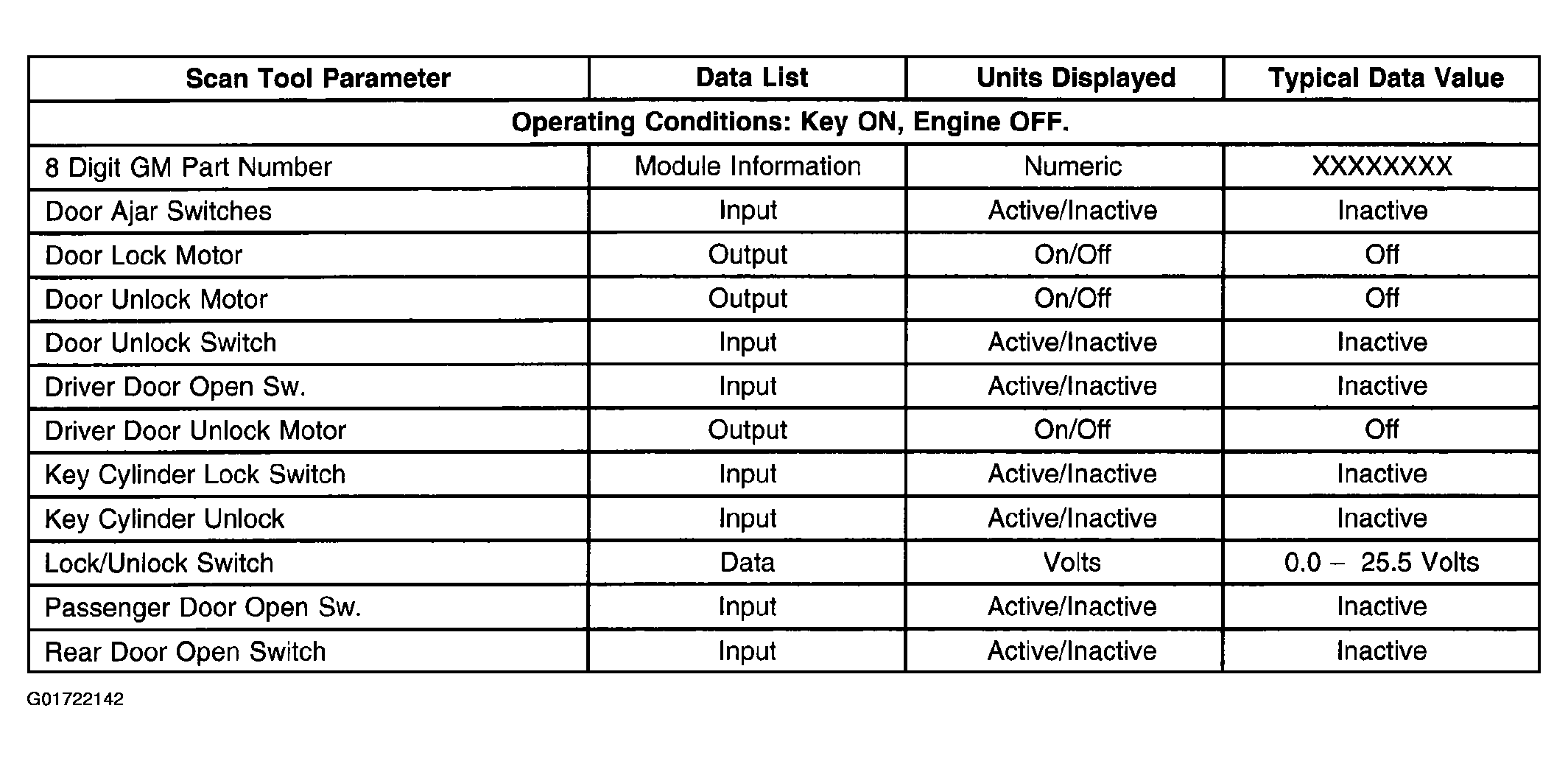

Fig 1: Body Control Module
G01722142Courtesy of GENERAL MOTORS CORP.

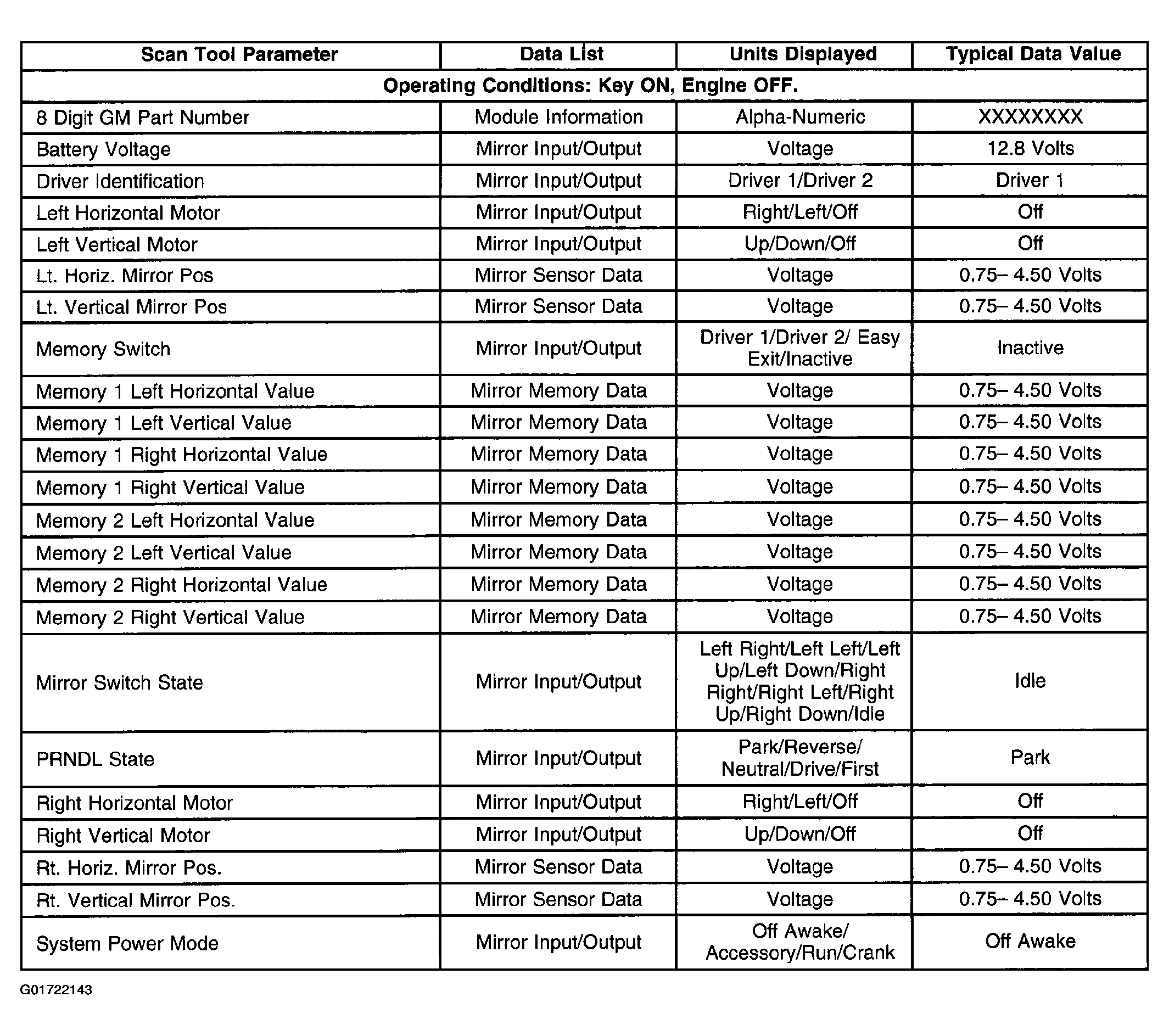

Fig 2: Memory Seat Module
G01722143Courtesy of GENERAL MOTORS CORP.
