Removal Procedure

  1. Open the door.
  2. Remove the power window switch assembly. Refer to Power Window Switch Replacement - Left Front (Aztek)  or Power Window Switch Replacement - Left Front (Rendezvous)  or Power Window Switch Replacement - Right Front (Aztek)  or Power Window Switch Replacement - Right Front (Rendezvous) .
  3. Remove the screws from the front door trim panel

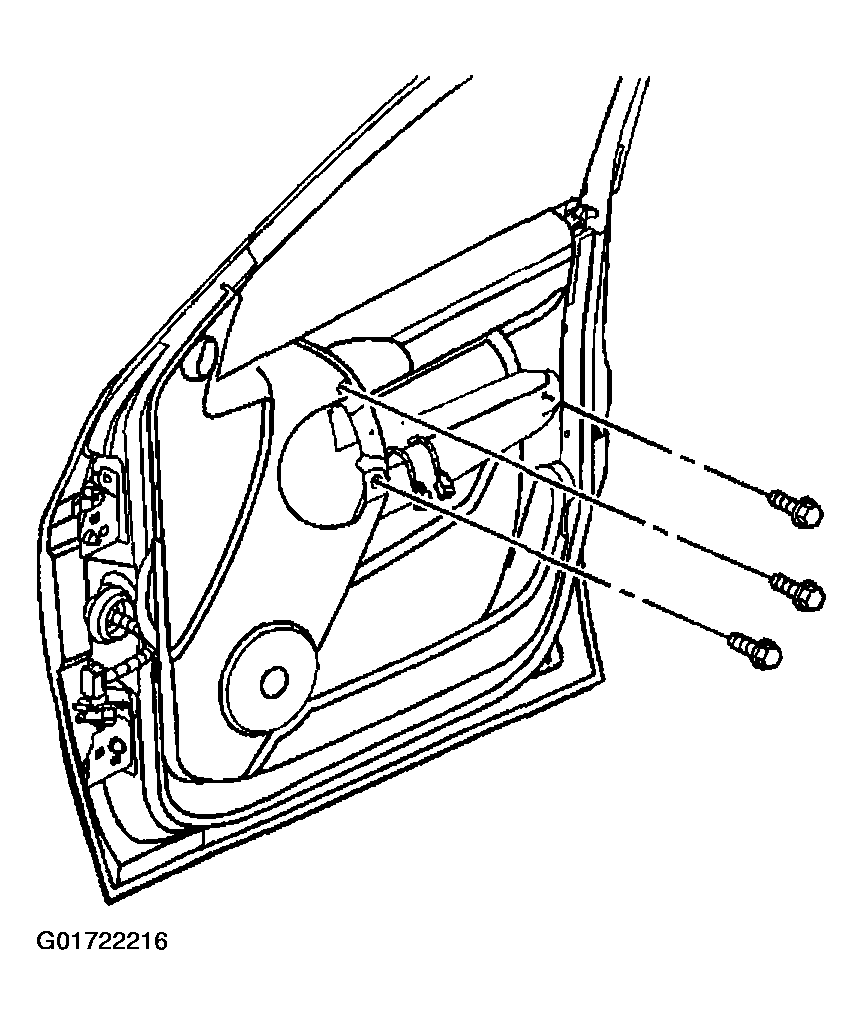

    Fig 1: Removing Front Door Trim Panel Screws (Aztek)
    G01722216Courtesy of GENERAL MOTORS CORP.
  4. Remove the front door trim panel using the J 38778.
  5. Remove the power mirror switch. Refer to Power Mirror Switch Replacement (Aztek)  or Power Mirror Switch Replacement (Rendezvous)  if equipped.
  6. Reposition the electrical harness connectors.
  7. Remove the front door trim panel from the vehicle.

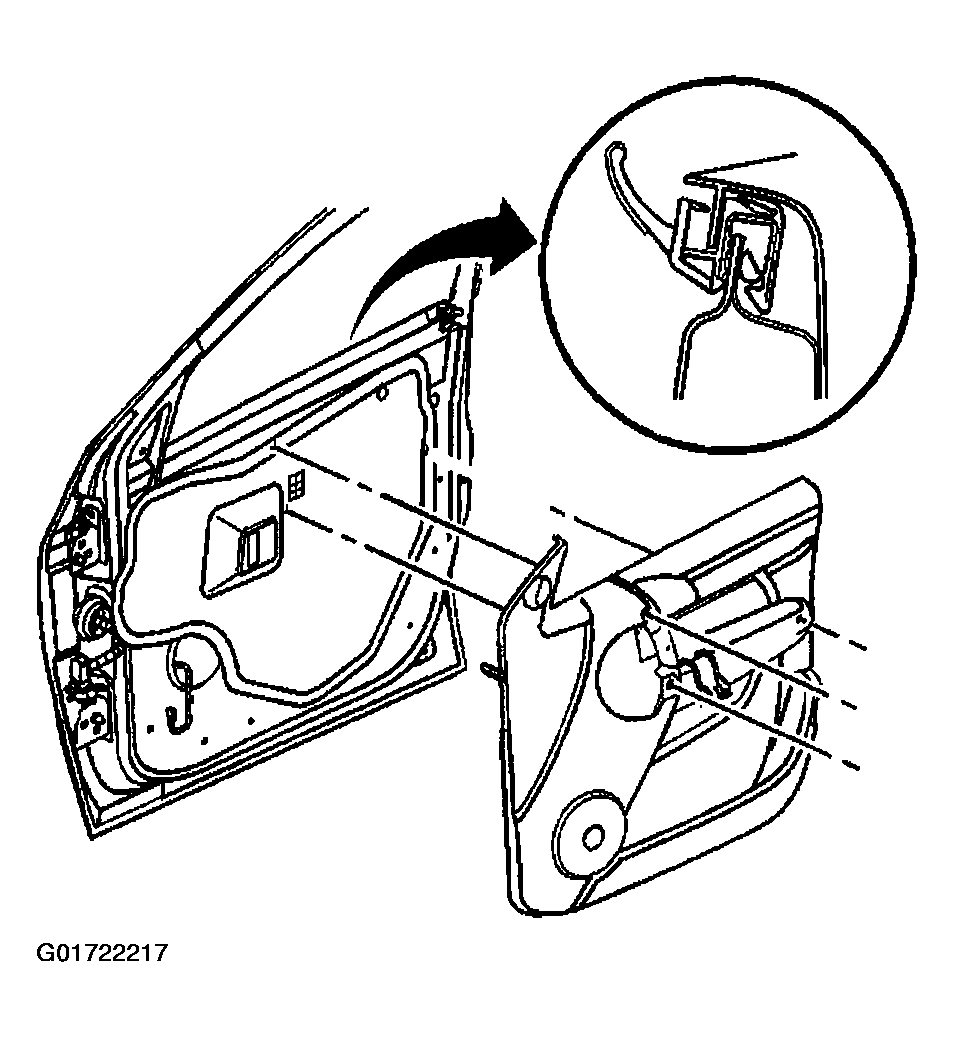

    Fig 2: Removing Front Door Trim Panel (Aztek)
    G01722217Courtesy of GENERAL MOTORS CORP.
