Removal Procedure

Open the rear door.
Remove the rear pillar auxiliary weatherstrip using J 38778.

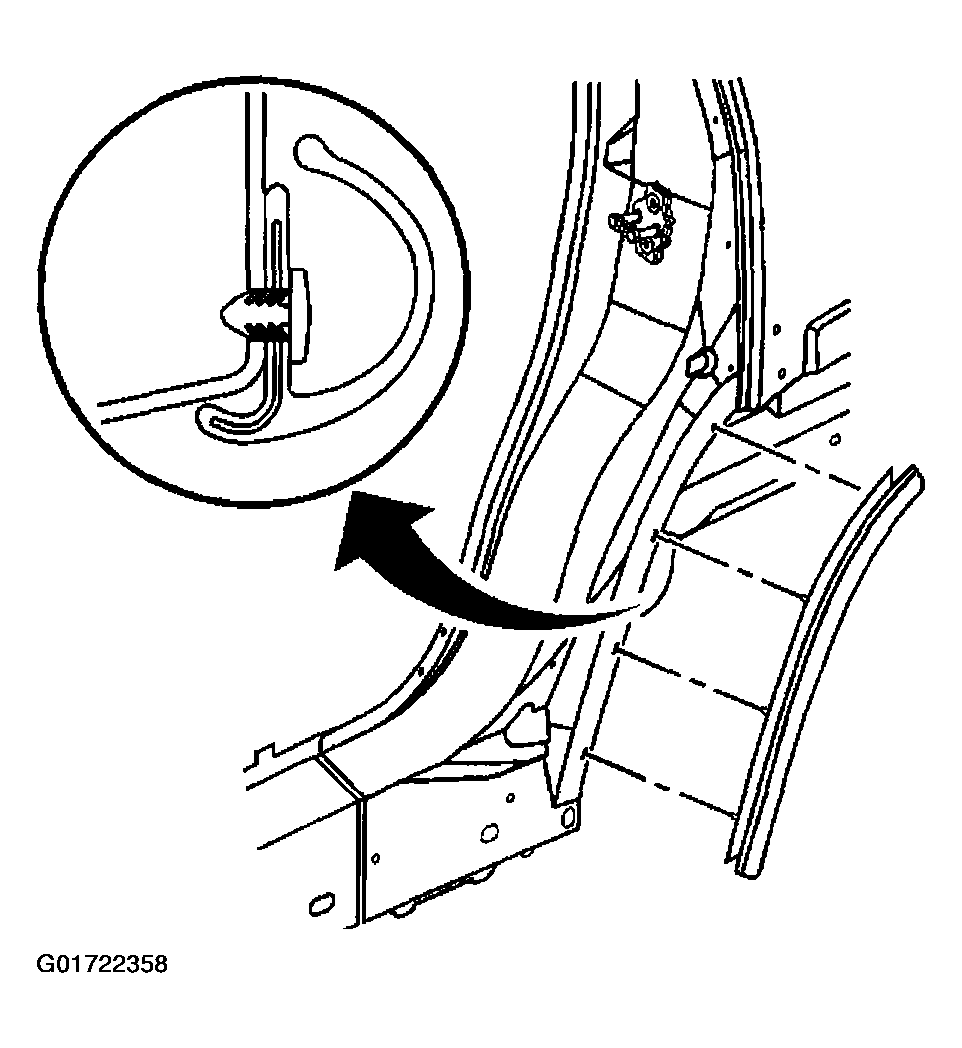

Fig 1: Removing Rear Pillar Auxiliary Weatherstrip Using J 38778
Courtesy of GENERAL MOTORS CORP.
Open the front and rear doors.
Remove the center pillar auxiliary weatherstrip using J 38778.

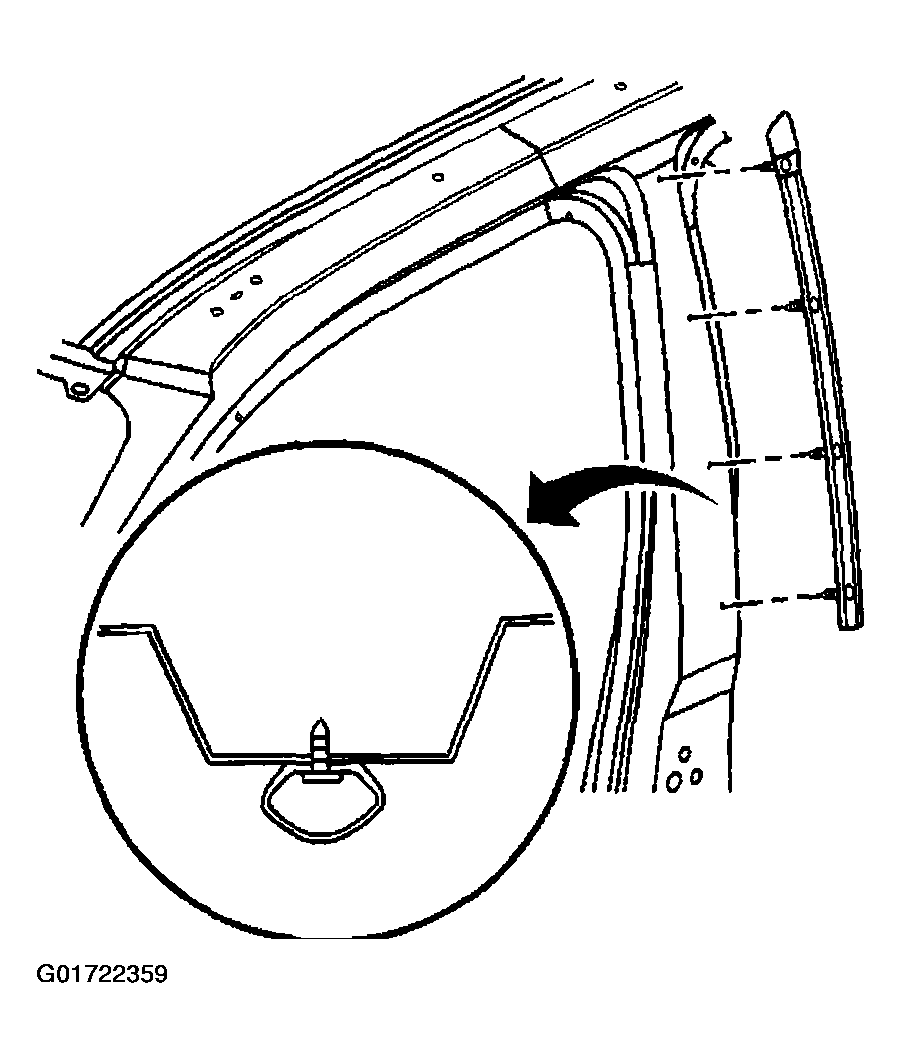

Fig 2: Removing Center Pillar Auxiliary Weatherstrip Using J 38778
Courtesy of GENERAL MOTORS CORP.
Remove the roof-rail auxiliary weatherstrip push-in retainers from the rear pillar using J 38778.
Remove the roof-rail auxiliary weatherstrip from the roof rail flange pulling from the rear to front. Bending back the roof-rail auxiliary weatherstrip onto itself to open the carrier while pulling forward will ease the removal effort.

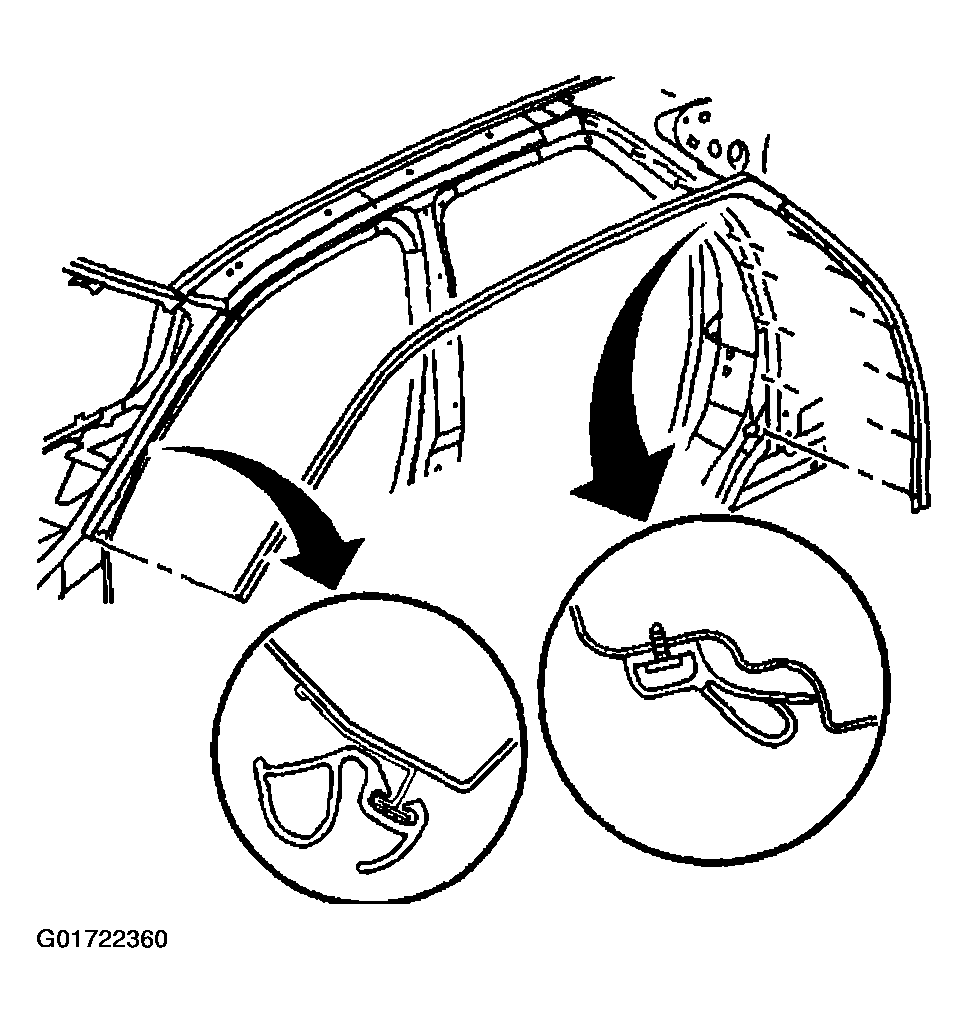

Fig 3: Removing Roof-Rail Auxiliary Weatherstrip Push-In Retainers Using J 38778
Courtesy of GENERAL MOTORS CORP.
