Installation Procedure

  1. Install a stationary window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
  2. Install the liftgate window and frame to the vehicle. Refer to LIFT GATE REPLACEMENT (AZTEK) or LIFT GATE REPLACEMENT (AZTEK) .
  3. Install the rear spoiler. Refer to SPOILER REPLACEMENT - REAR .
  4. Install the liftgate trim. Refer to TRIM PANEL REPLACEMENT - LIFT GATE (AZTEK) or TRIM PANEL REPLACEMENT - LIFT GATE (RENDEZVOUS) .
  5. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

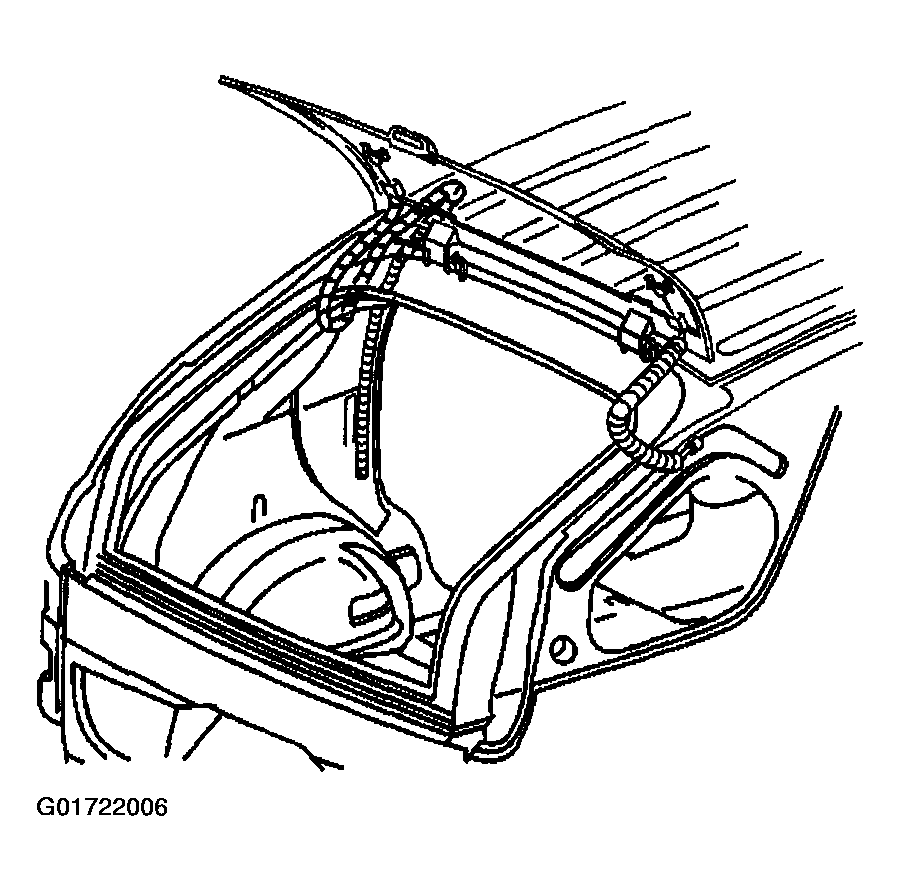

    Fig 1: View Of Liftgate (Pontiac)
    G01722006Courtesy of GENERAL MOTORS CORP.
  6. Close the liftgate.
