A/T Shift Lock Control Solenoid Connector End View - Buick
A/T Shift Lock Control Solenoid Connector End View - Buick

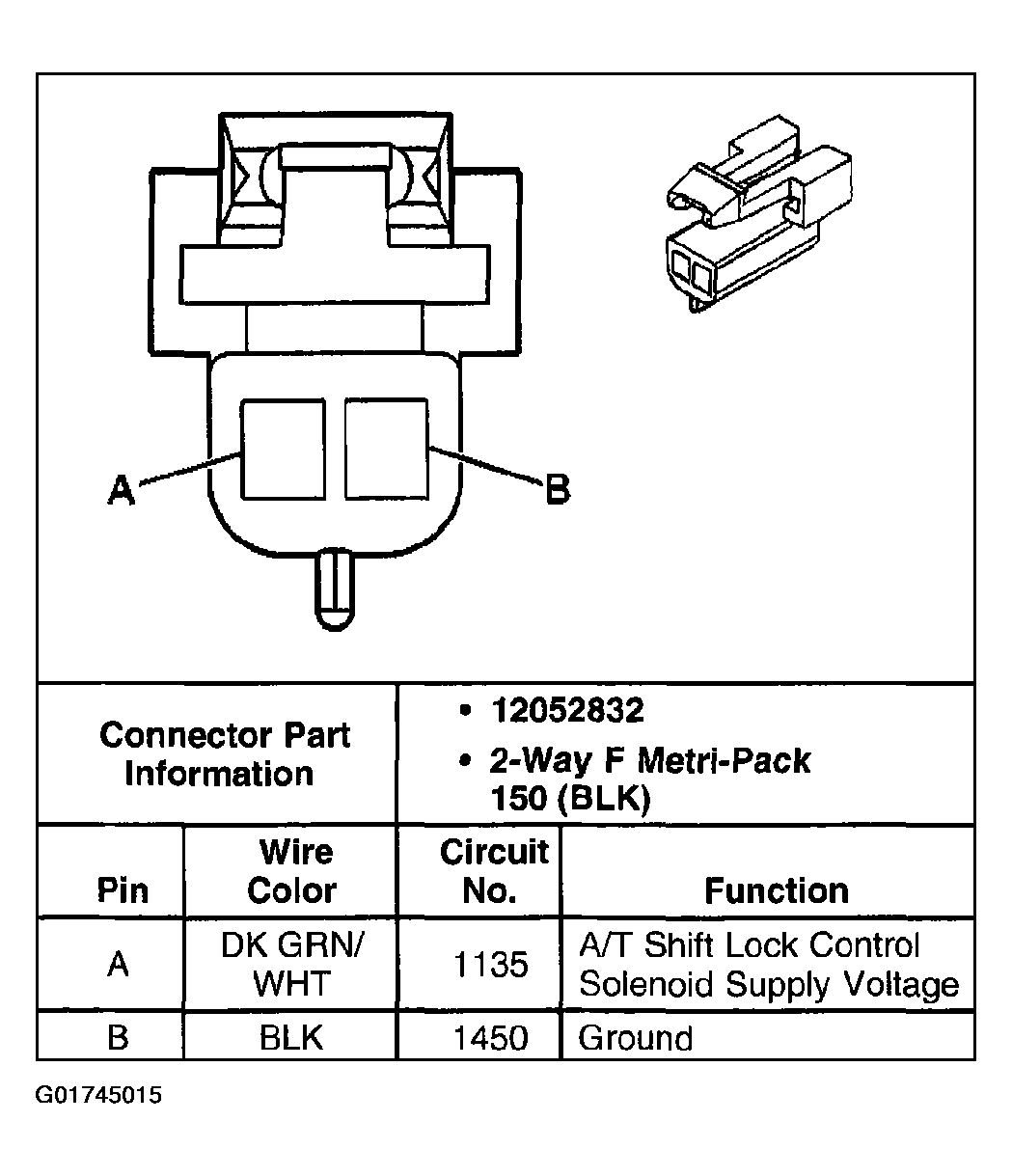

Fig 1: A/T Shift Lock Control Solenoid - Buick
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
