A/T Shift Lock Control Solenoid Connector End View - Pontiac

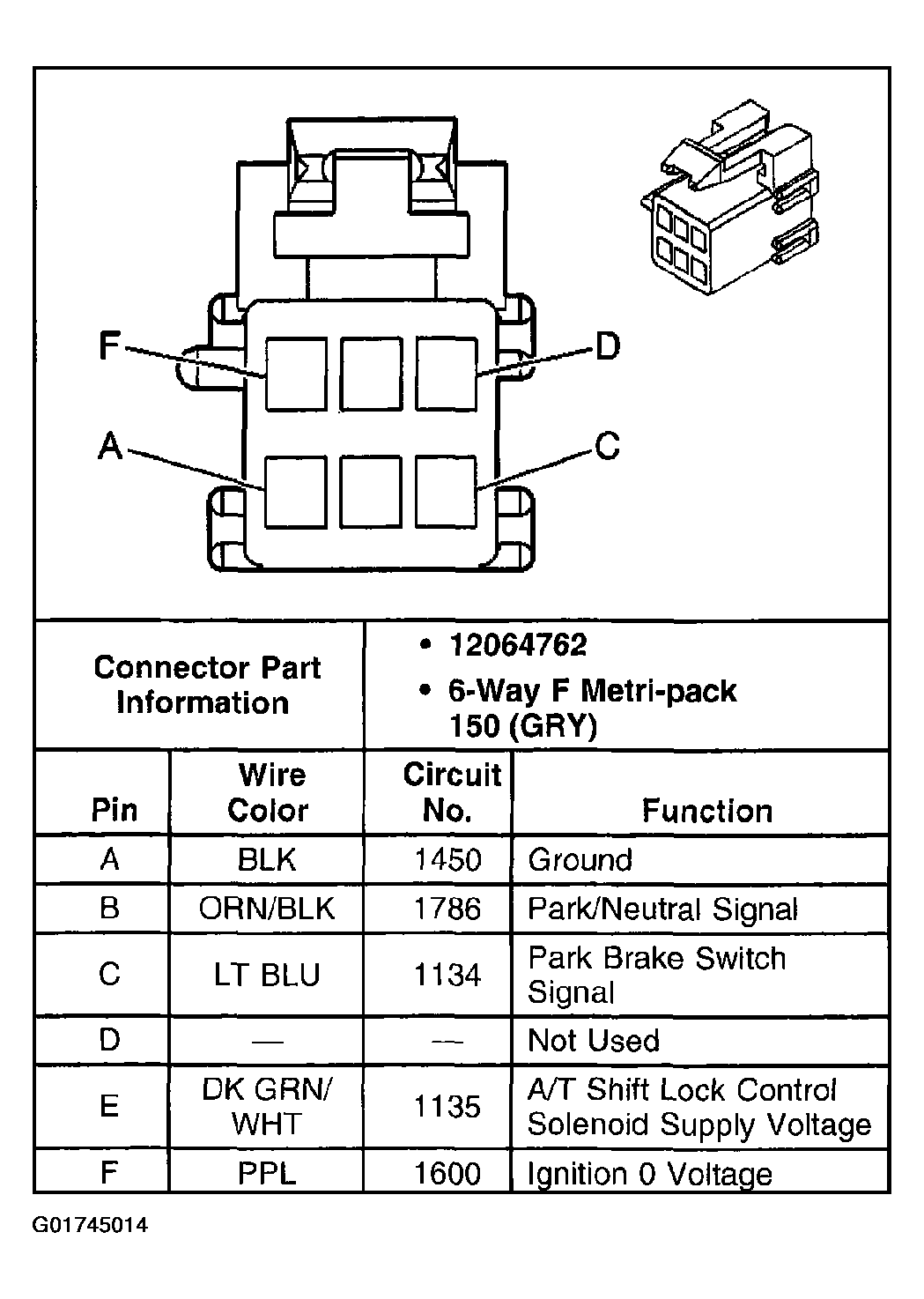

Fig 1: A/T Shift Lock Control Solenoid - Pontiac
G01745014Courtesy of GENERAL MOTORS CORP.
