Door Lock Switch Connector End View - Driver
Door Lock Switch Connector End View - Driver

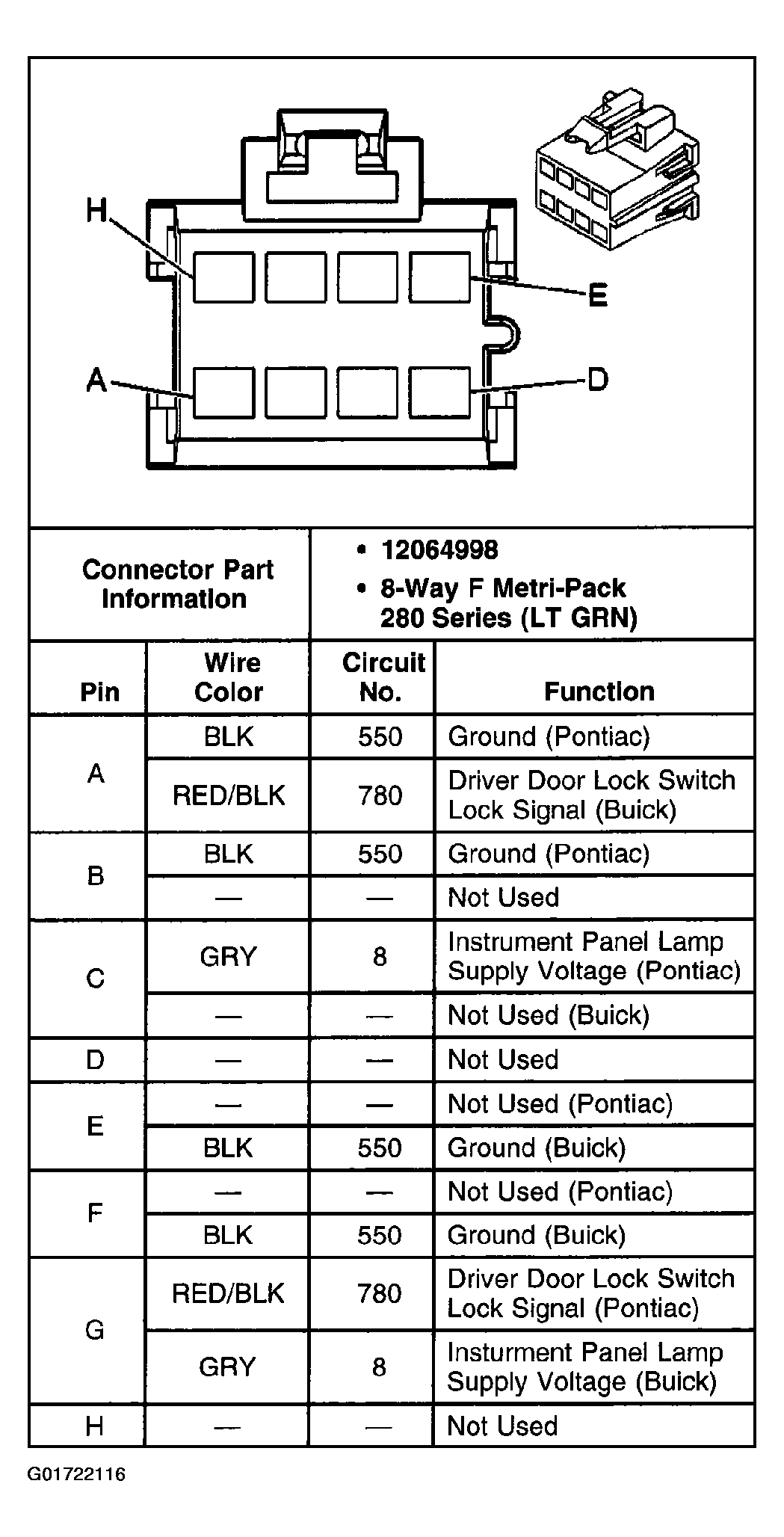

Fig 1: Door Lock Switch Connector End View - Driver
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
