Engine Oil Level Switch Connector End View

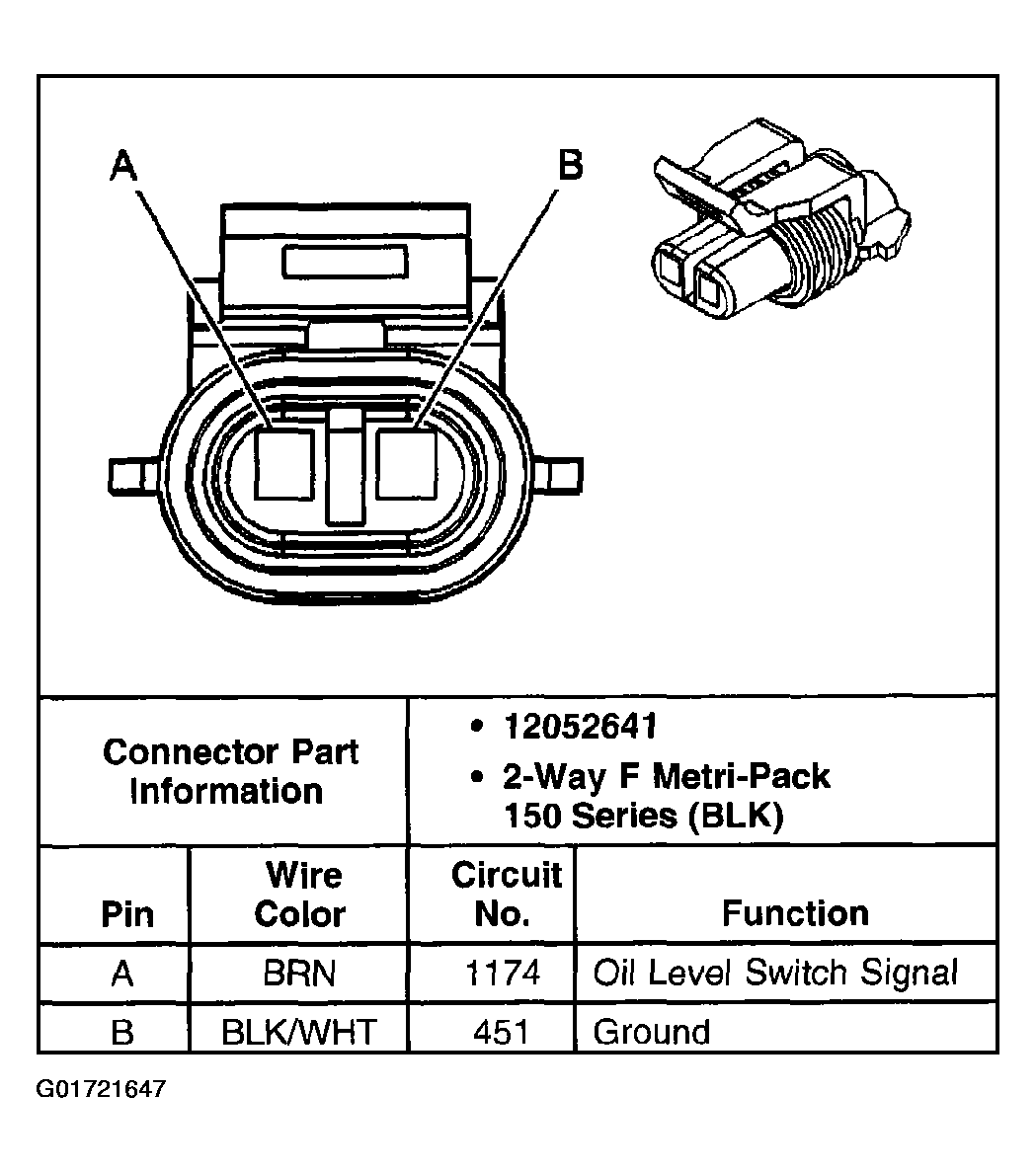

Fig 1: Engine Oil Level Switch Connector End View
G01721647Courtesy of GENERAL MOTORS CORP.
