I/P Switch Assembly C1 Connector End View (Buick)

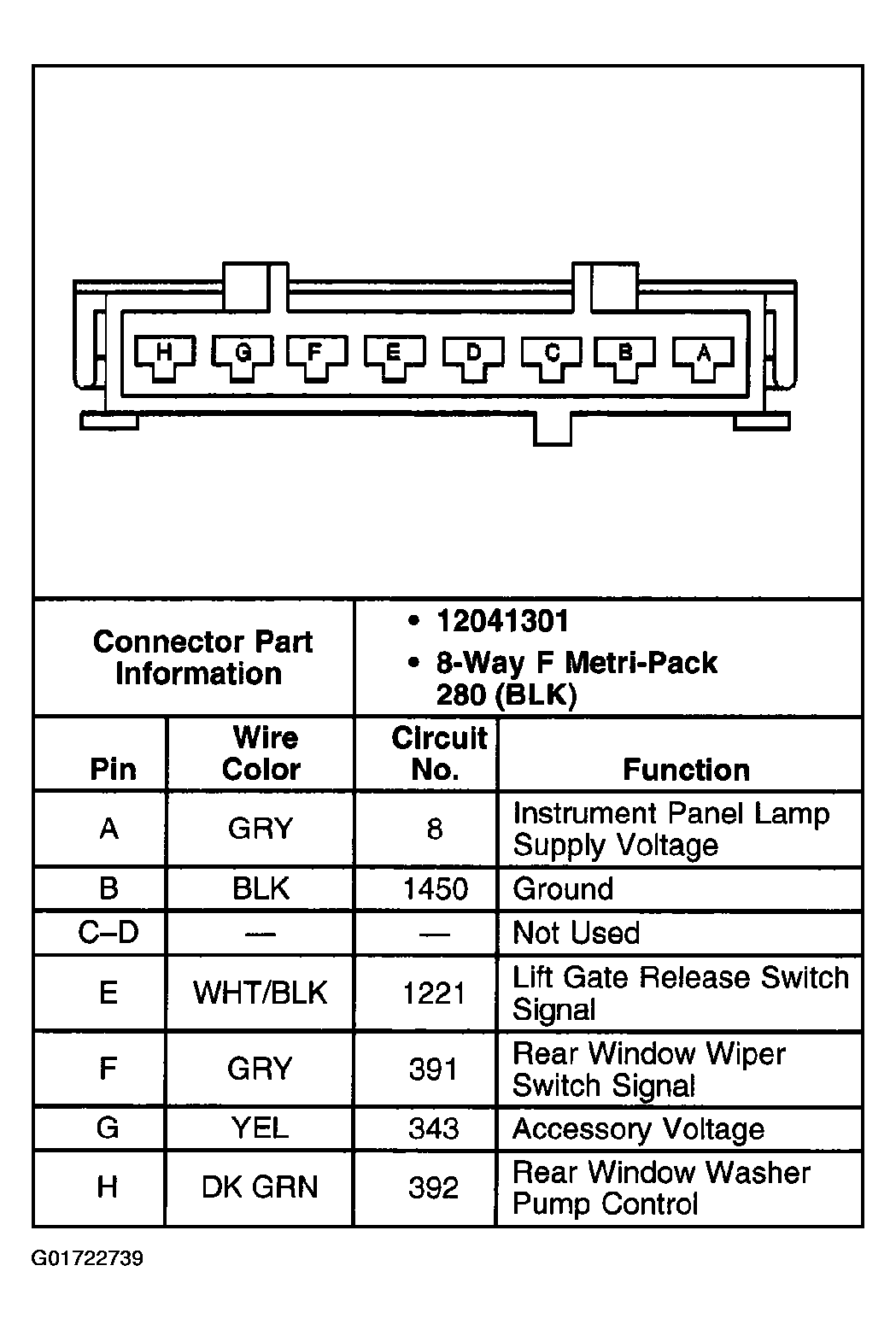

Fig 1: I/P Switch Assembly C1 Connector End View (Buick)
G01722739Courtesy of GENERAL MOTORS CORP.
