Lock Cylinder Switch - Endgate Connector End View
Lock Cylinder Switch - Endgate Connector End View

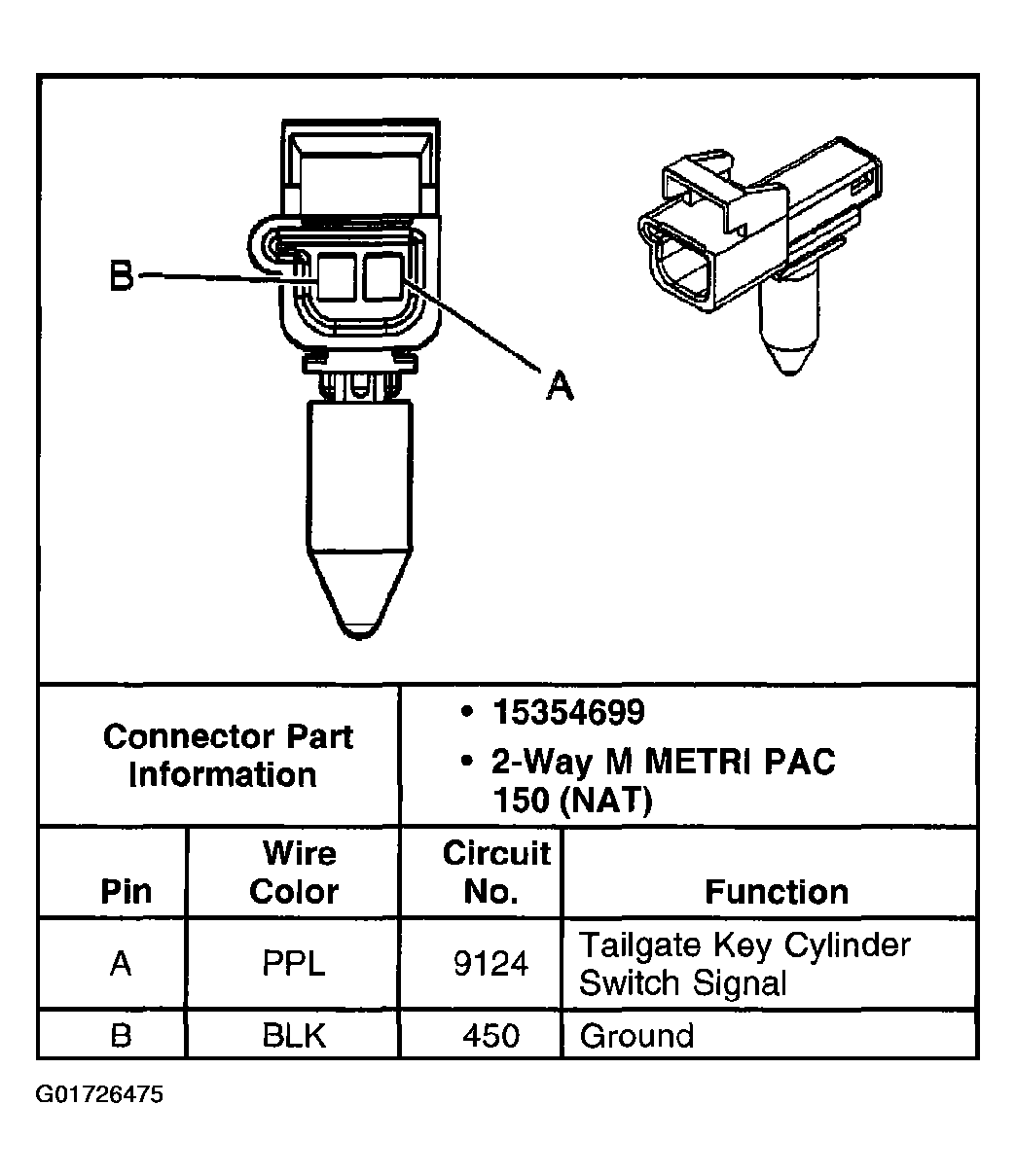

Fig 1: Lock Cylinder Switch - Endgate Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
