Rear Parking Assist (RPA) Module Connector End View

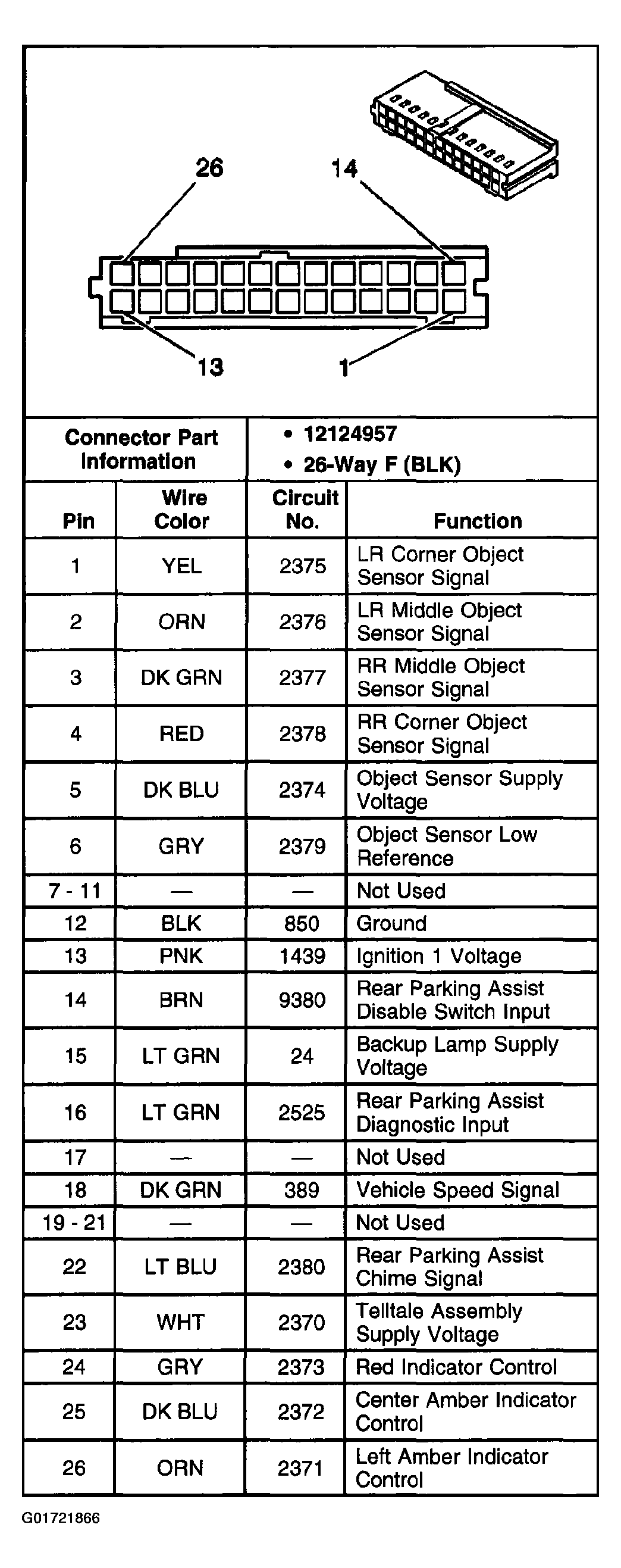

Fig 1: Rear Parking Assist (RPA) Module
G01721866Courtesy of GENERAL MOTORS CORP.
