Sunroof Module C2 Connector End View
Sunroof Module C2 Connector End View

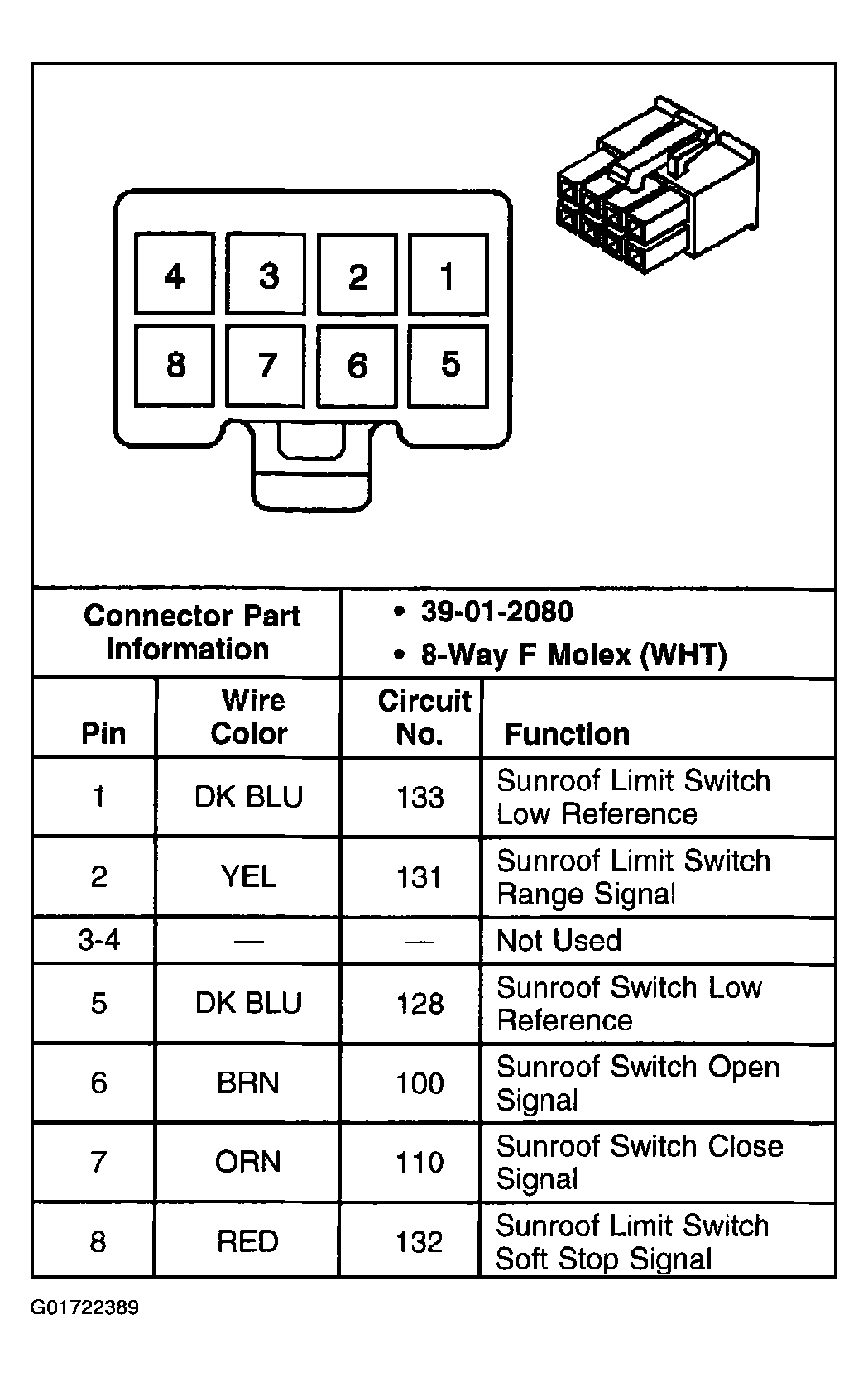

Fig 1: Sunroof Module C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
