Window Master Switch Connector End View - C1

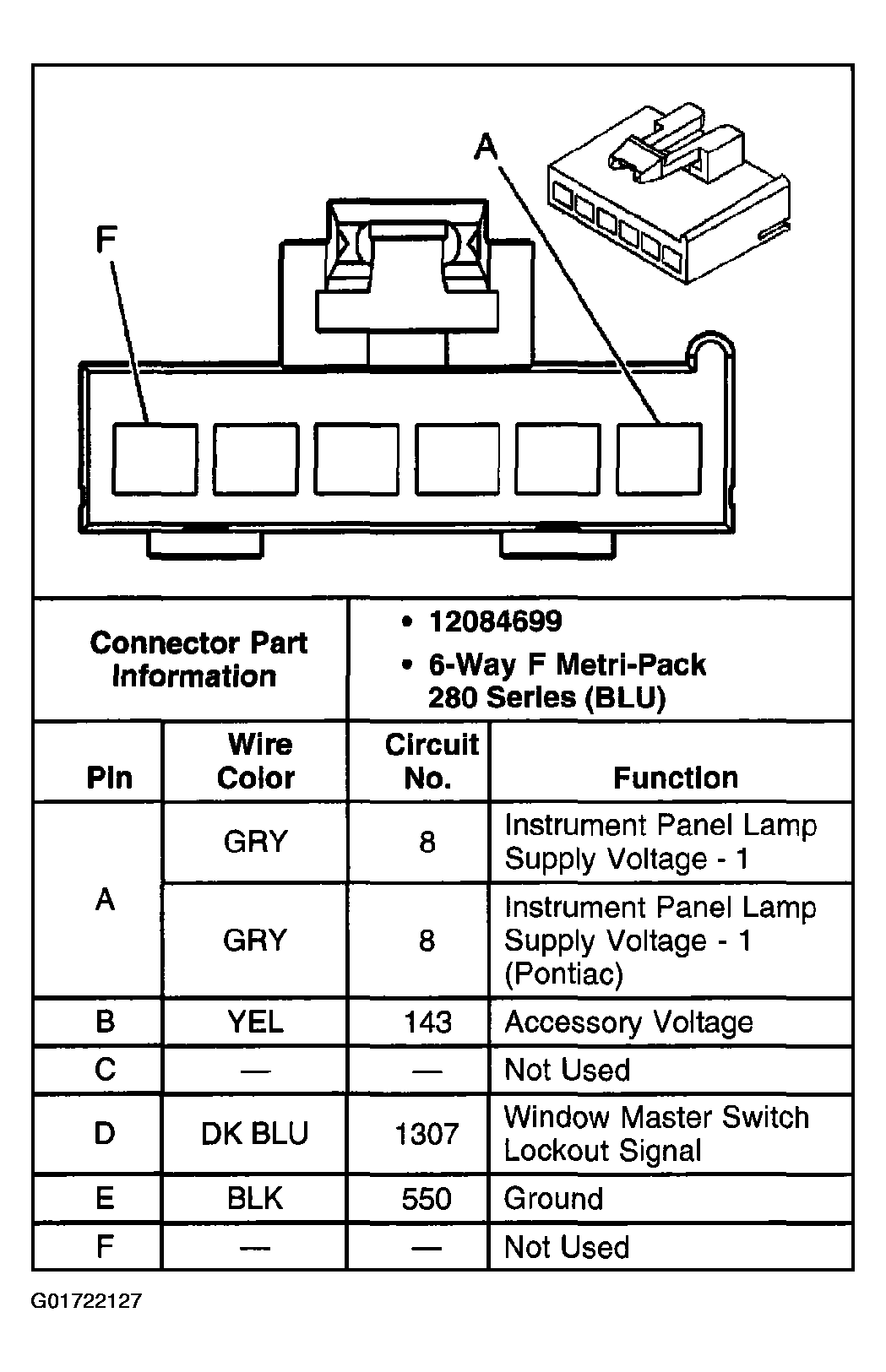

Fig 1: Window Master Switch Connector End View - C1
G01722127Courtesy of GENERAL MOTORS CORP.
