OEM Connector End Views
›
Connector End Views
›
Window Motor Connector End View - Driver
Window Motor Connector End View - Driver

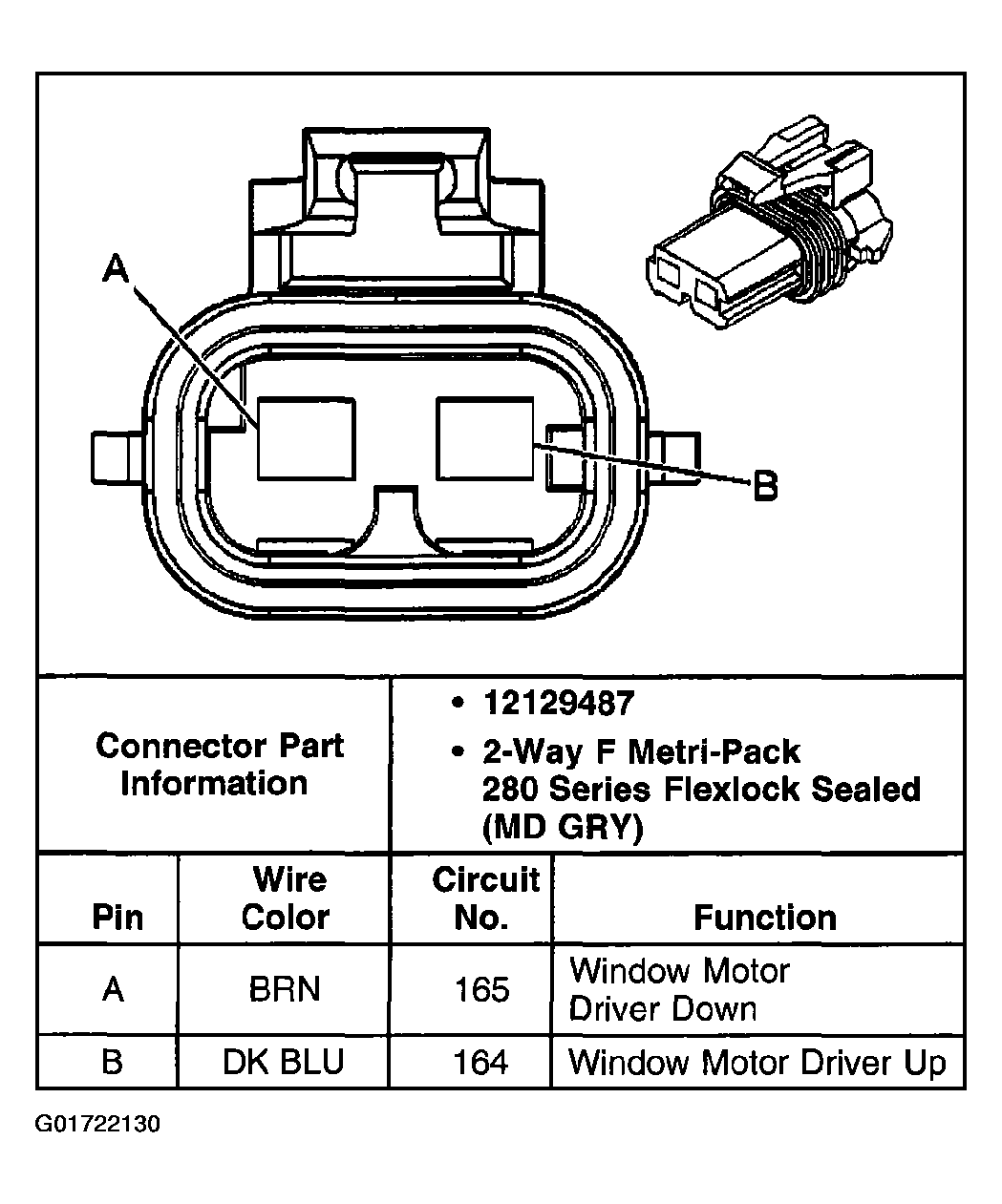

Fig 1: Window Motor Connector End View- Driver
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
