Window Motor Connector End View - LR
Window Motor Connector End View - LR

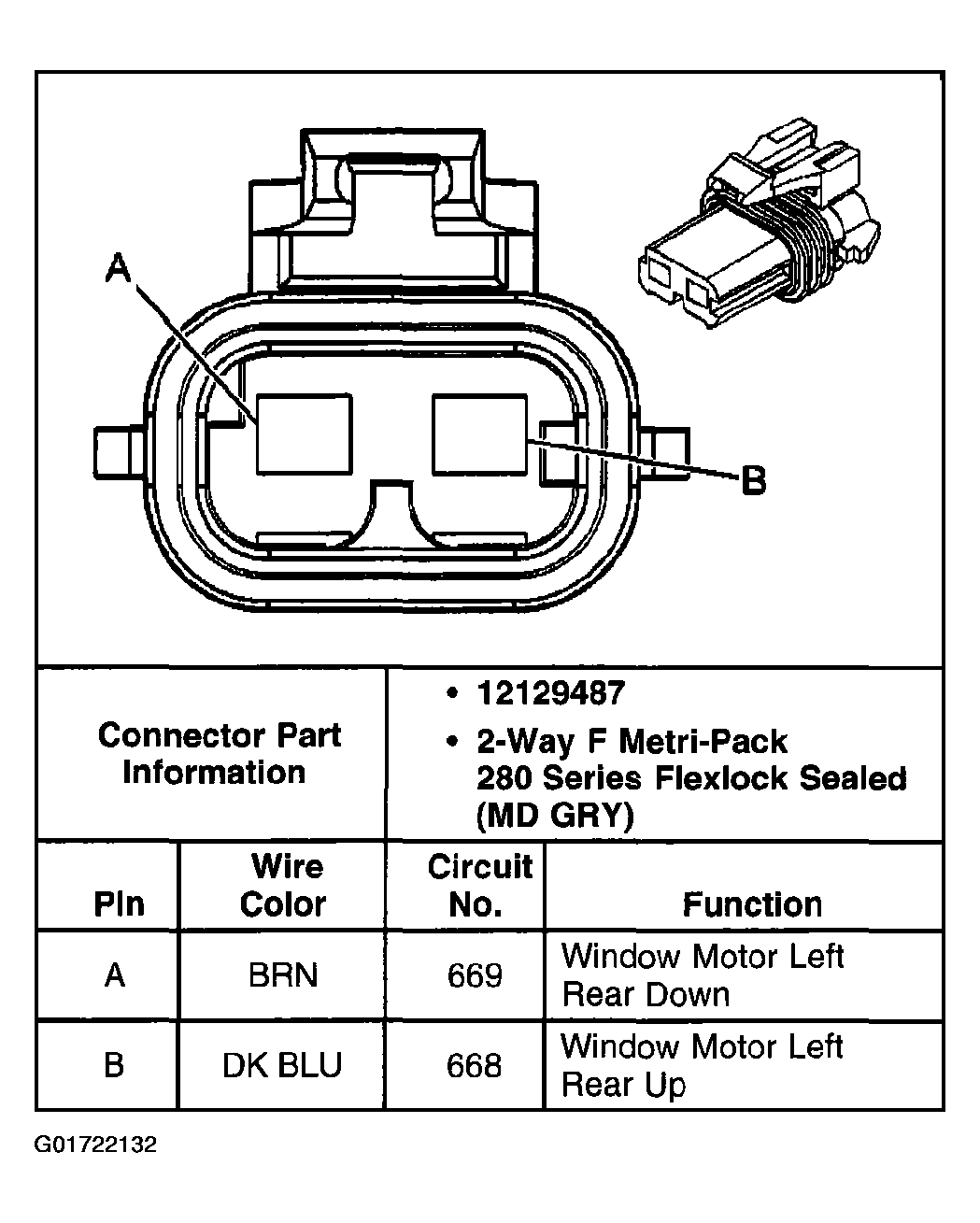

Fig 1: Window Motor Connector End View - LR
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
