Window Switch Connector End View - RR
Window Switch Connector End View - RR

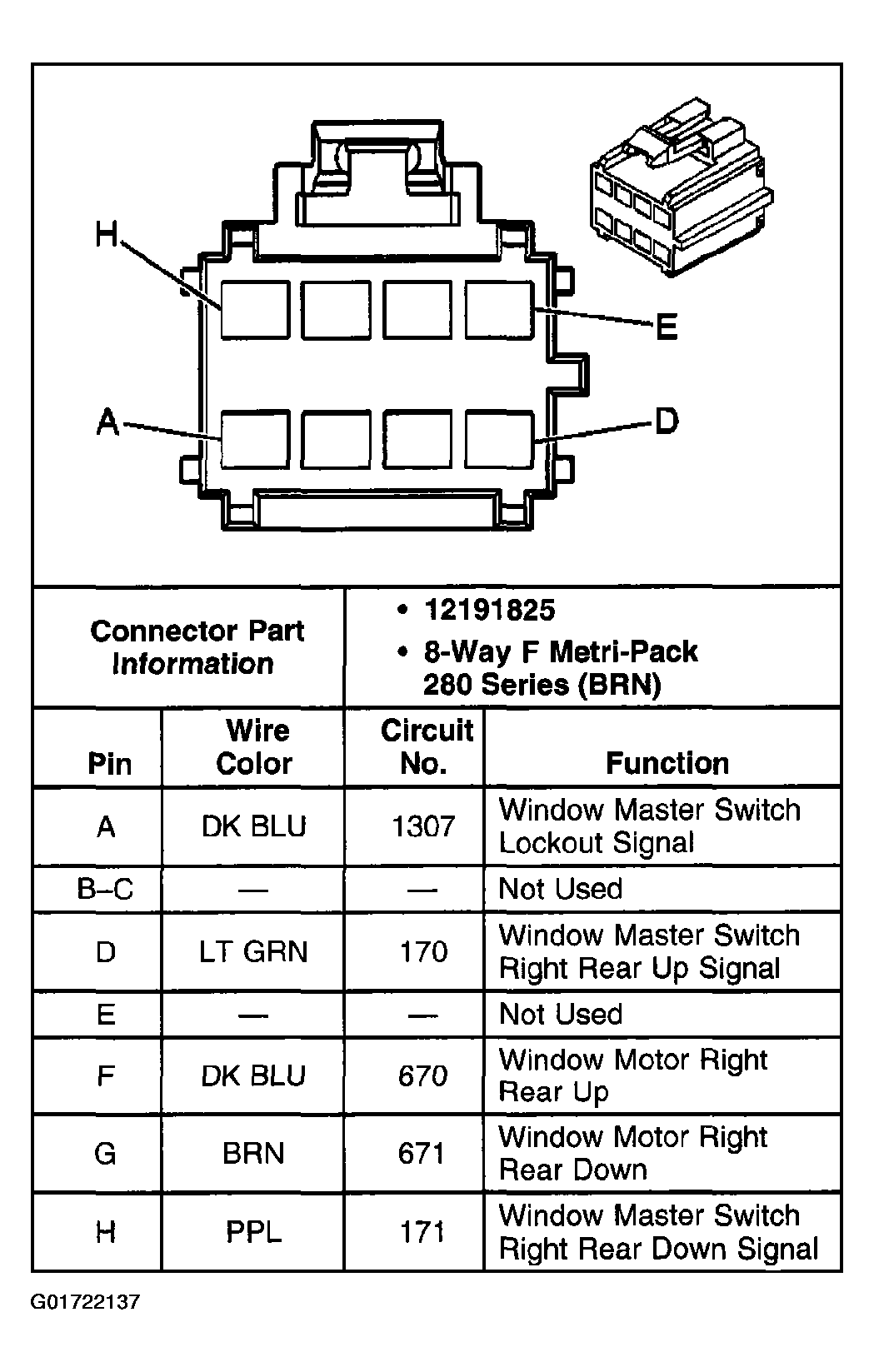

Fig 1: Window Switch Connector End View - RR
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
