Windshield Wiper Motor Connector End View
Windshield Wiper Motor Connector End View

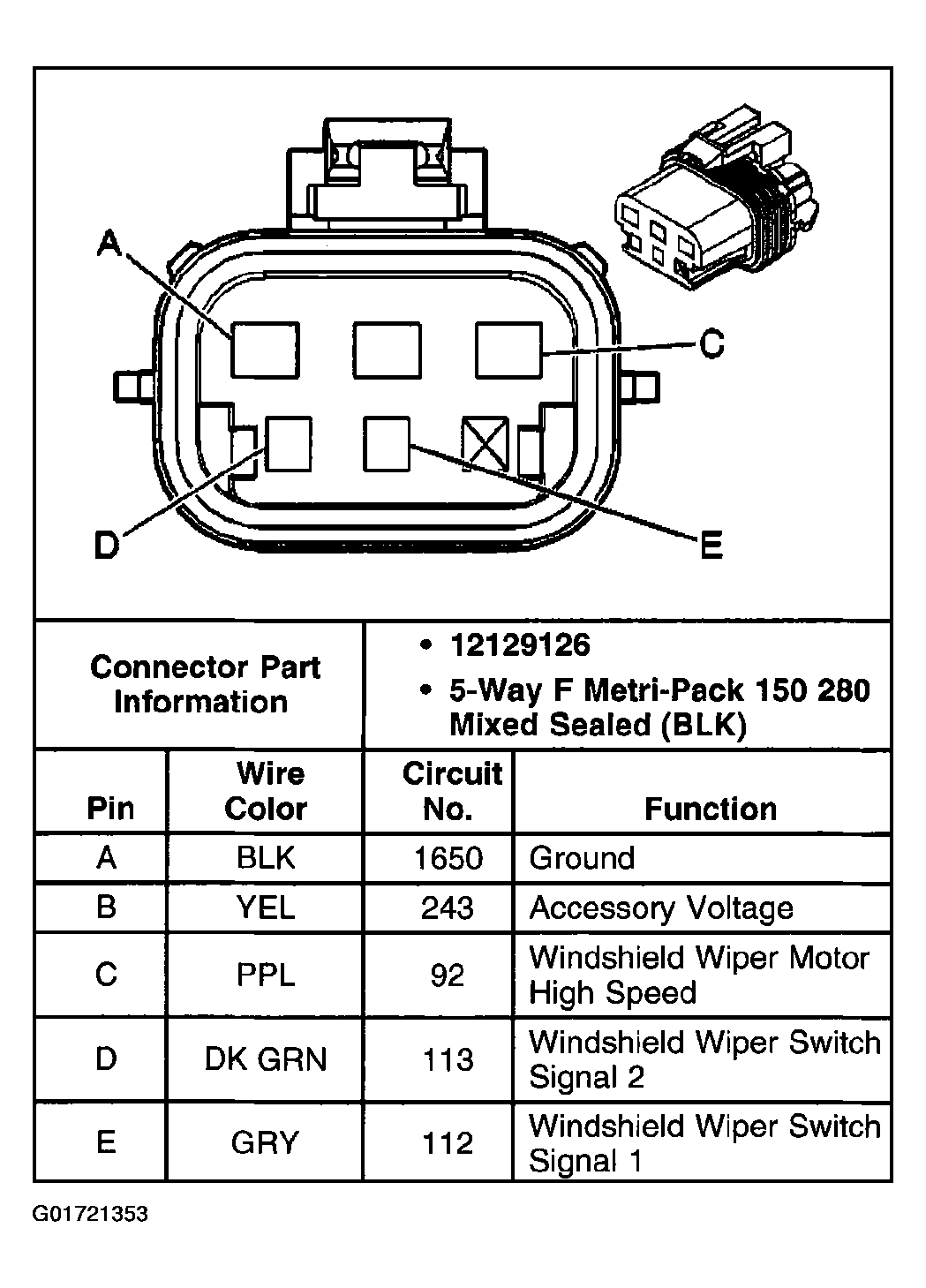

Fig 1: Windshield Wiper Motor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
