Installation Procedure

Snap the IP courtesy lamp into the IP insulator.

Fig 1: Snapping IP Courtesy Lamp
Courtesy of GENERAL MOTORS CORP.
Position the IP insulator to the instrument panel.
Install the push-in retainers to the IP insulator to instrument panel.
Install the press-on retainers to the IP insulator to dash mat.

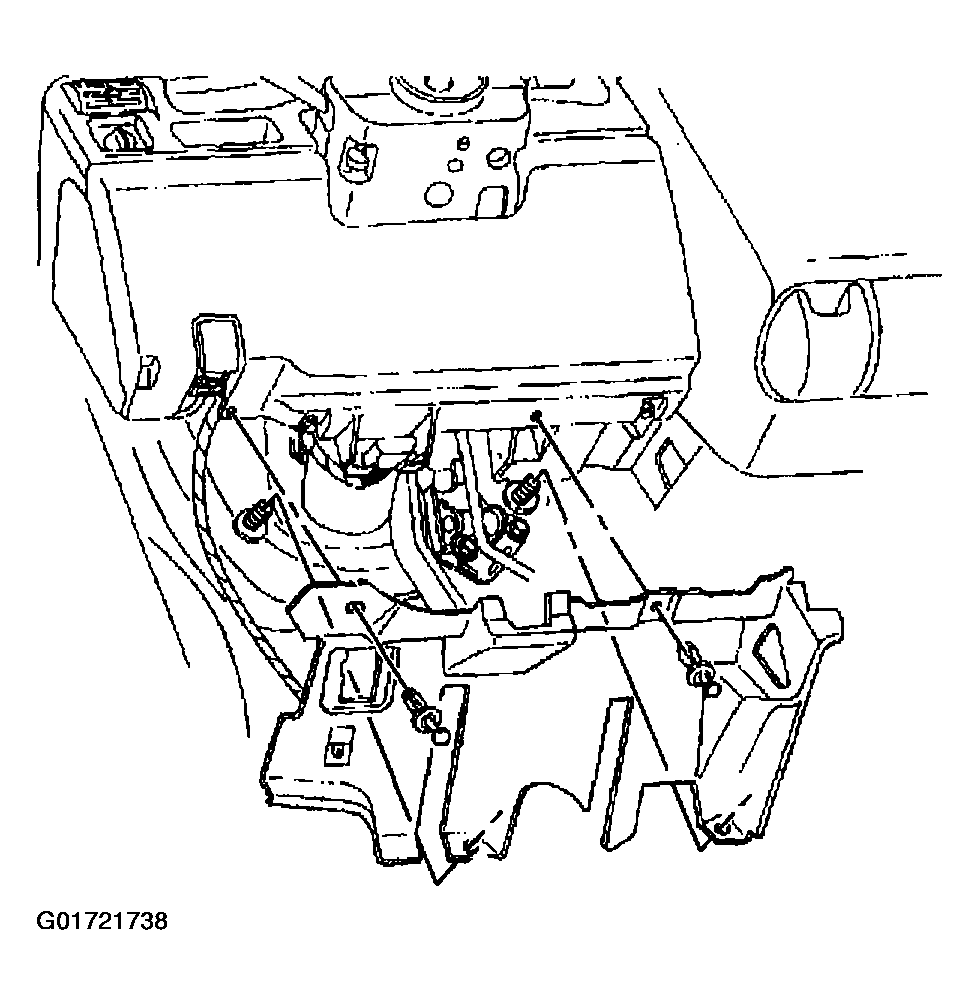

Fig 2: Installing IP Insulator Push-In And Press-On Retainers
Courtesy of GENERAL MOTORS CORP.
