Removal Procedure
CAUTION:
Refer to ELECTRIC COOLANT FAN CAUTION
.
Important: If abnormal noise or vibration is felt from the engine compartment, inspect and clean any foreign material from the cooling fan blades.
- Turn the ignition off.
- Remove the cooling fans with the cooling fan shroud. Refer to Cooling Fan Replacement - Electric .
Important: Turn the cooling fan nut clockwise to loosen.

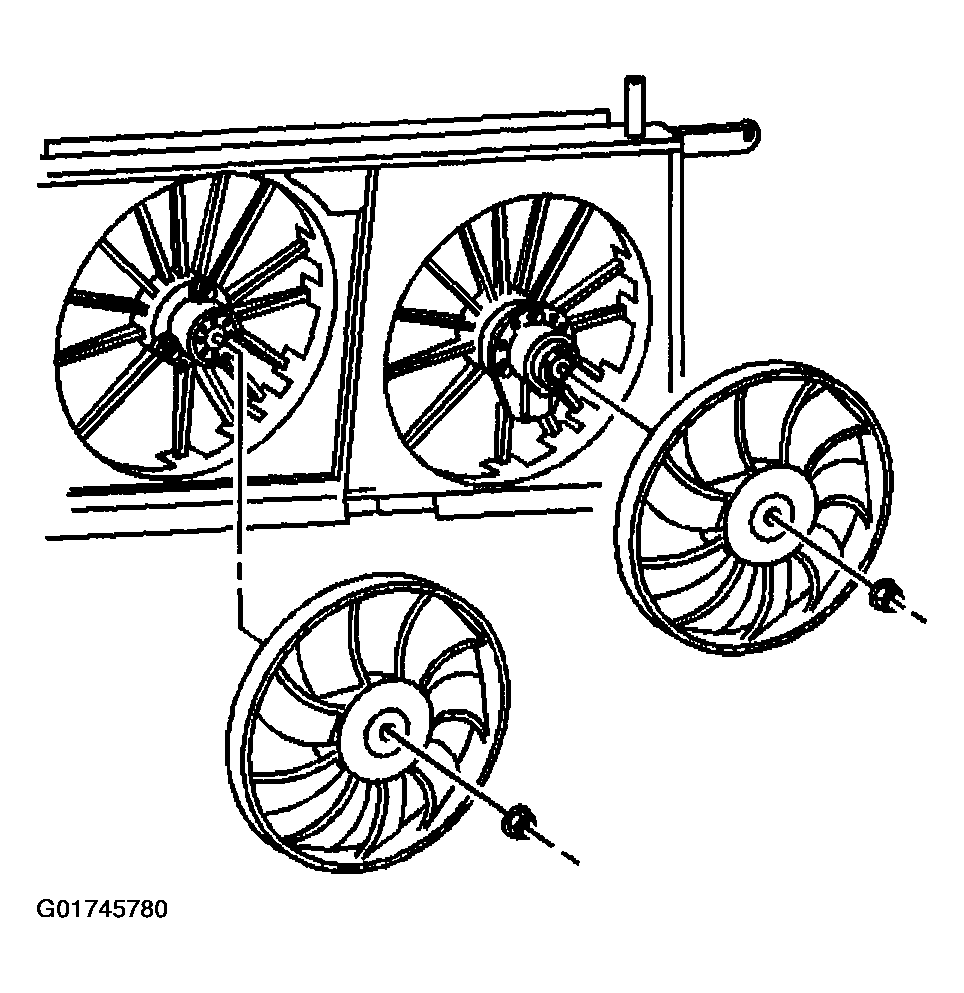

- Remove the cooling fan nut.
- Remove the cooling fan.
