Installation Procedure

Remove the right engine mount strut. Refer to Engine Mount Strut Replacement - Right
Install the J 45057 to the right engine mount strut bracket (1).

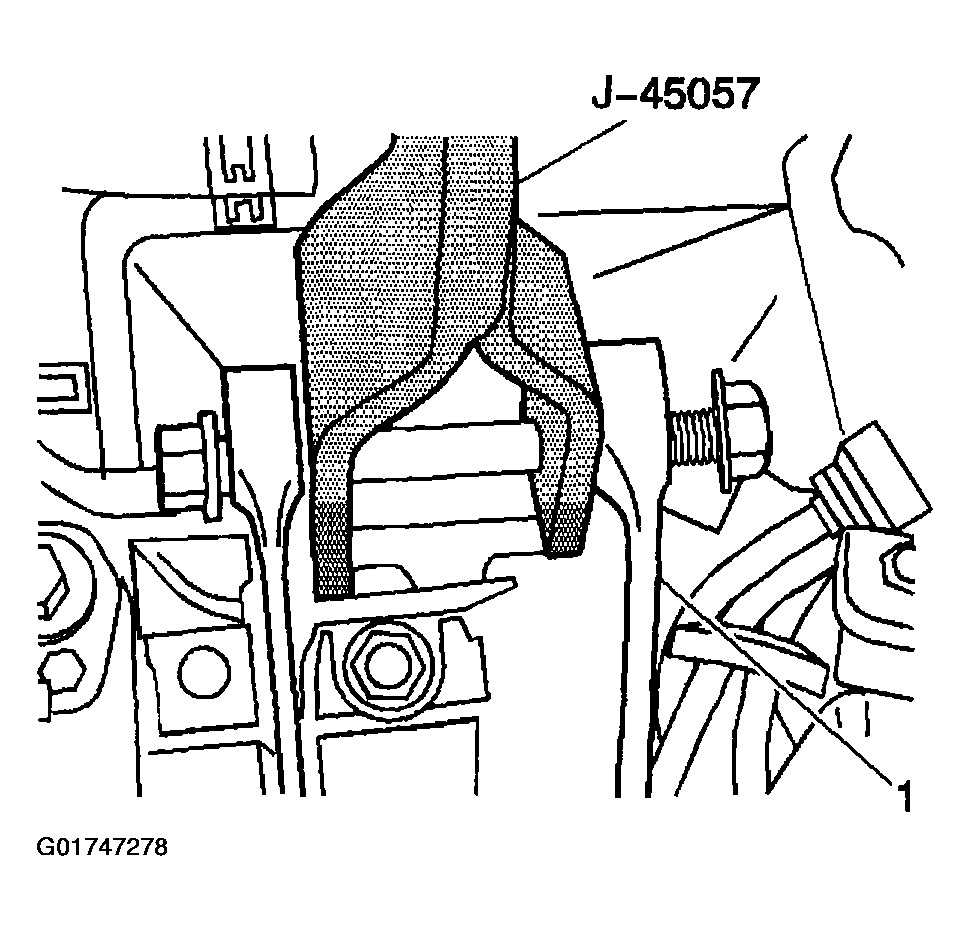

Fig 1: Engine Support Bar Assembly (Right)
Courtesy of GENERAL MOTORS CORP.
Install the J 45057 to the left side engine lift bracket.

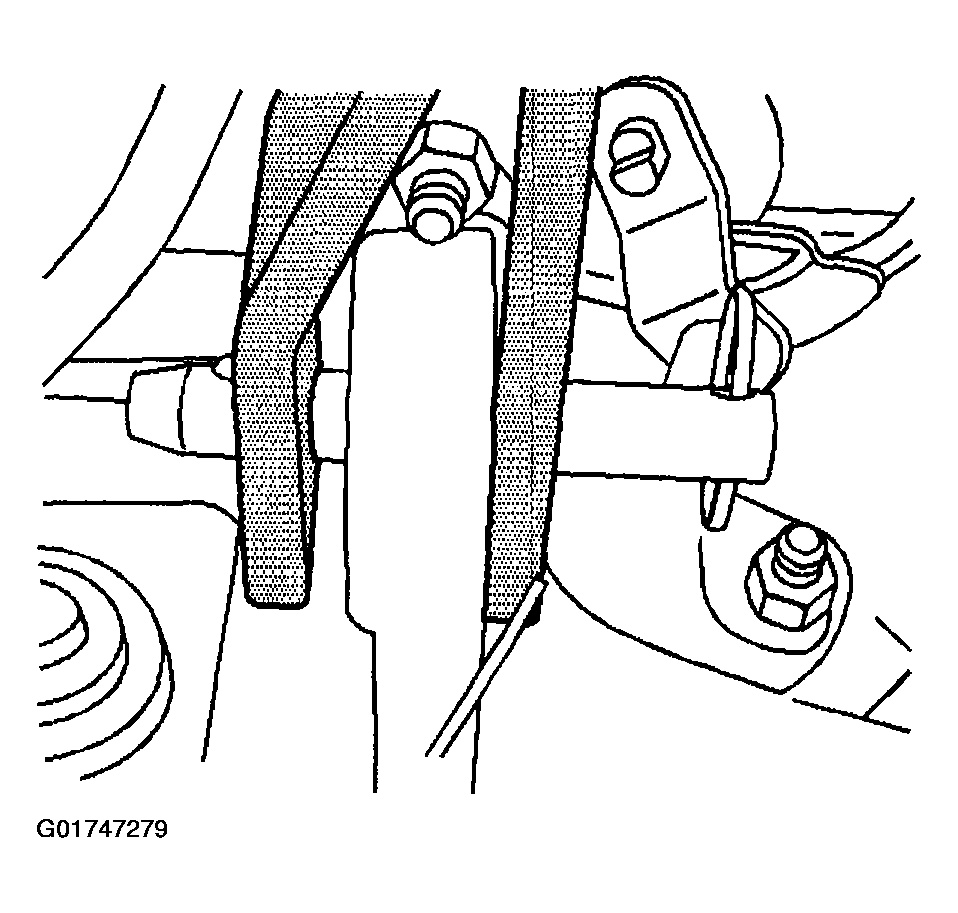

Fig 2: Engine Support Bar Assembly (Left)
Courtesy of GENERAL MOTORS CORP.
Install the J 45057 to the right rear engine lift bracket.

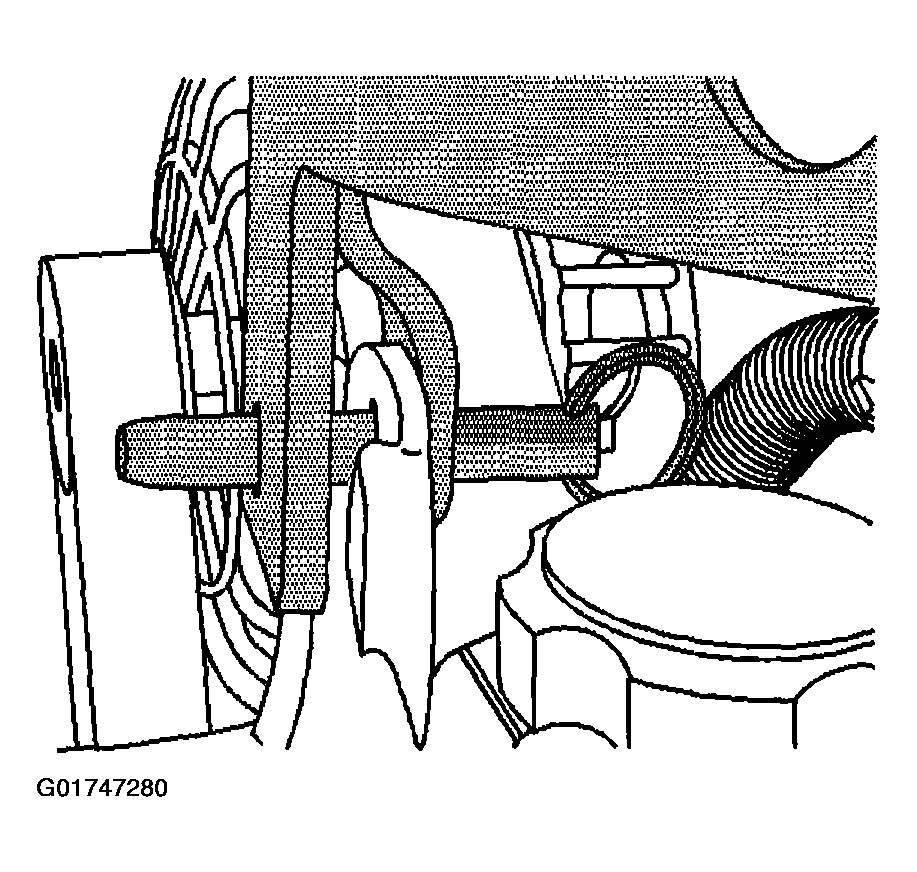

Fig 3: Engine Support Bar Assembly (Right Rear)
Courtesy of GENERAL MOTORS CORP.
Remove the headlamps.
Disconnect the hood strut assist rods from the fenders.
Carefully open and secure the hood in 90 degree position.
Install the J 28467-B.

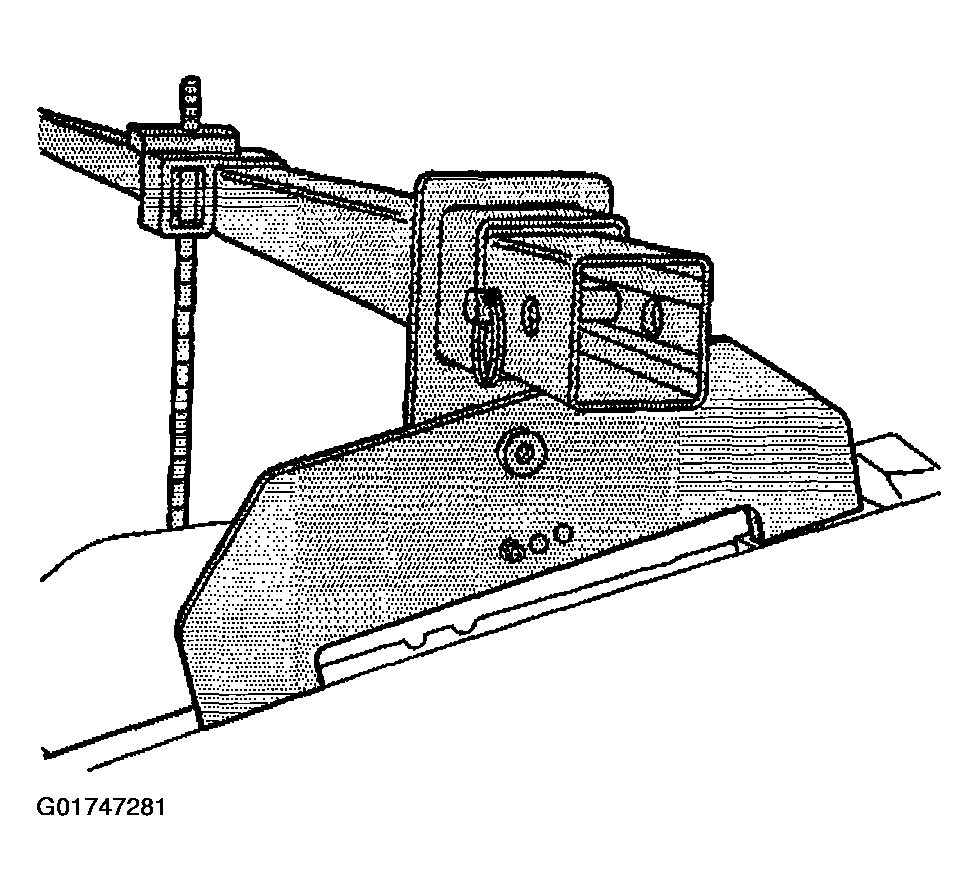

Fig 4: Installing J 28467-B.
Courtesy of GENERAL MOTORS CORP.
Install the J28467-7A (1) and the J28467-34 to the J 28467-500 and the rear hole on the right side of the J-45057 (2).

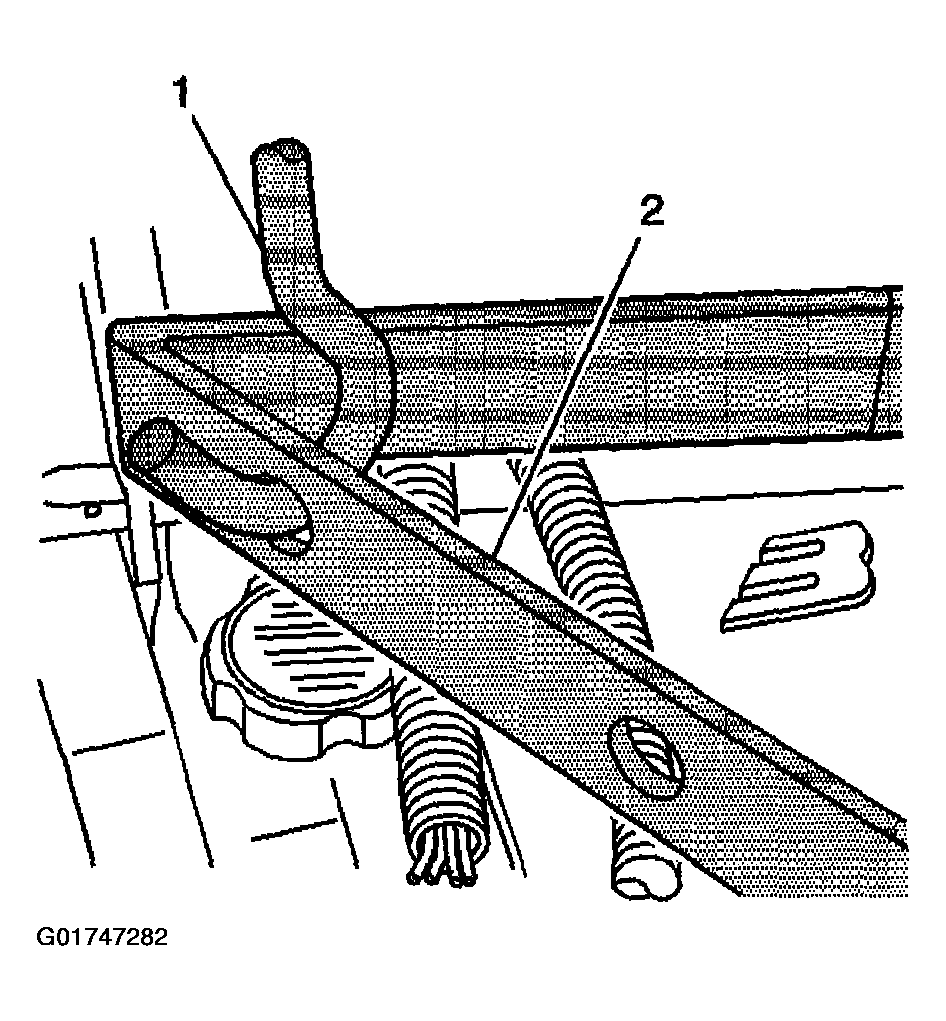

Fig 5: Installing J28467-7A (1) & J-45057 (2) - (Right Side)
Courtesy of GENERAL MOTORS CORP.
Install the J 28467-7A (1) and the J 28467-34 to the J 28467-500 and the left side of the J 45057 (2).

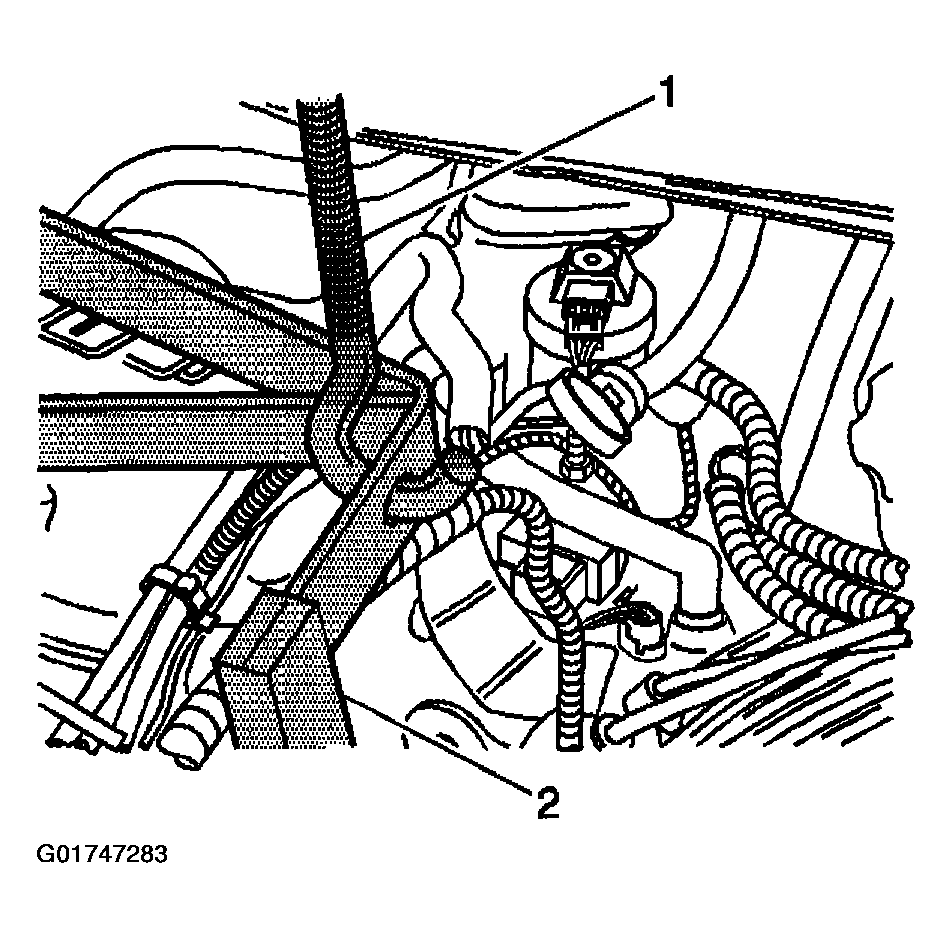

Fig 6: Installing J28467-7A (1) & J-45057 (2) - (Left Side)
Courtesy of GENERAL MOTORS CORP.
Gently tighten the J 28467-34 lift hook wing nuts.
Raise the vehicle.
Remove the lower air baffle assembly.
Remove the engine mount bolt.
Install the J 45057-2 to the core support.

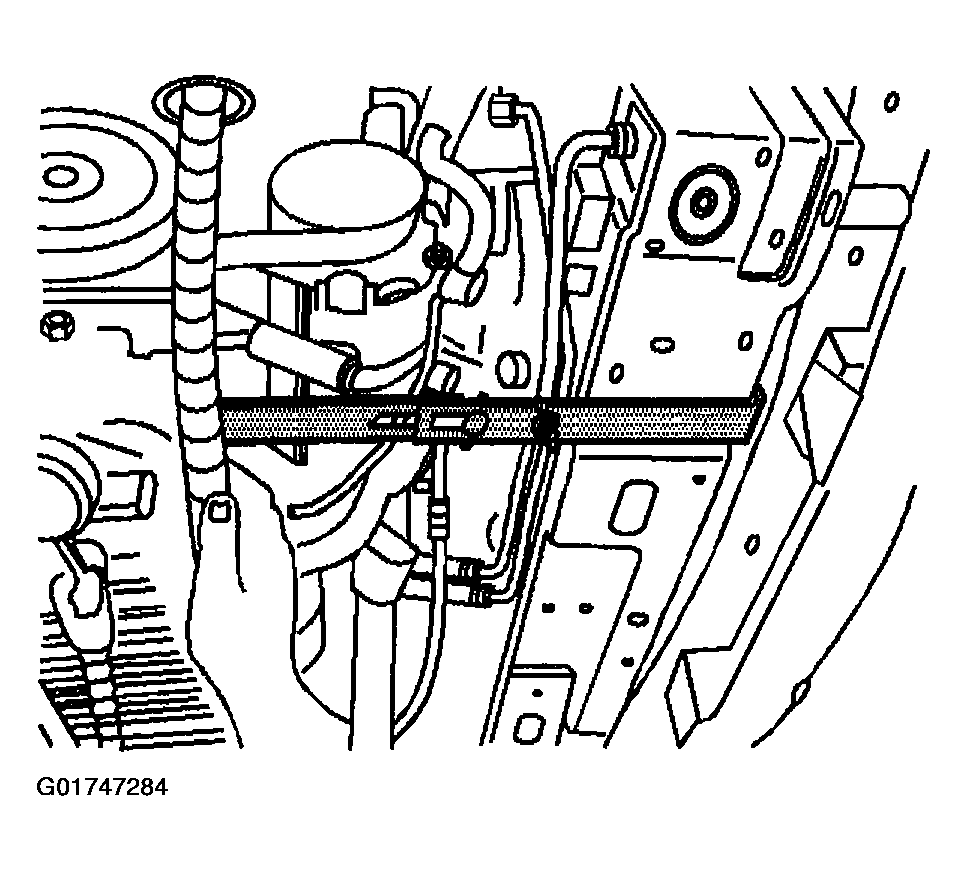

Fig 7: Installing J 45057-2 To Core Support
Courtesy of GENERAL MOTORS CORP.
Install the J 45057-2 to the engine using the engine mount bolt.

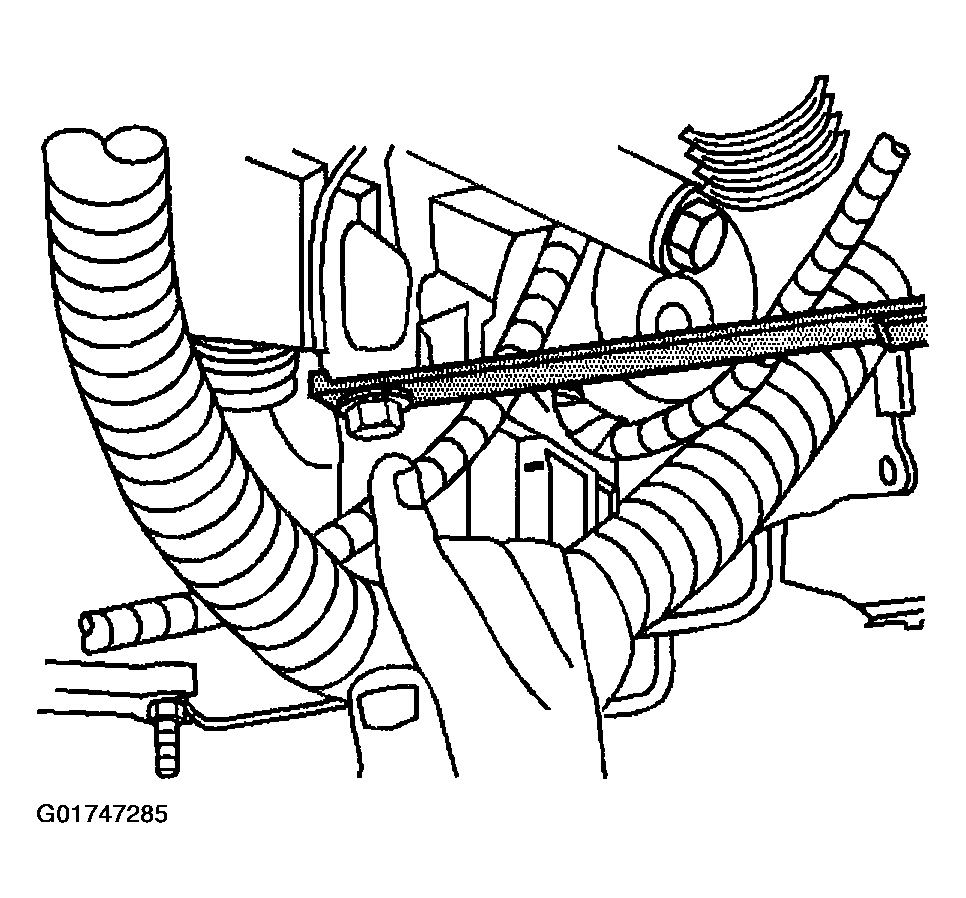

Fig 8: Installing J 45057-2 To Engine
Courtesy of GENERAL MOTORS CORP.
Assemble the J 45057-2 and hand tighten the fasteners.

Fig 9: Hand Tighten Fasteners
Courtesy of GENERAL MOTORS CORP.
