Engine Flywheel Removal

  1. Remove the flywheel bolts.
  2. Remove the flywheel retainer.
  3. Remove the flywheel.

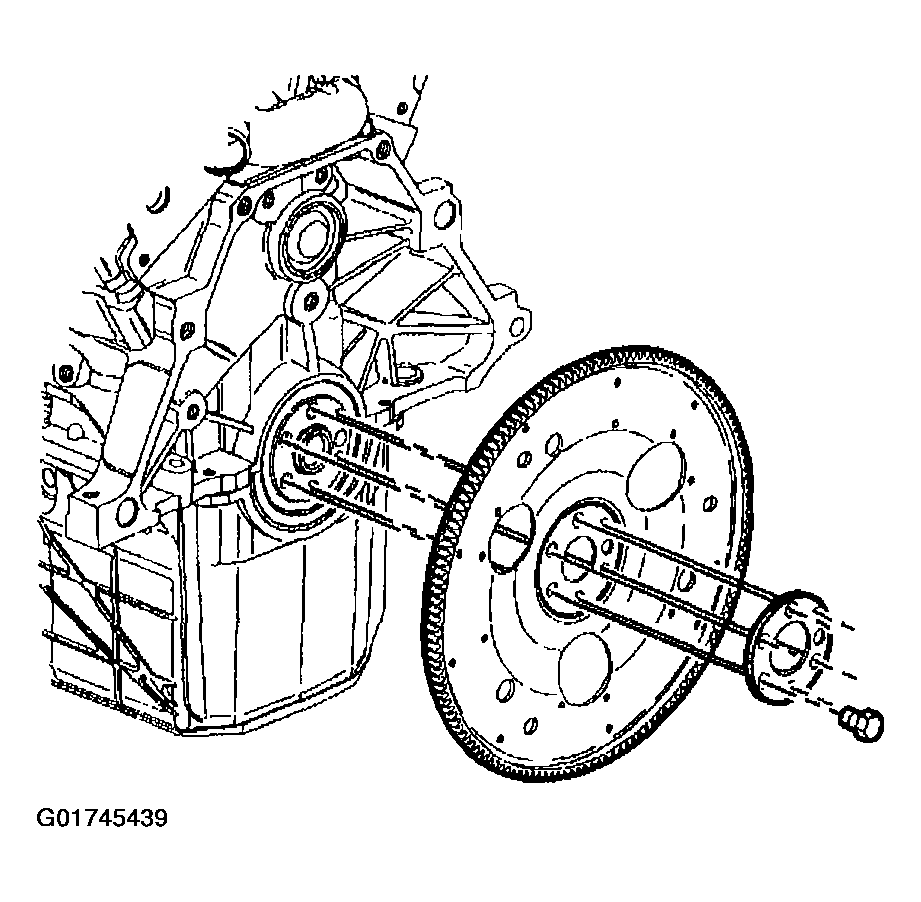

    Fig 1: Removing The Flywheel Bolts
    G01745439Courtesy of GENERAL MOTORS CORP.
