Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the front door speaker.
  2. Install the front door speaker to the front door.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws to the front door speaker.

    Tighten

    Tighten the front door speaker screws to 2 N.m (18 lb in).

  4. Install the front door inner trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR in Doors.

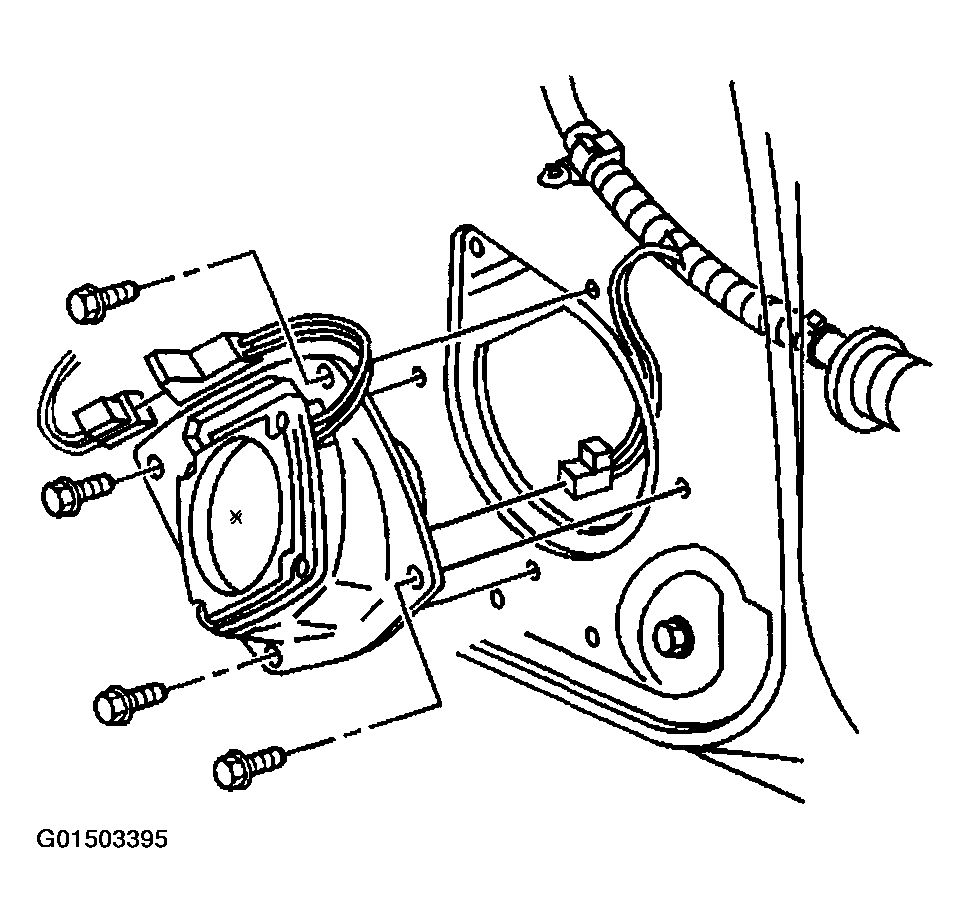

    Fig 1: Installing Front Door Speaker To Front Door
    G01503395Courtesy of GENERAL MOTORS CORP.
