Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Position the weather-strip to the pinch-weld flange.
Start at the passenger side corner, with a pressing motion, work toward the center of the car.
Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
Close the hood.

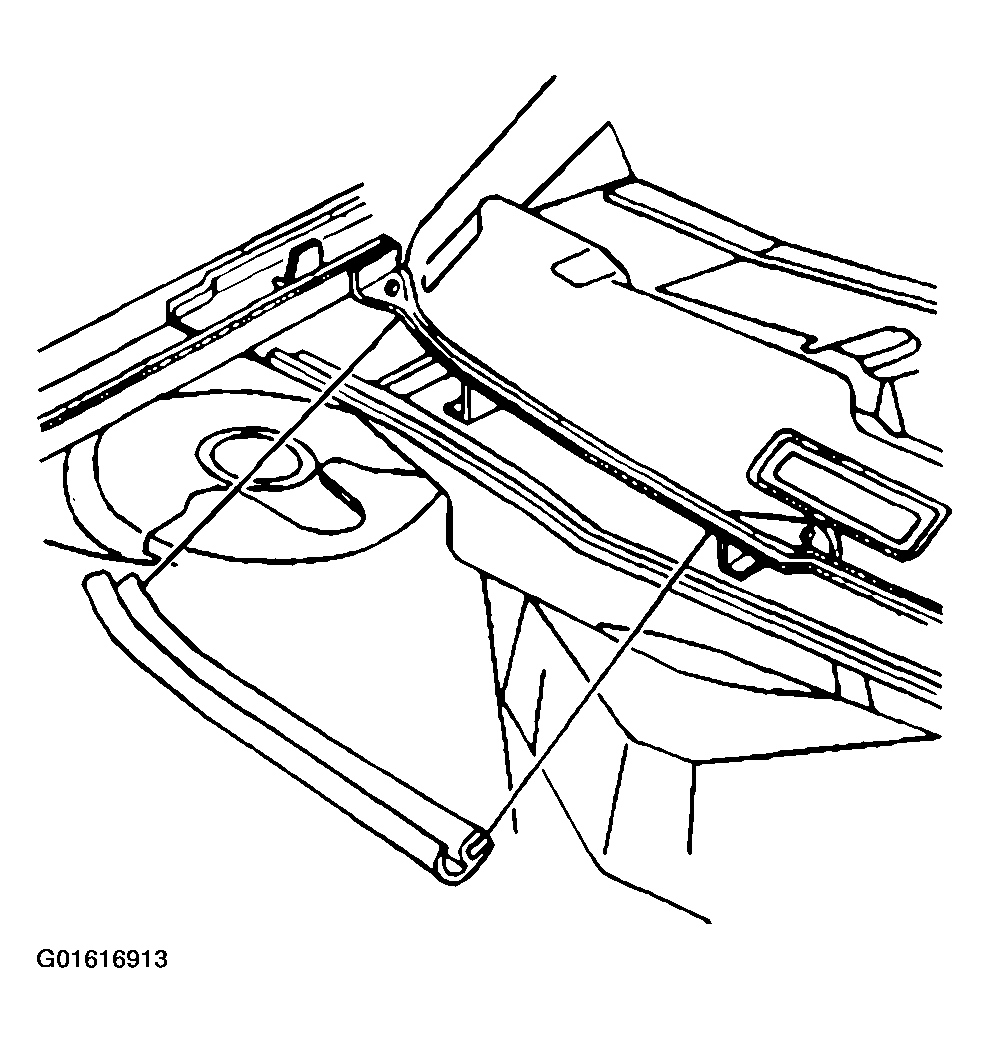

Fig 1: Plenum Chamber Water Deflector
Courtesy of GENERAL MOTORS CORP.
